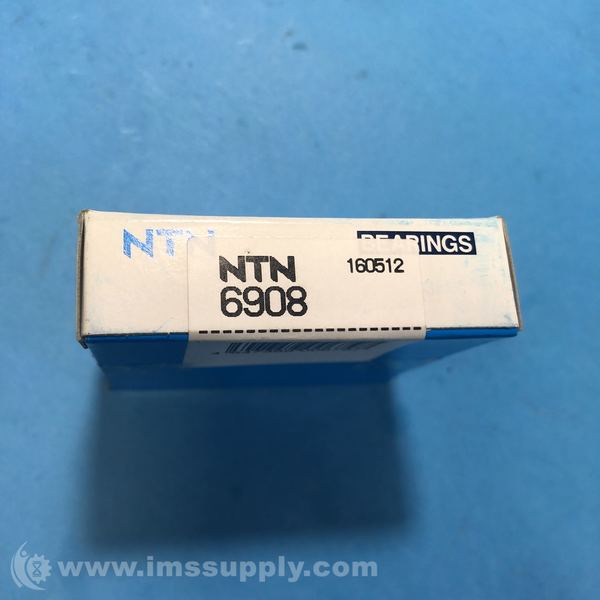

NTN 6908 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 6908
IMS Product Code: 1922032
Packaging: Sold Individually
Description:
NTN 6908 Deep Groove Ball Bearing
Single Row Radial Ball Bearing - Open Type
Specifications
- Type: Deep Groove Ball Bearing
- Bore Type: Round
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Oil: 13000 RPM
- Limiting Speed - Grease: 11000 RPM
- Configuration: One
- Radial Internal Clearance: CN
- Static Load Rating: 2001 lbf, 8900 N, 8.90 kN
- Dynamic Load Rating: 3035 lbf, 13500 N, 13.50 kN
- Enclosure: Open
- Weight: 0.249 lb, 0.110 kg, 110g
- Operating Temperature Range: -40 to 250 F, -40 to 120 C
- Inner Diameter: 1.5750 in, 40.000 mm, 40mm
- Outer Diameter: 2.4409 in, 62.000 mm, 62mm
- Height: 0.4724 in, 12.000 mm, 12mm
- r: 0.0236 in, 0.600 mm
- r1: 0.0197 in, 0.500 mm
- da min: 1.7323 in, 44.000 mm
- Da max: 2.2835 in, 58.000 mm
- ras max: 0.0236 in, 0.600 mm
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 4 In Stock
Ships today if ordered in the next 13 hours and 21 minutes.
