More Views

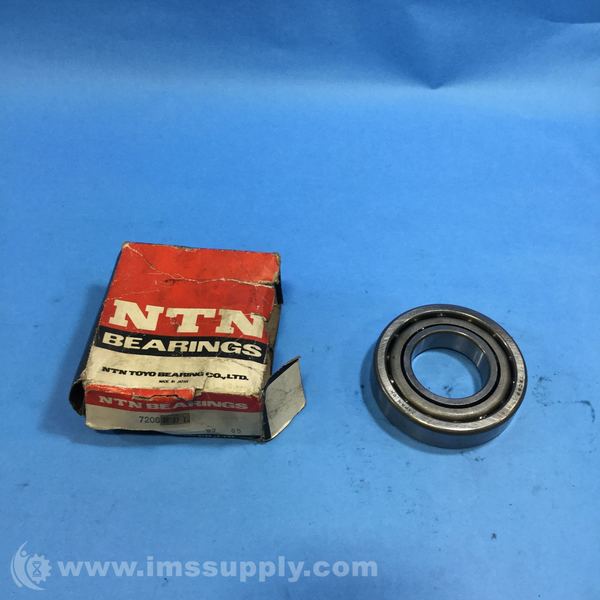

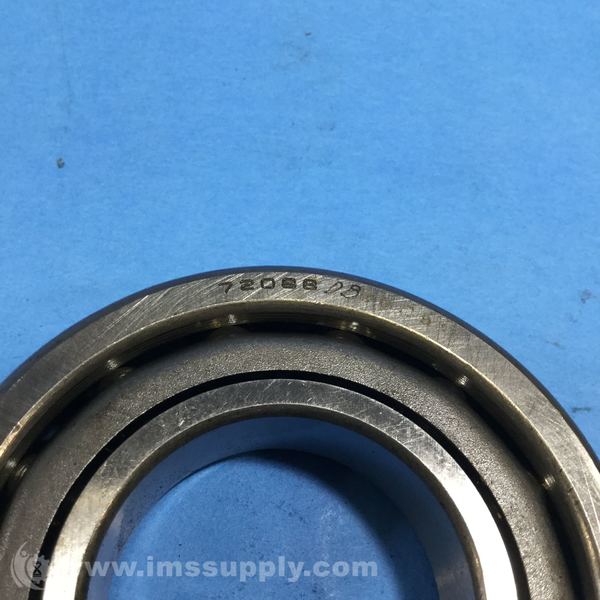

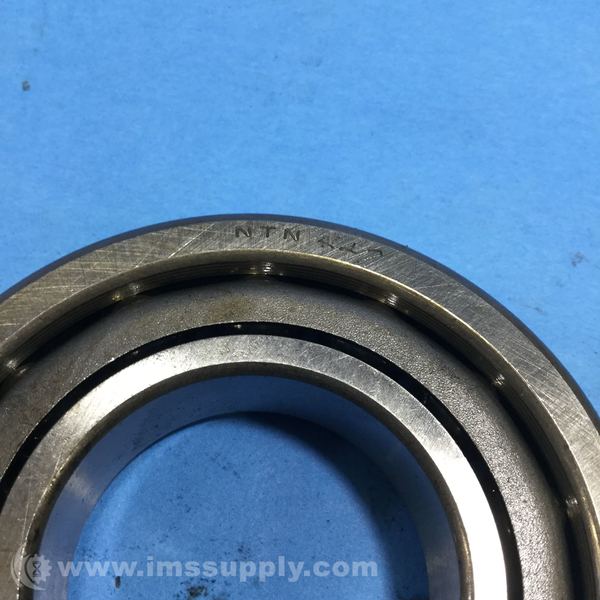

NTN 7208B ANGULAR CONTACT BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: 7208B
IMS Product Code: 1797908
Packaging: Sold Individually
Description:
NTN 7208B Angular Contact Ball Bearing
Single row, open type, angular contact ball bearing.
Specifications
- Type: Angular Contact Ball Bearing
- Material: High Carbon Chrome Steel
- Cage Type: Pressed
- Cage Material: Steel
- Ball Material: Steel
- Limiting Speed - Oil: 11000 RPM
- Limiting Speed - Grease: 8300 RPM
- Precision: ISO Class 0
- Configuration: One
- Radial Internal Clearance: CN
- Static Load Rating: 23000 N
- Dynamic Load Rating: 32000 N
- Enclosure: Open
- Weight: 0.380 kg
- Operating Temperature Range: -40 to 120 degrees C
- Bore Diameter: 40 mm
- Outside Diameter: 80 mm
- Width: 18 mm
- Contact Angle: 40 degrees
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 34 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 34 minutes.
