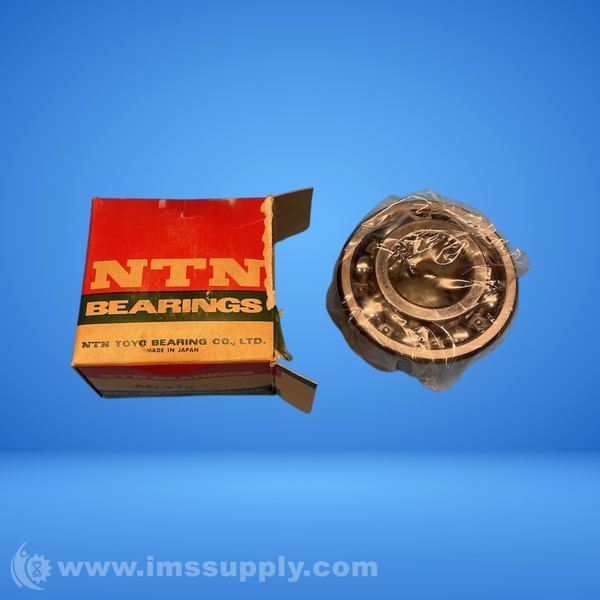

NTN AEL210 BALL INSERT BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: AEL210
IMS Product Code: 2148743
Packaging: Sold Individually
Description:
NTN AEL210 Ball Insert Bearing
Ball Insert Bearing - Straight Bore, 50 mm Bore Diam., 3.5433 in OD, 1.7205 in Width, Standard Duty, Eccentric Collar Locking
Specifications
- Bore Type: Cylindrical
- Bore Diameter: 50 mm
- Outside Diameter: 3.5433 in
- Internal Clearance: CN
- Overall Width: 1.7205 in
- Outer Ring Width: 0.7874 in
- Duty Type: Standard Duty
- Inner Ring Width: 1.1890 in
- Locking Device: Eccentric Collar
- Closure Type: Sealed
- Operating Temperature Range: -40 to 250 F
- Fillet Radius: 0.0787 in
- Radial Dynamic Load Capacity: 9800 lbf
- Radial Static Load Capacity: 5200 lbf
- Bearing Material: Through Hardened Steel
- Max Rpm: 3100 rpm
- Seal Type: Contact
- Weight: 1.795 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 6 hours and 33 minutes.
