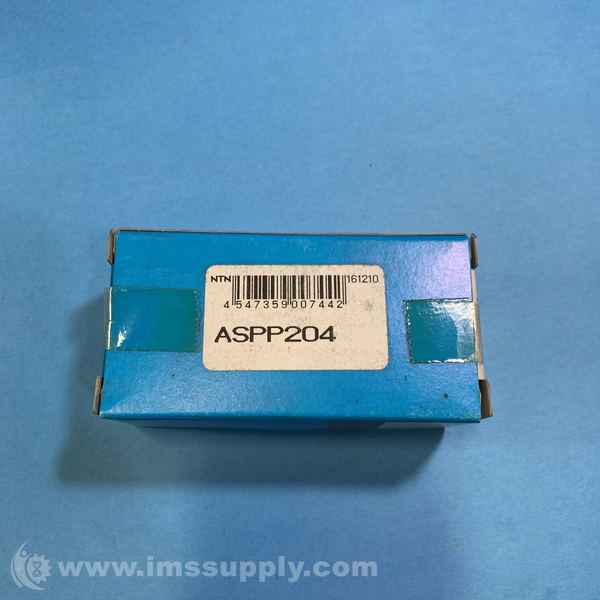

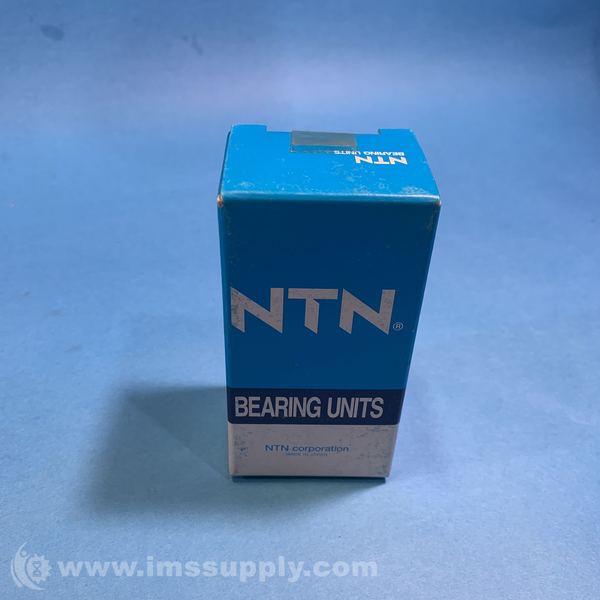

NTN ASPP204 PILLOW BLOCK UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: ASPP204
IMS Product Code: 1862483
Packaging: Sold Individually
Description:
NTN ASPP204 Pillow Block Unit
Pillow Block Unit with Set Screw locking device, Pressed Steel housing, ASPP type, for Ball Bearing AS204.
Specifications
- Type: Pillow Block Unit
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: AS204
- Housing Number: PP204
- Housing Material: Pressed Steel
- Housing Construction: 1 Piece
- End Type: Open
- Performance: Light Duty
- Dynamic Load Rating: 2880 lbf, 12800 N, 12.80 kN
- Static Load Rating: 1500 lbf, 6650 N, 6.65 kN
- Max. Load Recommended - Axial: 200 lbf, 1000 N
- Max. Load Recommended - Radial: 550 lbf, 2500 N
- Rotational Speed [Max]: 6700 RPM
- Weight: 0.400 lb, 0.200 kg
- Operating Temperature Range: -40 to 250 F, -40 to 120 C
- Lubrication: Non-Relubricatable
- d: 0.7874 in, 20.000 mm
- J: 3.0000 in, 76.0 mm
- L: 3.8437 in, 98.0 mm
- A: 1.2500 in, 32.0 mm
- H: 1.0000 in, 25.4 mm
- H1: 0.1260 in, 3.2 mm
- H2: 2.0000 in, 50.5 mm
- N: 0.3750 in, 9.5 mm
- B: 0.9843 in, 25.000 mm
- S: 0.2756 in, 7.000 mm
- Ball Material: Through Hardened
- Outside Diameter: 1.8500 in, 47.000 mm
- Bore Type: Cylindrical
- Clearance: CN
- Cage Material: Pressed Steel
- Precision Rating: ISO Class 0
- Radial Dynamic Load Rating: 2878 lbf, 12800 N
- Rotational Speed [Max]-Grease: 6650.0 RPM
- Radial Static Load Rating: 1495 lbf, 6650 N
- Mounting Type: 2-Bolt Base
- Bore Diameter: 20 mm
- Bolt Center To Center Length: 3.0000 in
- Base To Bore Centerline: 1.0000 in
- Duty Type: Light Duty
- Expansion Type: Non-Expansion Bearing (Fixed)
- Overall Length: 98 mm
- Base Width: 1.2500 in, 32.0 mm
- Overall Width: 34 mm
- Finish Coating: Uncoated
- Radial Dynamic Load Capacity: 2890 lbf
- Radial Static Load Capacity: 1500 lbf
- Max Rpm: 6700 rpm
- Lubrication Type: Non-Relubricatable
- Series: ASPP2
- Replacement Bearing: AS204
- Type Of Bearing: Ball Bearing
- Housing Construction: Solid
- Standards Met: AFBMA, ANSI, ISO
- Locking Type: Set Screw
- Number Of Mounting Holes: 2
