NTN UCF204 4-BOLT SQUARE FLANGED UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UCF204
IMS Product Code: 1960496
Packaging: Sold Individually
Description:

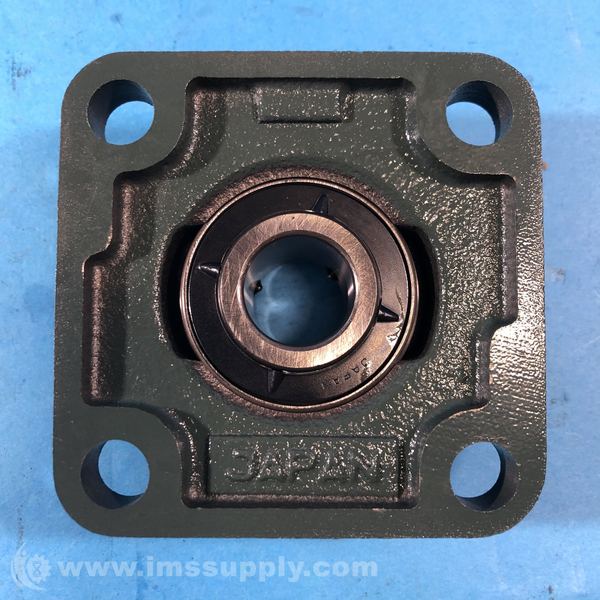

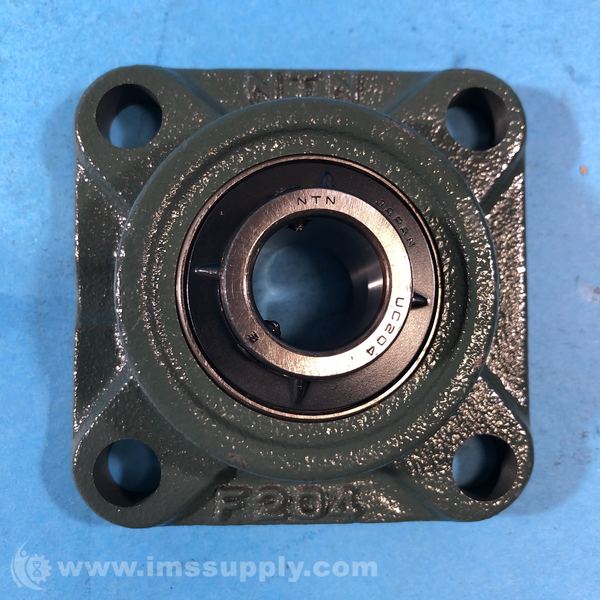

NTN UCF204 4-Bolt Square Flanged Unit
4-Bolt Square Flanged Unit with Ball Bearing, Set Screw Locking Device, Cast Iron Housing, Contact Seal with Nitrile Rubber
Specifications
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: UC204

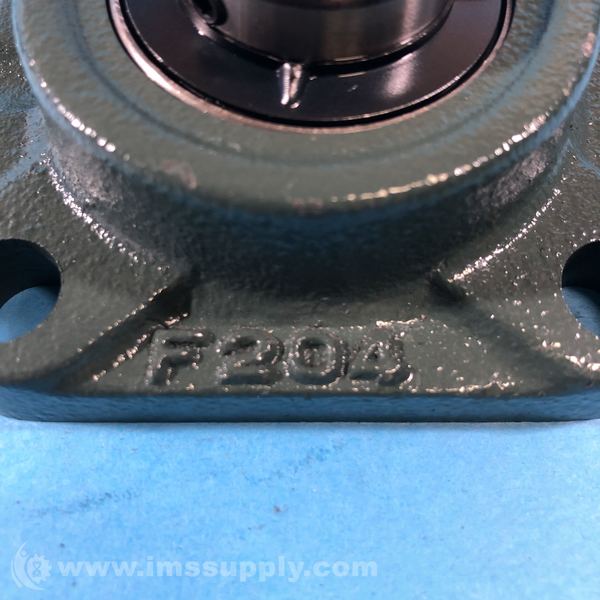

- Housing Number: F204
- Housing Material: Cast Iron
- Housing Construction: 1 Piece
- Dynamic Load Rating: 12800 N
- Static Load Rating: 6650 N
- Rotational Speed [Max]: 6700 RPM
- Weight: 0.570 kg
- Operating Temperature Range: -40 to 120 degrees C
- Lubrication: Non-Relubricatable
- d: 20.000 mm
- L: 86.0 mm
- J: 64.0 mm
- A: 25.5 mm
- A0: 33.300 mm
- A1: 11.0 mm
- A2: 15.0 mm
- N: 12.0 mm
- B: 31.000 mm
- S: 12.700 mm
- Bolt Center-to-Center Length: 64 mm
- Bolt Circle Diameter: 64 mm
- Bore Diameter: 20 mm
- Flange Mounting Type: 4-Bolt Square
- Series: UCF2
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 15 hours and 14 minutes.
