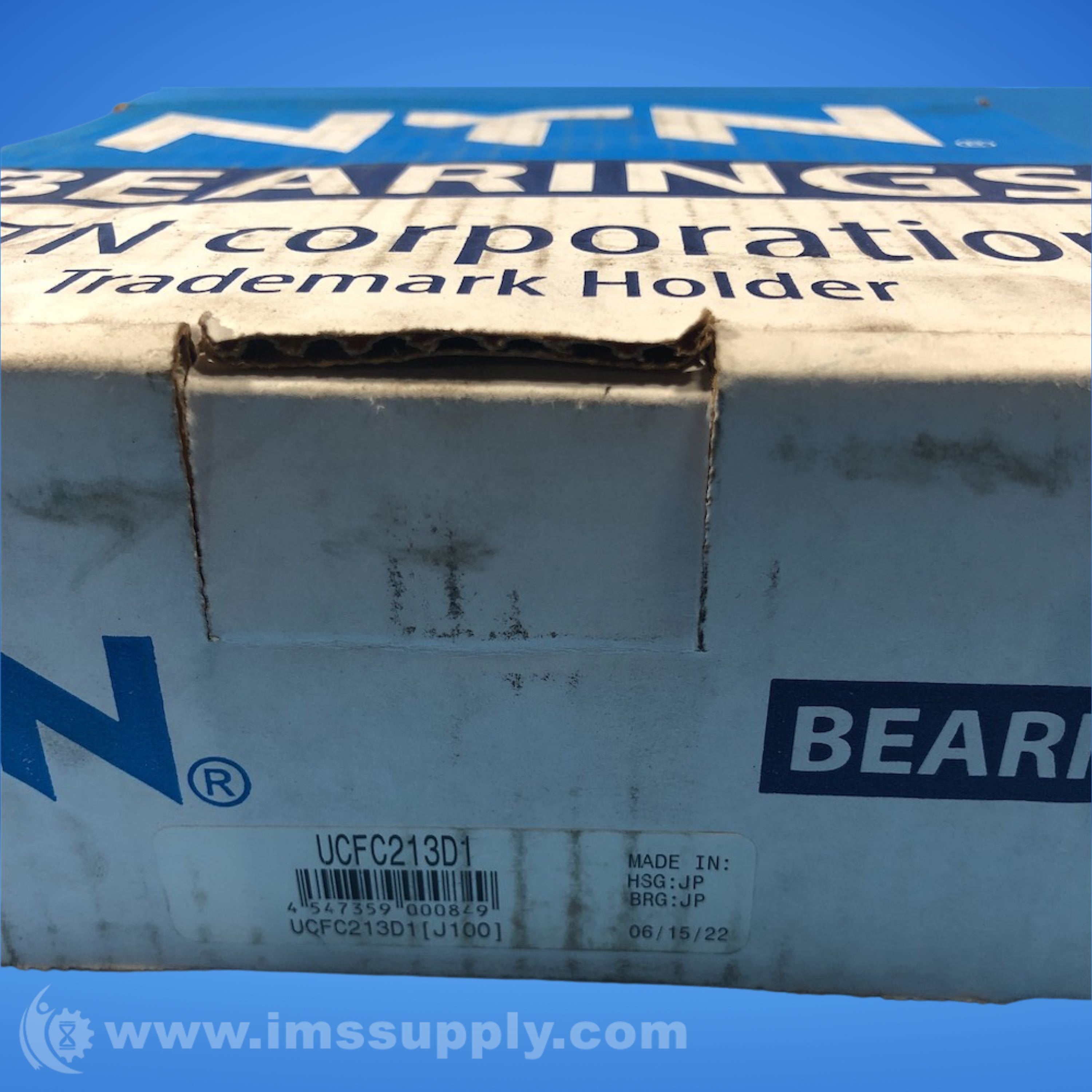

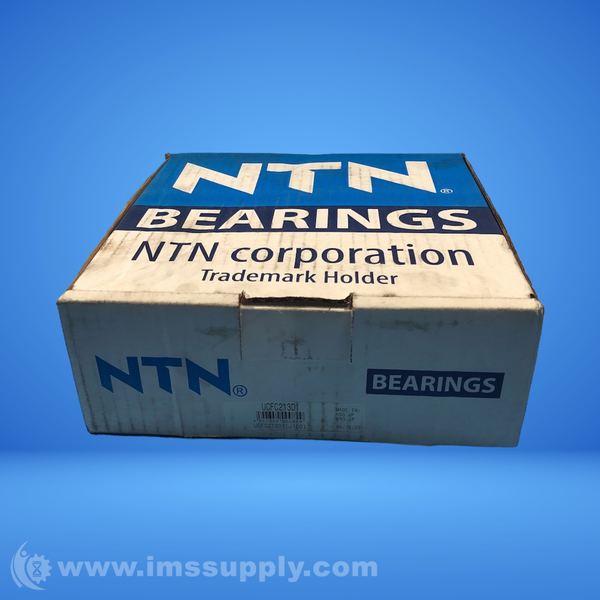

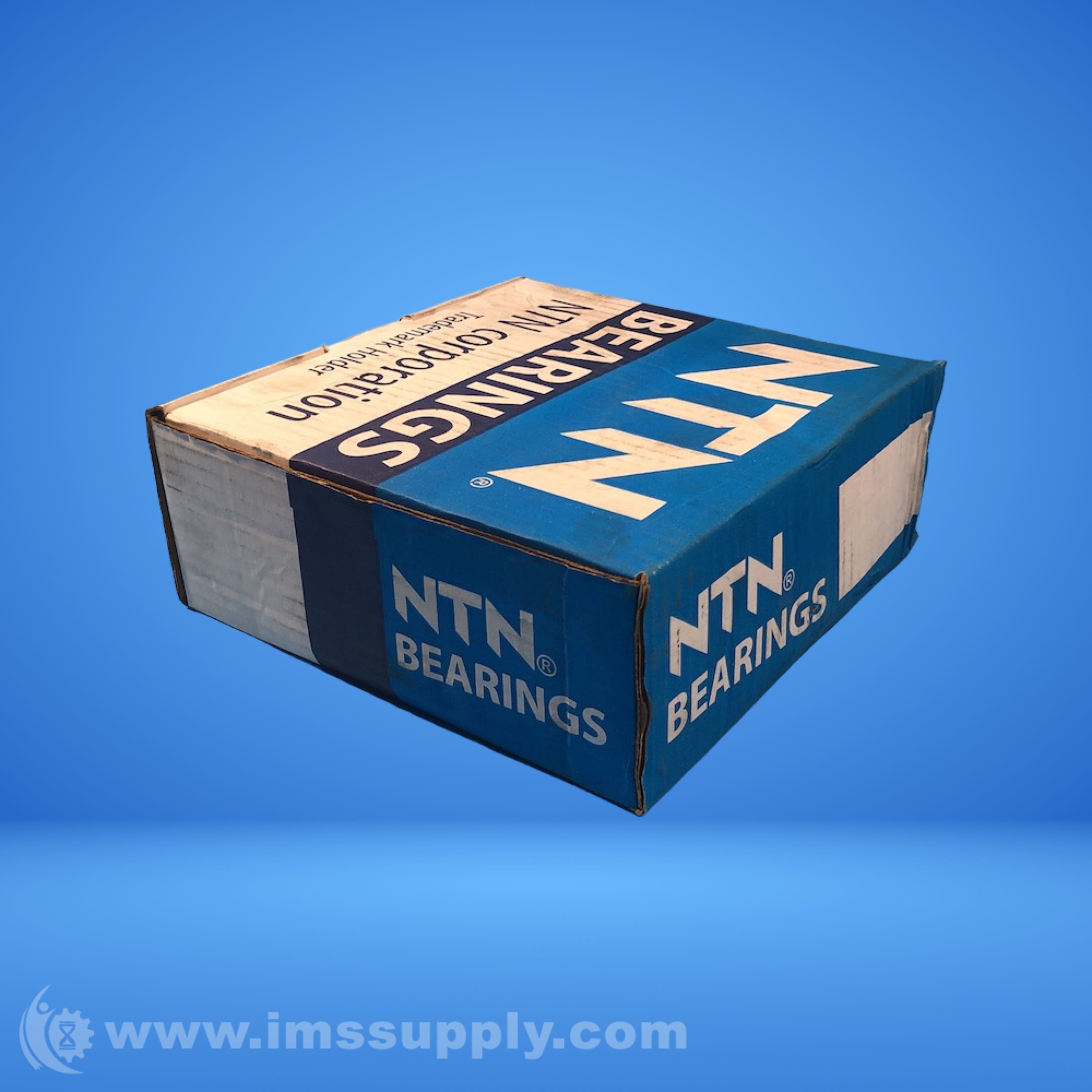

NTN UCFC213D1 FLANGE-MOUNT BALL BEARING UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UCFC213D1
IMS Product Code: 1803676
Packaging: Sold Individually
Description:
NTN UCFC213D1 Flange-Mount Ball Bearing Unit
Flange-Mount Ball Bearing Unit with 65 mm bore diameter, 4-Bolt Piloted Flange mount, Set Screw locking, Cast Iron housing material, Non-Expansion Bearing (Fixed), Intermediate Duty, Contact Seal
Specifications
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: UC213D1
- Housing Number: FC213D1
- Housing Material: Cast Iron
- Housing Construction: 1 Piece
- End Type: Open
- Performance: Light Duty
- Dynamic Load Rating: 12900 lbf, 57500 N, 57.50 kN
- Static Load Rating: 9000 lbf, 40000 N, 40.00 kN
- Rotational Speed [Max]: 2400.0 RPM
- Weight: 12.960 lb, 5.880 kg
- Operating Temperature Range: -40 to 250 ºF, -40 to 120 ºC
- Lubrication: Relubricatable
- d: 2.5591 in, 65.000 mm
- L: 8.0625 in, 205.0 mm
- J: 6.6875 in, 170.0 mm
- J1: 4.7344 in, 120.2 mm
- A: 1.9687 in, 50.0 mm
- A0: 2.7500 in, 69.700 mm
- A1: 1.4062 in, 36.0 mm
- A2: 0.6250 in, 16.0 mm
- A3: 0.5469 in, 14.0 mm
- H3: 5.7087 in, 145.0 mm
- N: 0.7500 in, 19.0 mm
- B: 2.5630 in, 65.100 mm
- S: 1.0000 in, 25.400 mm
- F: 0.3425 in, 8.700 mm
- Product Type: Flange-Mount Ball Bearing Units
- Bore Diameter: 65 mm
- Duty Type: Intermediate Duty
- Overall Length: 8.0625 in
- Bolt Circle Diameter: 6.6875 in
- Expansion Type: Non-Expansion Bearing (Fixed)
- Lubrication Type: Relubricatable
- Overall Width: 2.7500 in
- Bore Type: Straight
- Radial Dynamic Load Capacity: 12900 lbf
- Radial Static Load Capacity: 9000 lbf
- Series: UCFC
- Standards Met: JIS
- Housing ID: FC213D1
- Housing Construction: Solid
- Mounting Type: 4-Bolt Piloted Flange
