NTN UCFS324D1 FLANGE MOUNT BALL BEARING
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UCFS324D1
IMS Product Code: 1868768
Packaging: Sold Individually
Description:

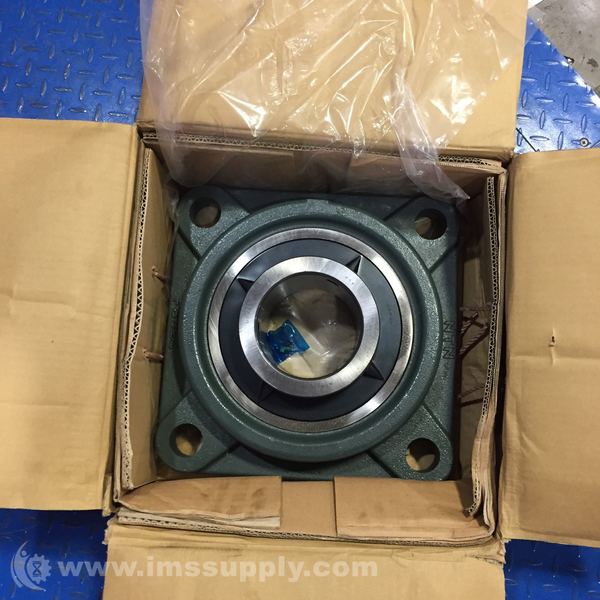

NTN UCFS324D1 Flange Mount Ball Bearing
Flange-mount ball bearing unit with 120 mm bore, 4-bolt flange mount, set screw locking, cast iron housing, contact seal, and relubricatable design
Specifications
- Bore Diameter: 120 mm
- Housing Material: Cast Iron
- Duty Type: Heavy Duty
- Locking Device: Set Screw
- Seal Type: Contact Seal
- Seal Material: Nitrile Rubber
- Lubrication Type: Relubricatable
- Radial Dynamic Load Capacity: 46500 lbf
- Radial Static Load Capacity: 41500 lbf
- Operating Temperature Range: -40 to 250 degrees F
- Max Rpm: 1750 rpm
- Weight: 114.6 lbs
- Mounting Type: 4-Bolt Flange
- Bore Type: Straight
- Overall Width: 140 mm
- End Type: Open
