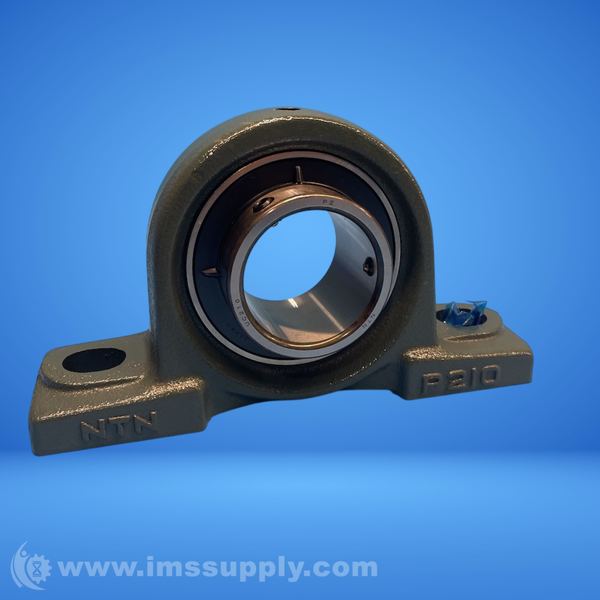

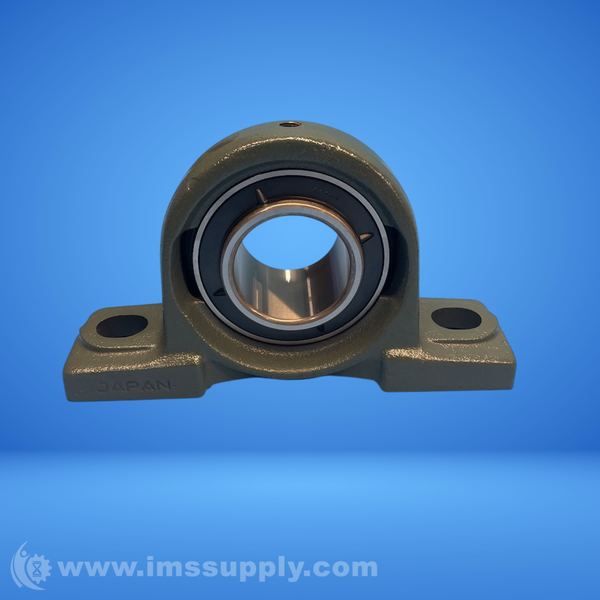

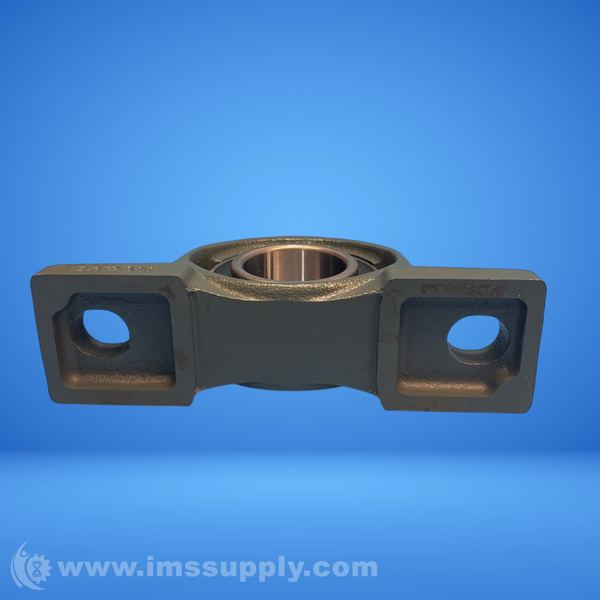

NTN UCP210D1 PILLOW BLOCK BALL BEARING UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UCP210D1
IMS Product Code: 2152896
Packaging: Sold Individually
Description:
NTN UCP210D1 Pillow Block Ball Bearing Unit
Pillow Block Ball Bearing Unit - 2-Bolt Base, 50 mm Bore, Cast Iron Material, Light Duty, Non-Expansion Bearing (Fixed)
Specifications
- Type: Pillow Block Unit
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: UC210D1
- Housing Number: P210D1
- Housing Material: Cast Iron
- Housing Construction: 1 Piece
- Performance: Light Duty
- Dynamic Load Rating: 7850 lbf, 35000 N, 35.00 kN
- Static Load Rating: 5200 lbf, 23200 N, 23.20 kN
- Rotational Speed [Max]: 3100 RPM
- Weight: 6.050 lb, 2.743 kg
- Operating Temperature Range: -40 to 250 ºF, -40 to 120 ºC
- Lubrication: Relubricatable
- d: 1.9685 in, 50.000 mm
- J: 6.2500 in, 159.0 mm
- L: 8.1250 in, 206.0 mm
- A: 2.3750 in, 60.0 mm
- H: 2.2500 in, 57.2 mm
- H1: 0.8125 in, 21.0 mm
- H2: 4.5000 in, 114.0 mm
- L1: 2.5625 in, 65.0 mm
- N: 0.7812 in, 20.0 mm
- N1: 0.9062 in, 23.0 mm
- B: 2.0315 in, 51.600 mm
- S: 0.7480 in, 19.000 mm
- F: 0.2323 in, 5.900 mm
- Mounting Type: 2-Bolt Base
- Bore Type: Round
- Bore Diameter: 50 mm
- Base To Bore Centerline: 57.20 mm
- Expansion Type: Non-Expansion Bearing (Fixed)
- Country of Origin: JP
- Overall Height: 114 mm
- Overall Length: 206 mm
- Base Width: 2.3750 in, 60.0 mm
- Overall Width: 2.4710 in
- Finish Coating: Uncoated
- Radial Dynamic Load Capacity: 7900 lbf
- Radial Static Load Capacity: 5220 lbf
- Max Rpm: 3100 rpm
- Series: UCP2
- Standards Met: AFBMA, ANSI, ISO
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 21 minutes.
