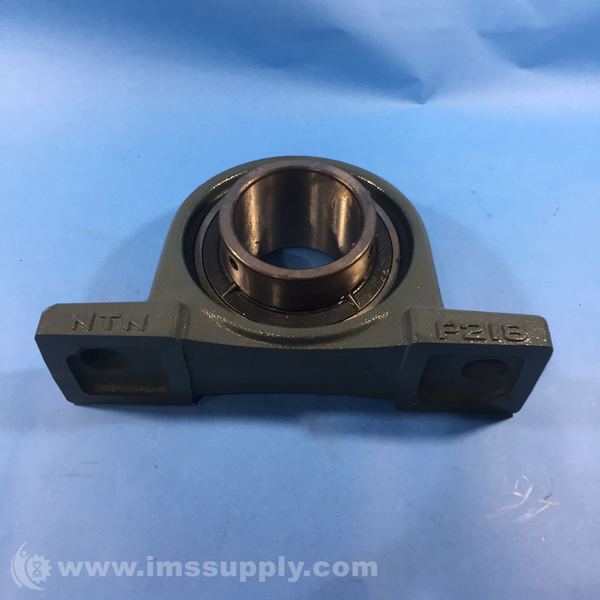

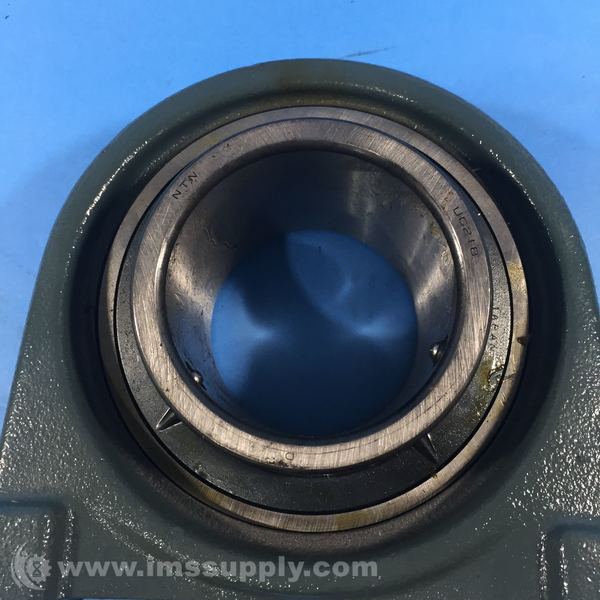

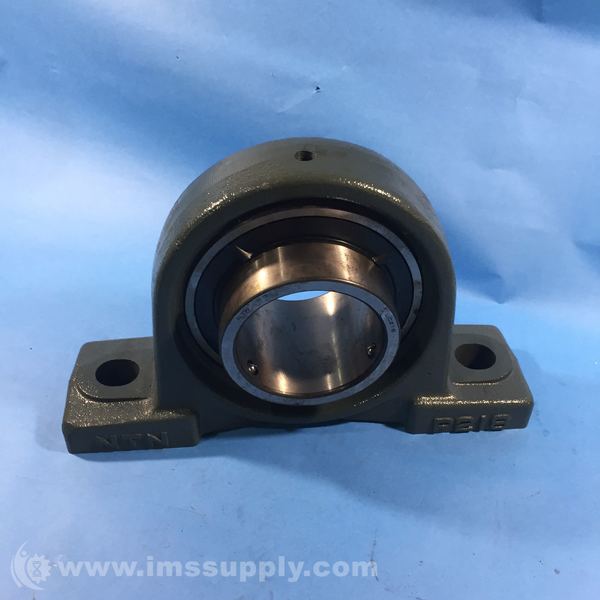

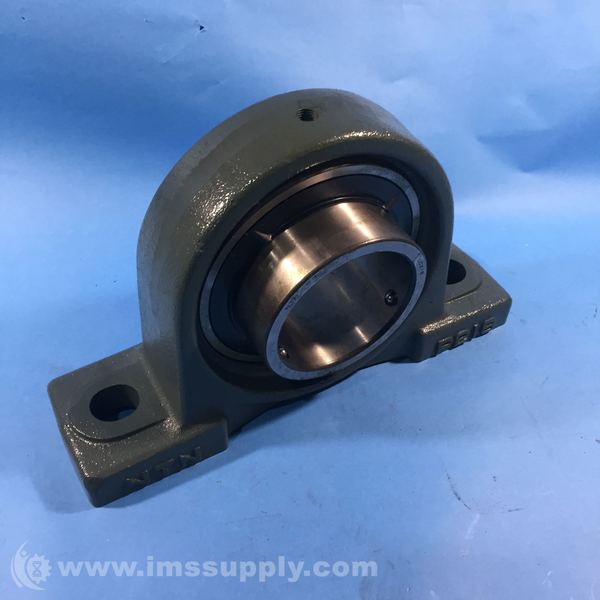

NTN UCP218D1 PILLOW BLOCK BALL BEARING UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UCP218D1
IMS Product Code: 1804098
Packaging: Sold Individually
Description:
NTN UCP218D1 Pillow Block Ball Bearing Unit
Specifications:
- Mounting: Two-Bolt Base
- Overall Height: 200 mm
- Bore Diameter: 90 mm
- Finish/Coating: Uncoated
- Bore Type: Round
- Overall Width: 96 mm
- Base to Bore Centerline: 4.0000 in
- Operating Temperature Range: -15 to +100 °C
- Duty Type: Light Duty
- Base Width: 88 mm
- Housing Material: Cast Iron
- Bolt Center-to-Center Length: 262 mm
- Locking Device: Set Screw
- Lubrication Type: Lubrication Fitting
- Seal type: Contact with Flinger
- Expansion type: Non-Expansion Bearing (Fixed)
Request A Quote
Let us know your requirements and an IMS Supply representative will provide you with a detailed quote.
Shipping Times Provided In Quote
