NTN UCP322D1 PILLOW BLOCK BALL BEARING UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UCP322D1
IMS Product Code: 1868769
Packaging: Sold Individually
Description:
NTN UCP322D1 Pillow Block Ball Bearing Unit
Pillow Block Ball Bearing Unit - 2-Bolt Base, 110 mm Bore, Cast Iron Material, Heavy Duty, Non-Expansion Bearing (Fixed)
Specifications
- Type: Pillow Block Unit
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: UC322D1
- Housing Number: P322D1
- Housing Material: Cast Iron
- Housing Construction: 1 Piece
- Performance: Heavy Duty
- End Type: Open
- Dynamic Load Rating: 46086 lbf
- Static Load Rating: 40241 lbf
- Rotational Speed [Max]: 1300.0 RPM
- Weight: 97.042 lb
- Operating Temperature Range: -40 to 250 degrees F
- Lubrication: Outer Ring Relubricatable
- d: 4.3310 in
- J: 15.7480 in
- L: 20.4724 in
- A: 5.5118 in
- H: 5.9055 in
- H1: 2.1654 in
- H2: 11.8110 in
- L1: 5.3150 in
- N: 1.5748 in
- N1: 2.1654 in
- B: 4.6063 in
- S: 1.8110 in
- F: 0.5472 in
- Outside Diameter: 9.4490 in
- Bore Type: Cylindrical
- Outside Ring Width: 2.3230 in
- Inside Ring Width: 4.6060 in
- Clearance: CN
- Cage Material: Pressed Steel
- Precision Rating: ISO Class 0
- Radial Dynamic Load Rating: 46086 lbf
- Radial Static Load Rating: 40241 lbf
- Rotational Speed [Max]-Grease: 1250.0 RPM
- Series: UCP3
- Bore Diameter: 110 mm
- Bolt Center-to-Center Length: 400 mm
- Base to Bore Centerline: 150 mm
- Overall Length: 520 mm
- Overall Width: 141 mm
- Overall Height: 300 mm
- Mounting Type: 2-Bolt Base
- Base Width: 140 mm
- Expansion Type: Non-Expansion Bearing (Fixed)
- Load Capacity: 205000 N Dynamic/179000 N Static
- Temperature Rating: -40 to 120 deg C
- Maximum Speed: 1300 rpm
- Material: Cast Iron
- Finish: Uncoated

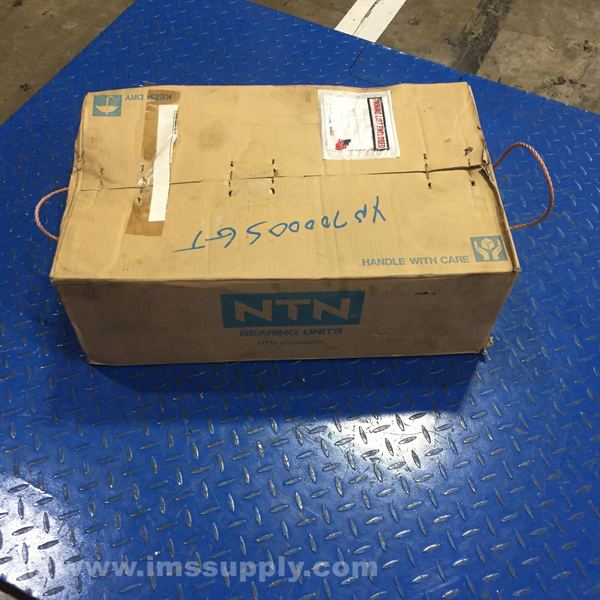

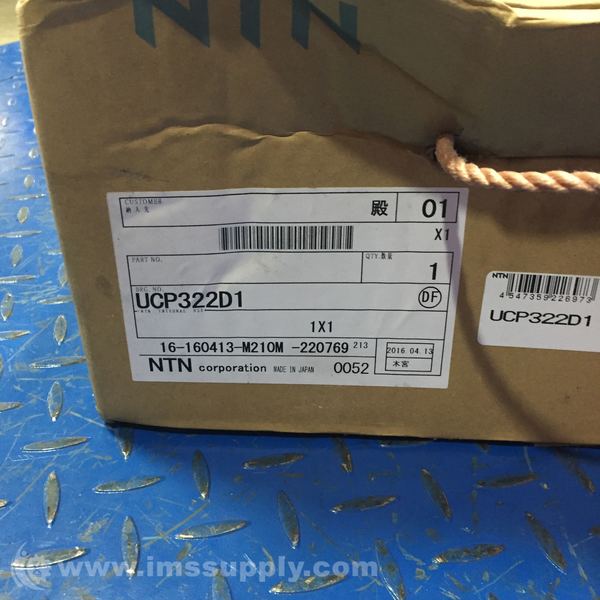

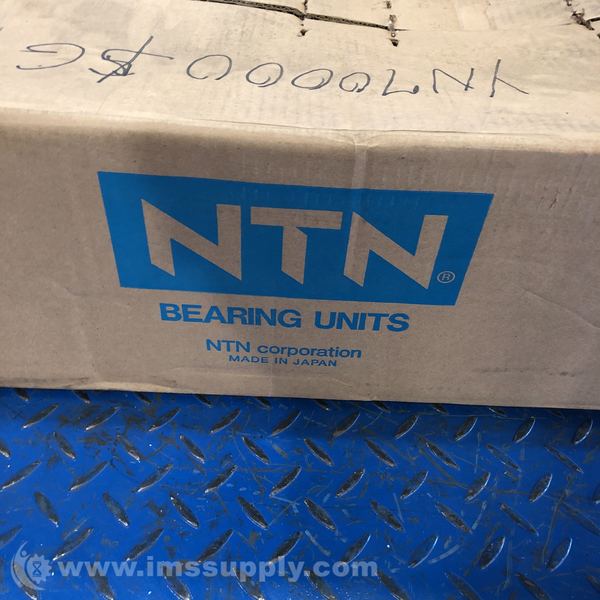

New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 9 hours and 41 minutes.

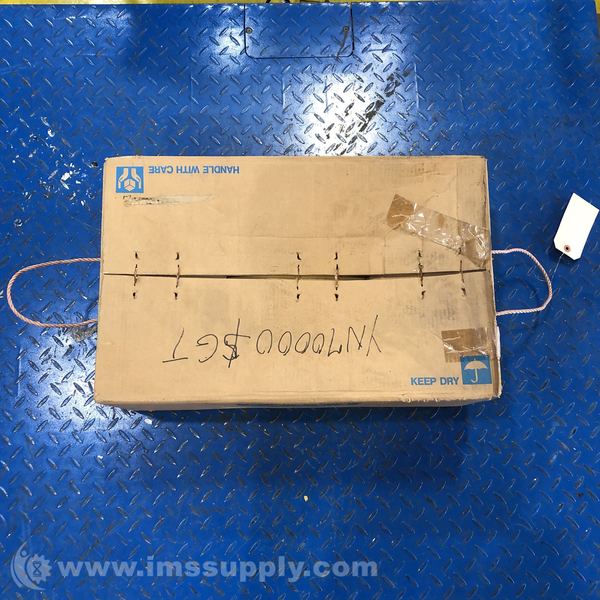

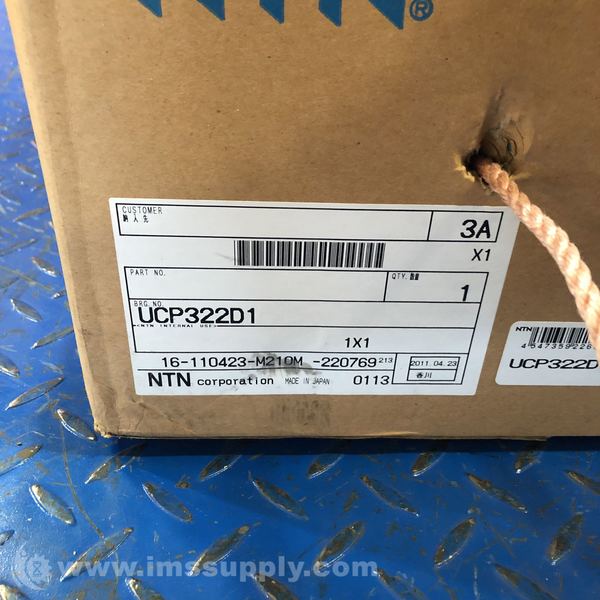

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 10 hours and 41 minutes.
