NTN UCUP206D1 PILLOW BLOCK UNIT
Quick Overview
Manufactured By: NTN
Manufacturer Part Number: UCUP206D1
IMS Product Code: 2155682
Packaging: Sold Individually
Description:

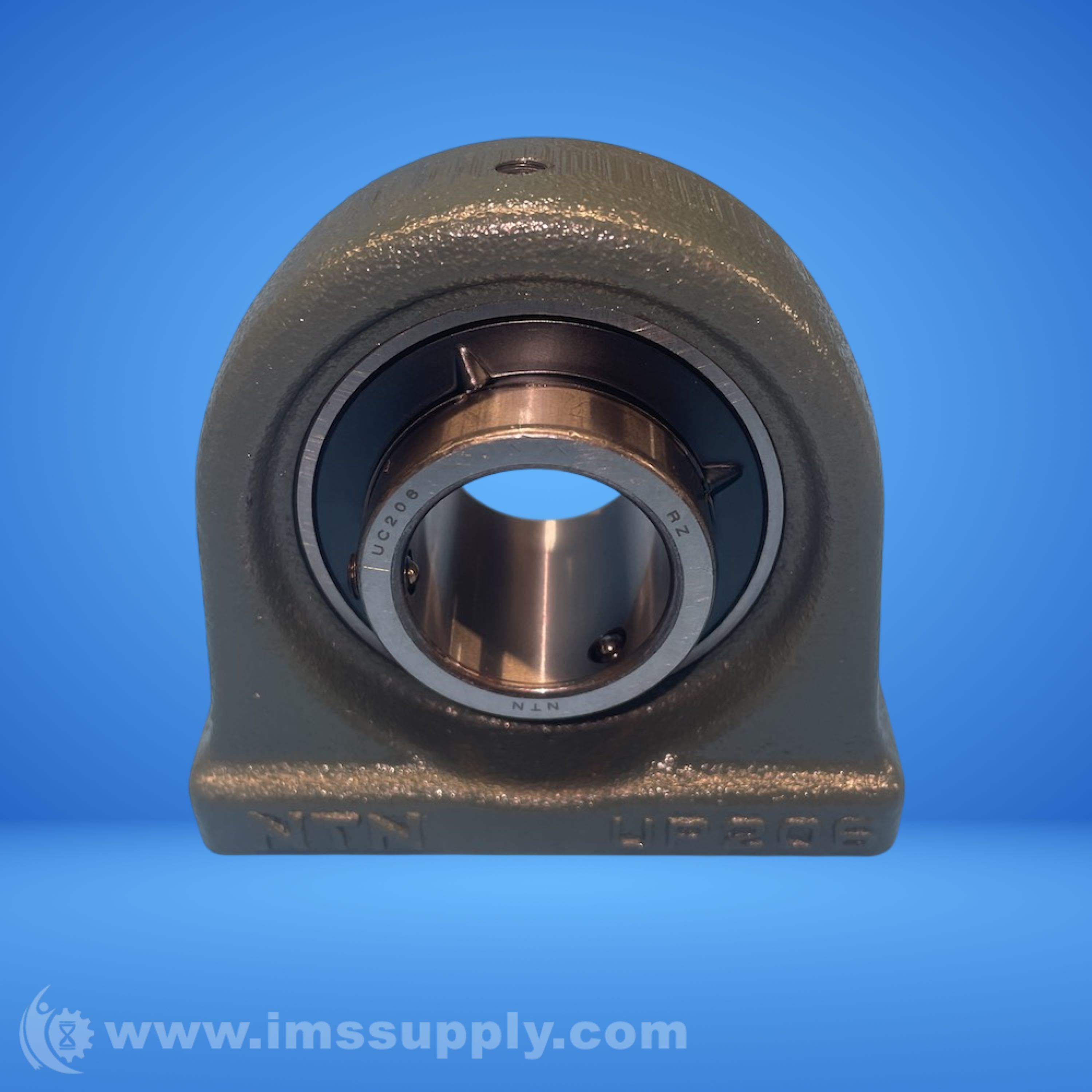

NTN UCUP206D1 Pillow Block Unit
Pillow block ball bearing unit with 2-bolt base, 30 mm bore diameter, made of steel, light duty, non-expansion bearing (fixed)
Specifications
- Type: Pillow Block Unit
- Bearing Type: Ball Bearing
- Locking Device: Set Screw
- Seal Type: Contact
- Seal Material: Nitrile Rubber
- Bearing Number: UC206D1
- Housing Number: UP206D1
- Housing Material: Steel
- Dynamic Load Rating: 19500 N
- Static Load Rating: 11300 N
- Rotational Speed [Max]: 4900 RPM
- Weight: 1.1 kg
- Operating Temperature Range: -40 to 120 degrees C
- d: 30 mm
- J: 66 mm
- L: 94 mm
- A: 48 mm
- H: 42.9 mm
- H1: 12 mm
- H2: 84 mm
- N: M14x2
- j: 18 mm
- B: 38.1 mm
- S: 15.9 mm
- F: 4.6 mm
- Outside Diameter: 62 mm
- Bore Type: Cylindrical
- Cage Material: Pressed Steel
- Precision Rating: ISO Class 0
- Series: UCUP2

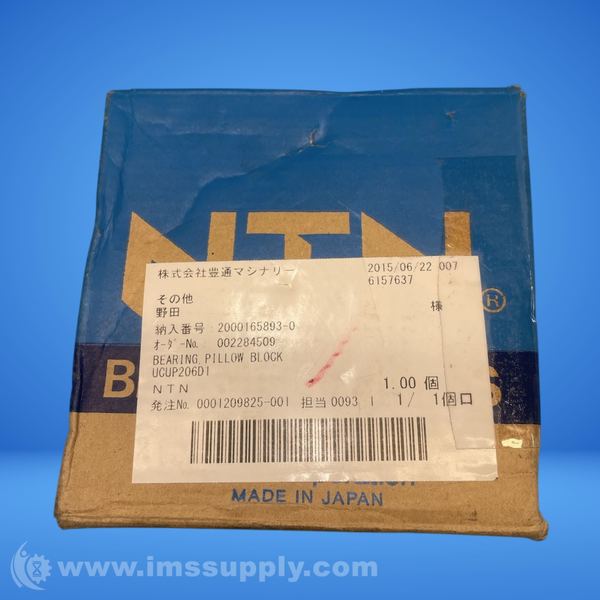

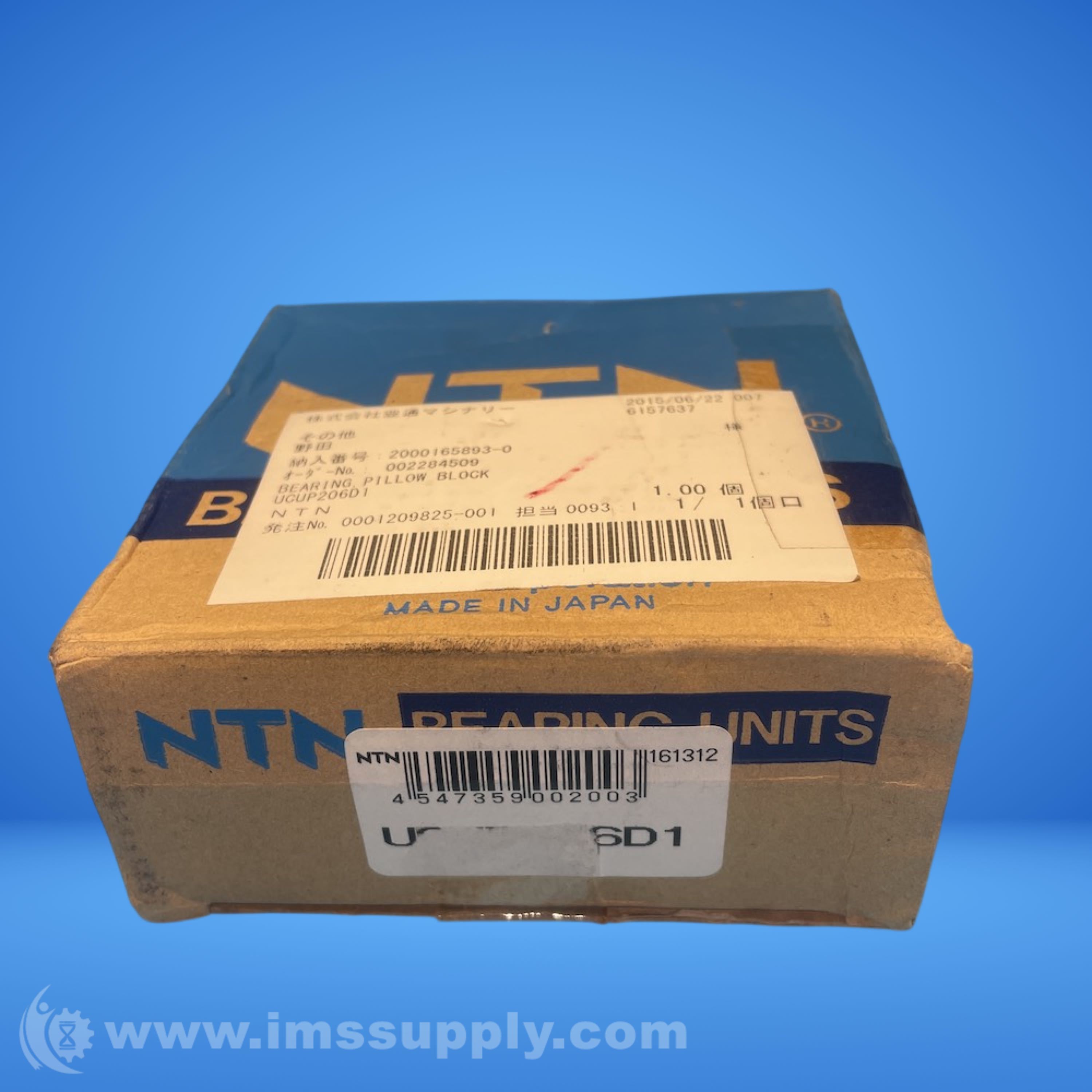

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
