NUMATICS 152JJ400O000000 AIR PILOT VALVE
Quick Overview
Manufactured By: NUMATICS
Manufacturer Part Number: 152JJ400O000000
IMS Product Code: 2145974
Packaging: Sold Individually
Description:

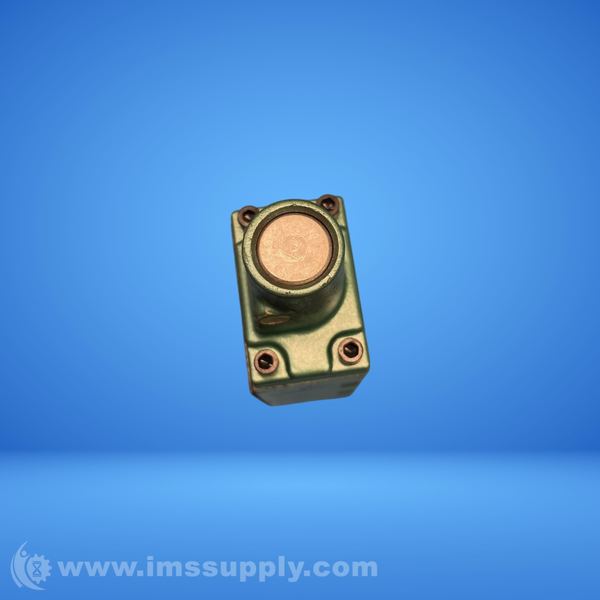

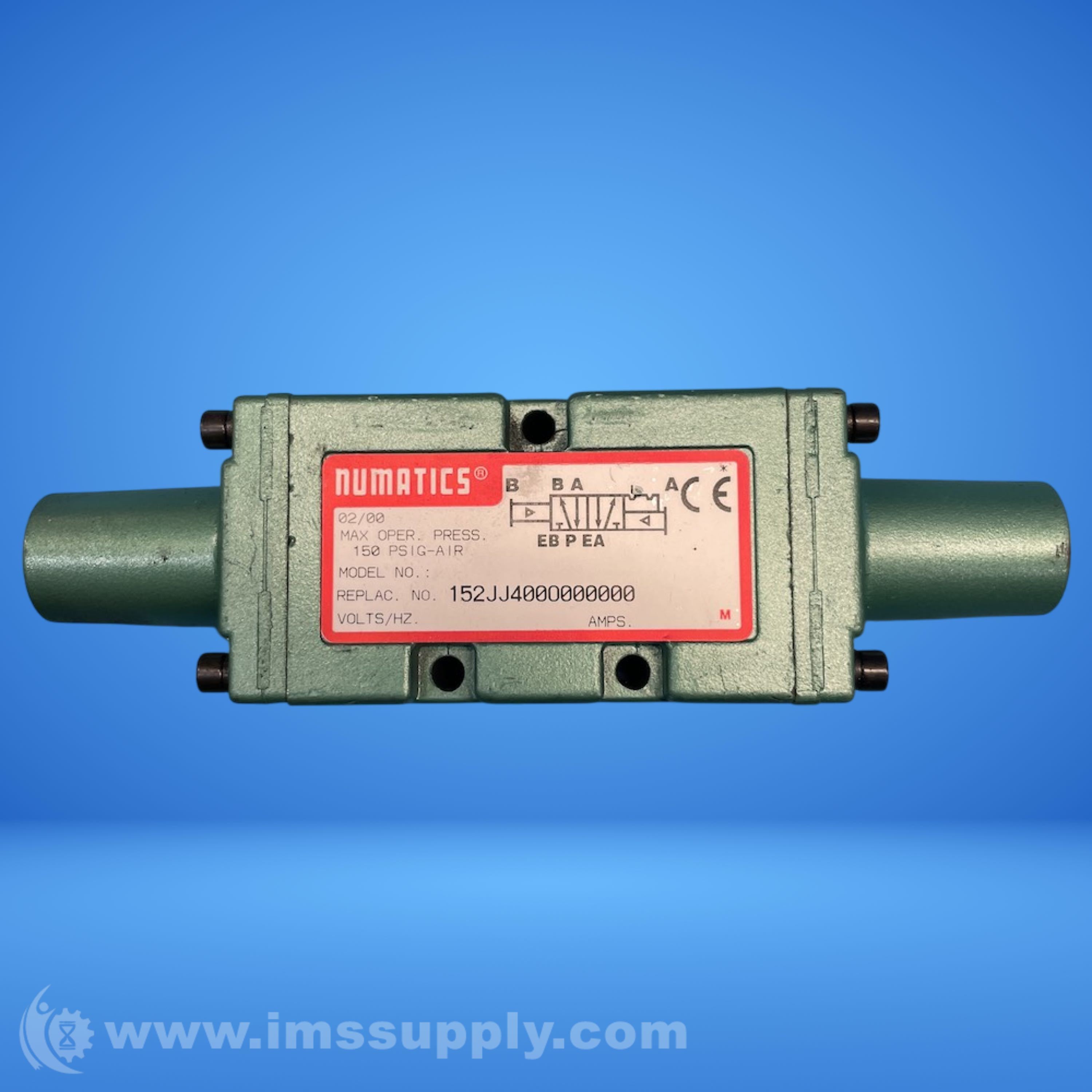

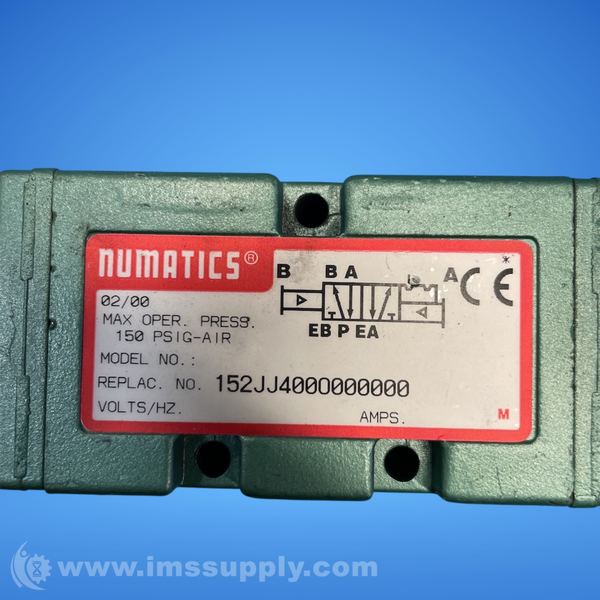

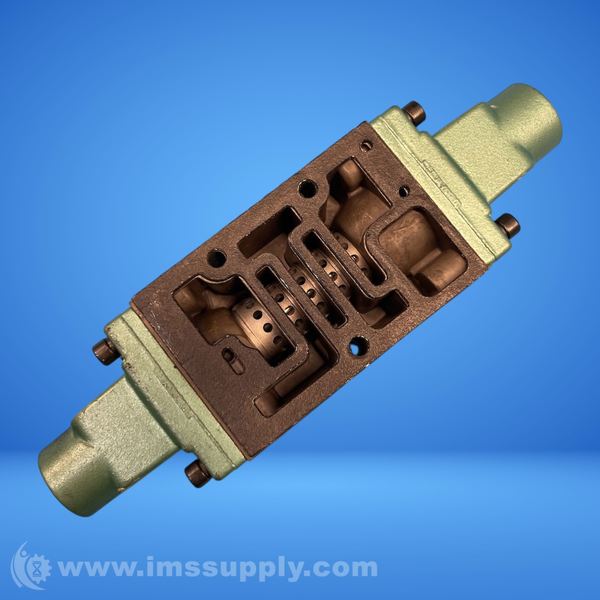

Numatics 152JJ400O000000 Air Pilot Valve
Pneumatic directional control valve with double air pilot operation and flush non-locking override. 4-way, 2-position configuration with 1/4 inch NPTF ports. Flow rate of 65 SCFM at 80 PSIG and pressure rating of 28 Inch Hg Vacuum to 150 PSIG.
Specifications
- Actuator Type: Pneumatic
- Series: PA15 Series
- Type: 4-Way/2-Position
- Flow Rate: 65-69 scfm
- Pressure Rating: 28 in-hg to 150 psi
- Temperature Rating: -10 to 115 deg F
- End Style: NPTF
- Media: Air
- Nominal Size: 1/4 in
- CV: 1.5
- PORT SIZES: 1/4, 3/8 NPTF, G
- OPERATING PRESSURE RANGE: 28" HG. VACUUM TO 150 PSIG / VACUUM TO 10 BAR
- PILOT PRESSURE RANGE: 20 TO 125 PSIG / 2 POSITION DETENTED 15 TO 125 PSIG
- CONTROL FUNCTION: DOUBLE AIR PILOT
- VALVE FUNCTION: 4 WAY 2 POSITION - (5/2) DETENT

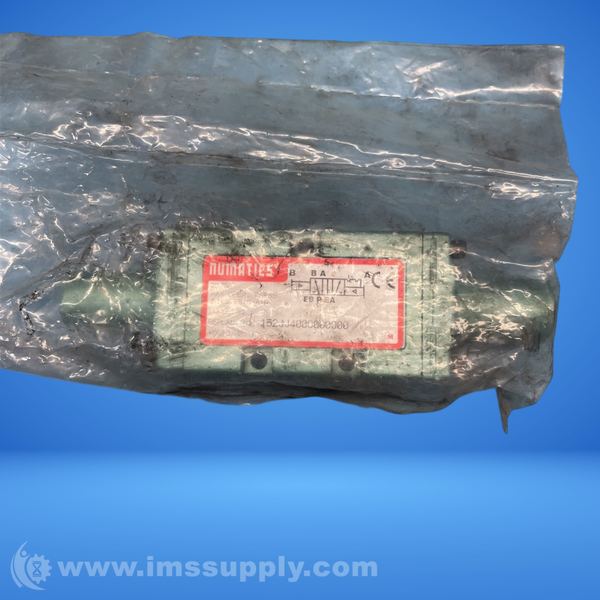

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
