NUMATICS 1750S01-06A-03 PNEUMATIC CYLINDER
Quick Overview

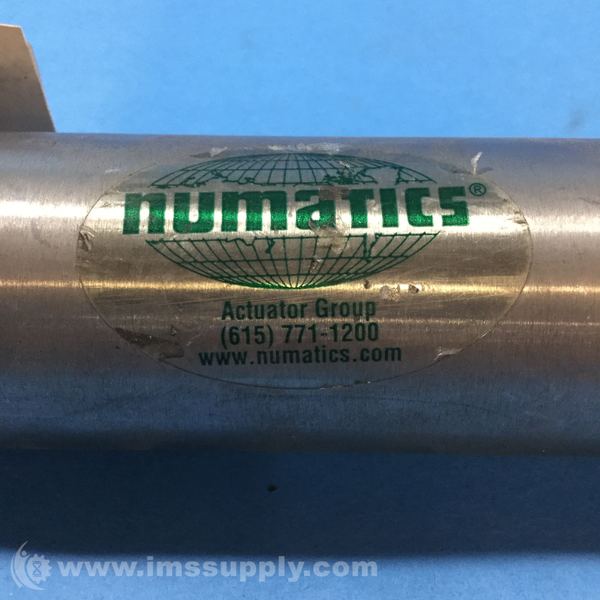

Manufactured By: NUMATICS

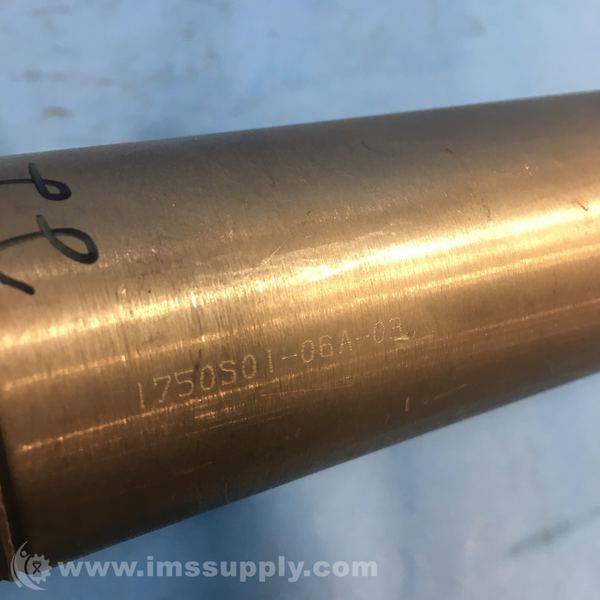

Manufacturer Part Number: 1750S01-06A-03
IMS Product Code: 1804928
Packaging: Sold Individually
Description:

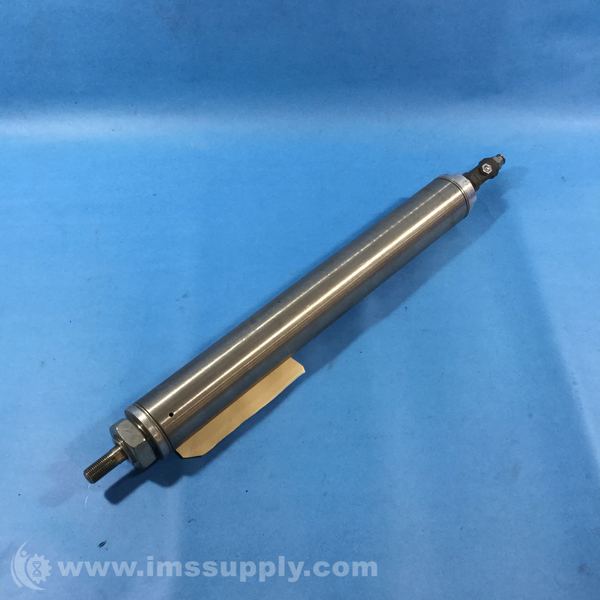

Numatics 1750S01-06A-03 Double-acting Single-rod Pneumatic Cylinder Actuator With Magnetic Band + Built-in Magnet
Specifications:
- Primary brand: Numatics
- Secondary brand: Emerson
- Main function: Pneumatic cylinder
- Product series / family name: Non-repairable round line - M series
- Bore size: 1-3/4" bore (B1-3/4")
- Stroke length: 6" stroke length (S6")
- Functions: Double-acting single-rod pneumatic cylinder actuator
- Design: magnetic band, built-in magnet
- Pressure: 250psi (max. operating pressure)
- Temperature: -10...165°F ambient temp.
- Diameter: 1/2" rod

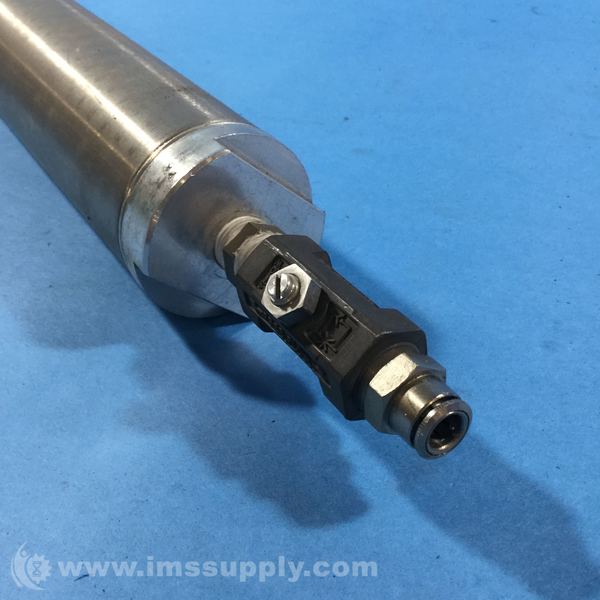

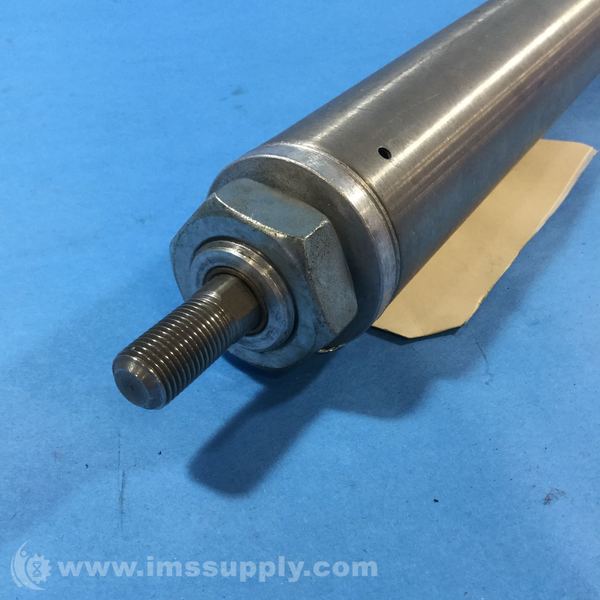

- Connection type: 1/4" NPTF threaded pneumatic ports x 2, 1/2-20 UNF-2A (male) threaded rod
- Mounting mode: Nose mounting
- Material: Buna N (low friction) seals; piston; rod stainless steel (304) cylinder stainless steel (303) rod aluminium piston aluminium head; cap
- Force: 241lbf (100psi relative working pressure; extend) 221lbf (100psi relative working pressure; retract)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
