NUMATICS 1FC1 FLOW CONTROL VALVE
Quick Overview
Manufactured By: NUMATICS
Manufacturer Part Number: 1FC1
IMS Product Code: 984659
Packaging: Sold Individually
Description:

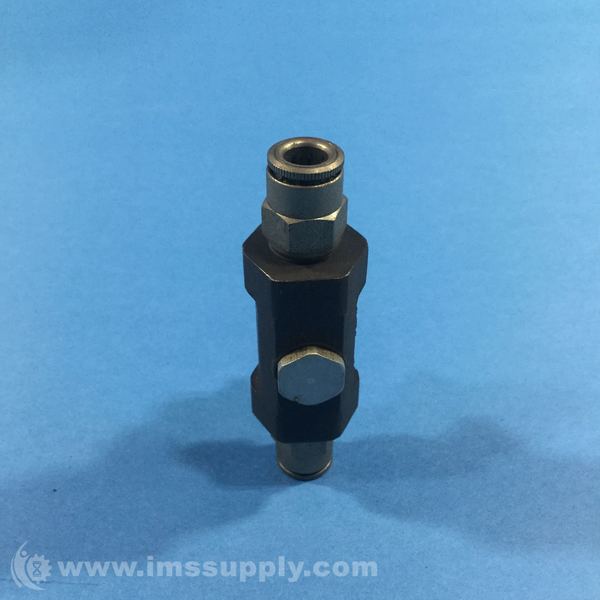

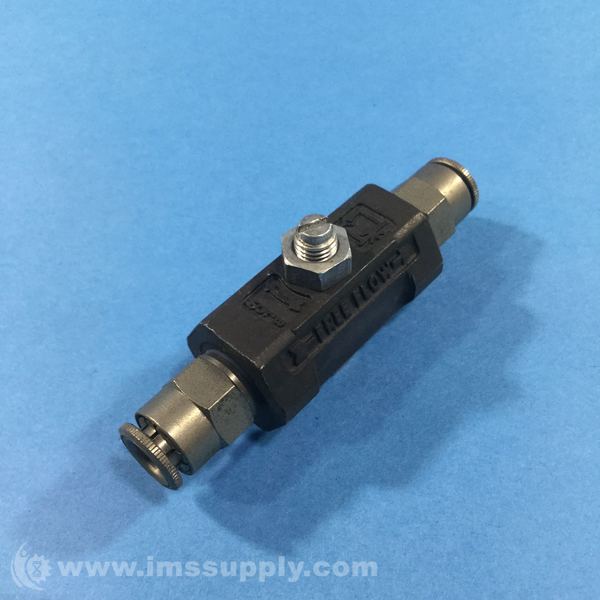

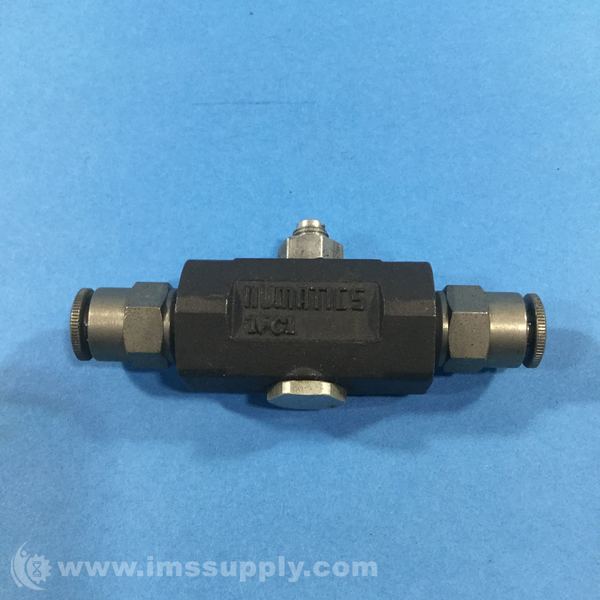

Numatics 1FC1 Flow Control Valve
Inline flow control valve with 1/8 inch NPT ports, screw adjustment, and Buna-N seals.
Specifications
- Port Size: 1/8" NPT
- Type: Inline
- Adjustment: Screw
- Temperature Range: 0F to 160F
- Maximum Operating Pressure: 175 PSI (12 Bar)
- Body Material: Anodized Aluminum
- Cartridge Material: Nickel-Plated Brass
- Screw Material: Stainless Steel
- Spring Material: Stainless Steel
- Seal Material: Buna-N
- Cv: 0.22
- Overall Length: 1.5 Inch
Used (Special):
Fittings Attached
Availability: 2 In Stock
Ships today if ordered in the next 14 hours and 5 minutes.
