NUMATICS 240-325 ETHERNET/IP DLR NODE
Quick Overview
Manufactured By: NUMATICS
Manufacturer Part Number: 240-325
IMS Product Code: 2135492
Packaging: Sold Individually
Description:

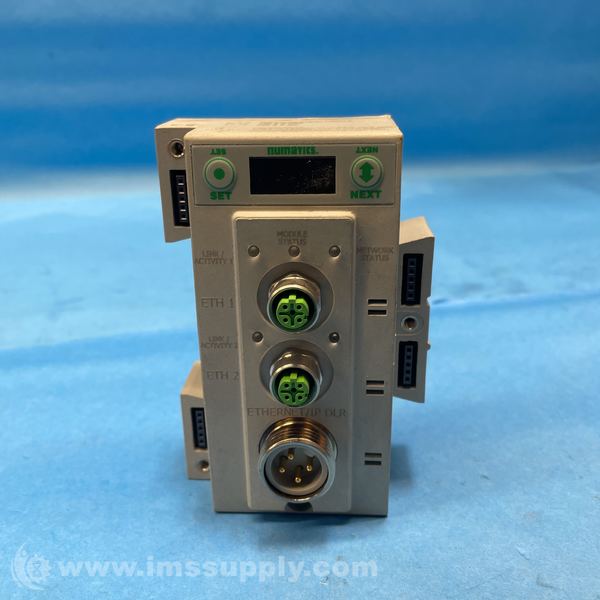

Numatics 240-325 Ethernet/IP DLR Node
The Numatics 240-325 is a G3 series Ethernet/IP DLR communication node designed for modular pneumatic valve manifolds. It enables high-speed, fault-tolerant communication across industrial networks and supports up to 128 solenoid valves.
Specifications
- Fieldbus Protocol: Ethernet I/P DLR

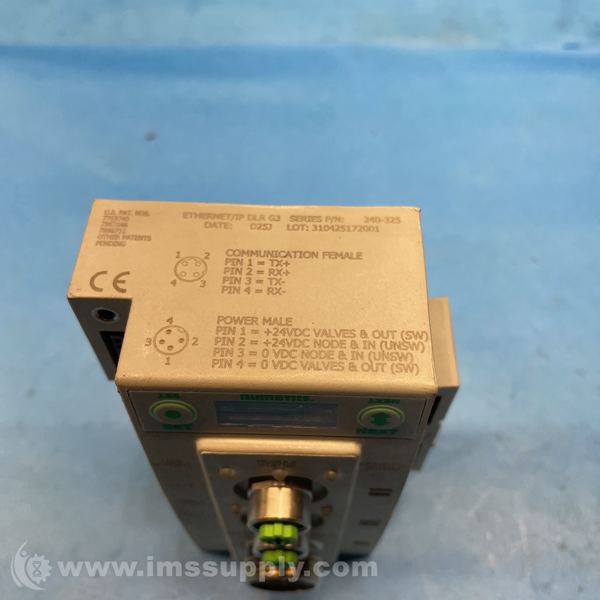

- Power Connector: 4 Pin 7/8" Mini Male
- Communication Connector: 4 Pin M12 Female (Two D-Coded)
- Network Protocol: Ethernet/IP with Device-Level Ring (DLR)
- Valve Compatibility: Numatics 500, Gen2000, ISO 5599/2
- Max Solenoid Support: Up to 128 (external pilot required for more than 32)
- Power Input: 24 VDC ±10%, 8 A output capacity
- Connectors: 2× M12 (D-coded) Ethernet ports, 1× 7/8? 4-pin power
- Operating Temperature: -23 degrees C to +50 degrees C (-10 degrees F to +122 degrees F)
- Enclosure Rating: IP65
- Mounting: DIN-rail compatible with clip system
- Dimensions: Approx. 3" × 4.8" × 2" (76 × 122 × 51 mm)
- Weight: Approx. 227 grams

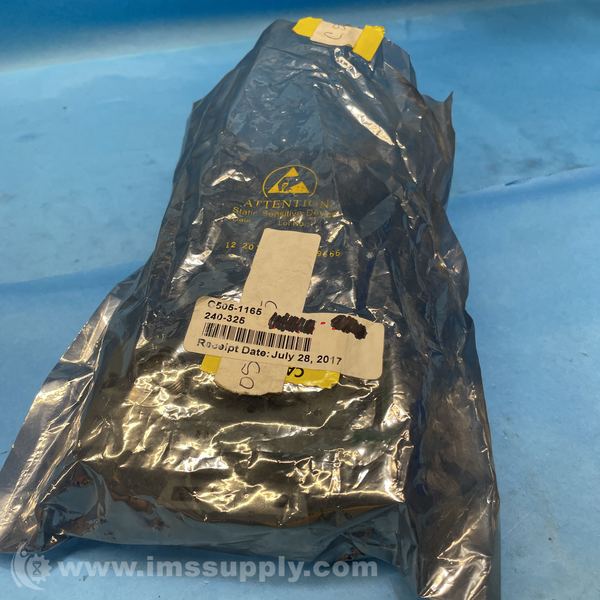

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
