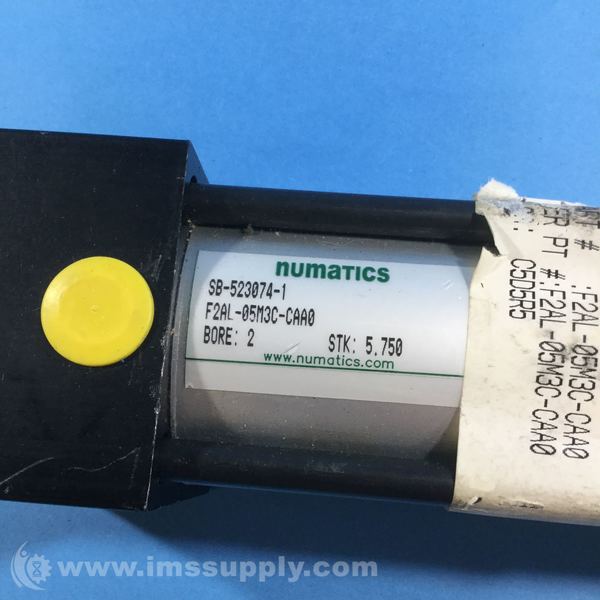

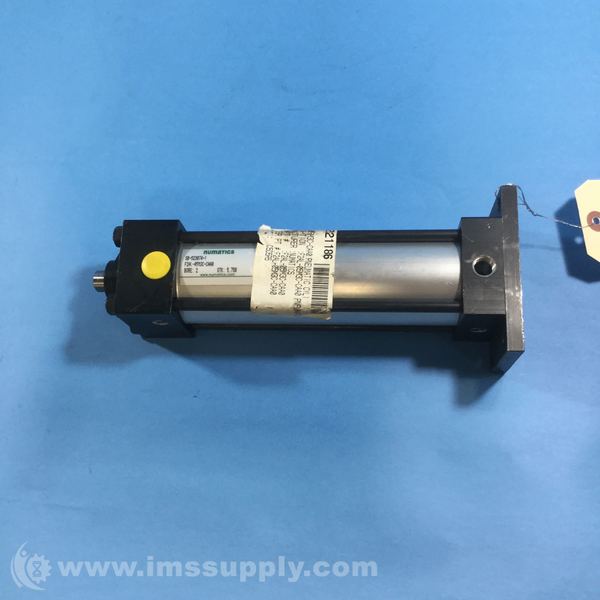

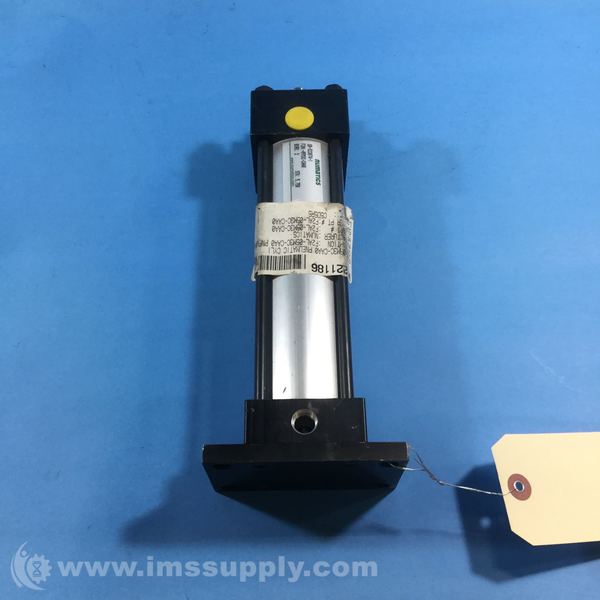

NUMATICS F2AL-05M3C-CAA0 PNEUMATIC CYLINDER
Quick Overview
Manufactured By: NUMATICS
Manufacturer Part Number: F2AL-05M3C-CAA0
IMS Product Code: 1815062
Packaging: Sold Individually
Description:
Numatics F2AL-05M3C-CAA0 Pneumatic Cylinder
- Product series / family name: NFPA Interchangeable line - A series
- Bore size: 2" bore (B2")
- Stroke length: 5-3/4" stroke length (S5-3/4")
- Functions: Double-acting single-rod tie-rod pneumatic cylinder actuator
- Design: adjustable cushion (head; cap; position 2)
- Pressure: 250psi (max. operating pressure)
- Temperature: -23...74°C ambient temp., -10...165°F ambient temp.
- Diameter: 5/8" rod
- Connection type: 1/4" NPTF threaded pneumatic ports x 2 (position 1), 7/16-20 (female) threaded rod
- Mounting mode: Rear flange mounting
- Material:
- nitrile (self-lubricating carboxilated with PTFE compound) seals; piston; rod
- hard coat anodized aluminium body
- chrome-plated steel piston rod
- aluminium alloy piston
- aluminium (6061-T6) head; cap
- graphite filled cast iron rod bushing
- Force:
- 314lbf (100psi relative working pressure; extend)
- 283lbf (100psi relative working pressure; retract)
- Compliant with standard(s): NFPA
Used (Special):
Additional hardware attached: 2 x SCHRADER BELLOWS 2601
