OKEEFE CONTROLS CO OKC-2271-2 PNEUMATIC FLOAT VALVE
Quick Overview
Manufactured By: OKEEFE CONTROLS CO.
Manufacturer Part Number: OKC-2271-2
IMS Product Code: 2156120
Packaging: Sold Individually
Description:

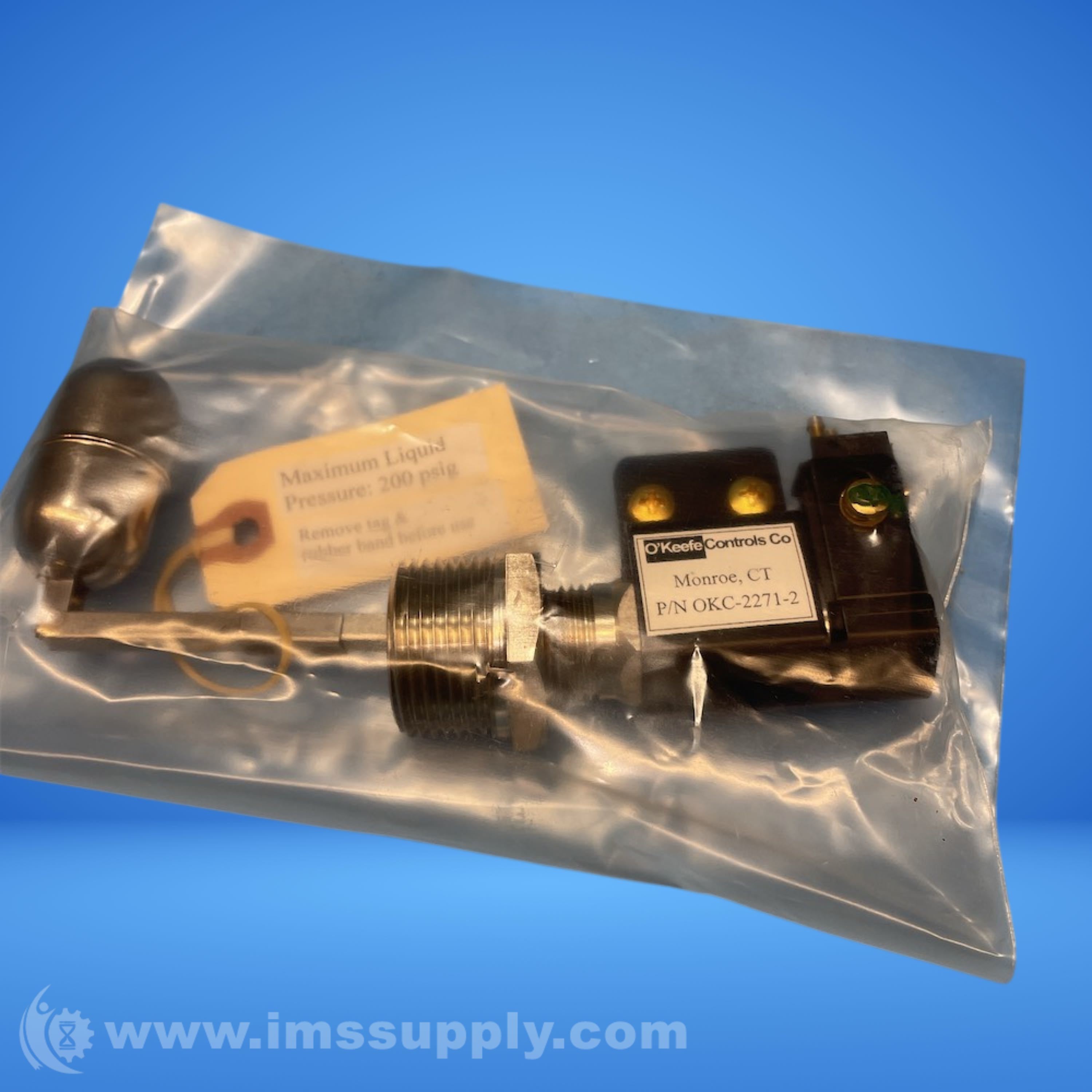

OKeefe Controls Co OKC-2271-2 Pneumatic Float Valve
Top-mounted pneumatic float valve featuring a normally open output (normally passing).
Specifications
- Specific Gravity: 0.5
- Maximum Liquid Temperature: 180 F
- Maximum Liquid Pressure: 200 psig
- Body Material: Stainless Steel
- Bracket Material: Anodized Aluminum
- Float Material: Stainless Steel
- Materials of Switch Body: Plastic
- Connection Barbs Material: Brass
- Wetted Material: 301 SS 303 SS 304 SS Ceramic
- Minimum Air Pressure: 30 psig
- Maximum Air Pressure: 85 psig
- Output Valve: 3-Way Valve
- Minimum Temperature: 35 F
- Maximum Temperature: 120 F
- Operation: Normally Open � Pneumatic Output on Liquid Level Fall
- Connection A: 1" NPT Male
- Temperature Limit: 200 F
- Fluid Media: Clean compressed air or inert gases, filtration
- Operating Pressure: 30 to 85 psig
- Operating Temperature: 35 to 140 F
- Valve Connections: For 3/32" ID tubing (2.5 mm)
- Actuation Indicator: 1/16" diameter/Blue
- Air Flow: No continuous air flow usage.
- Air Valve Orifice Diameter: 0.080 in
- Deadband: Change in liquid level between valve actuation and deactuation � approximately 1/4"
- Mounting Configuration: Top-mounting
- Output Type: Pneumatic
- Normal State: Normally Open
- Pneumatic Output Pressure: 30-85 psig
- Ambient Temperature: Up to 120 F
- Wetted Parts Material: Stainless Steel
