OMAL NC PNEUMATIC VALVE
Quick Overview
Brand: OMAL AUTOMATION
Part Number: NC
IMS Product Code: 2156677
Packaging: Sold Individually
Description:

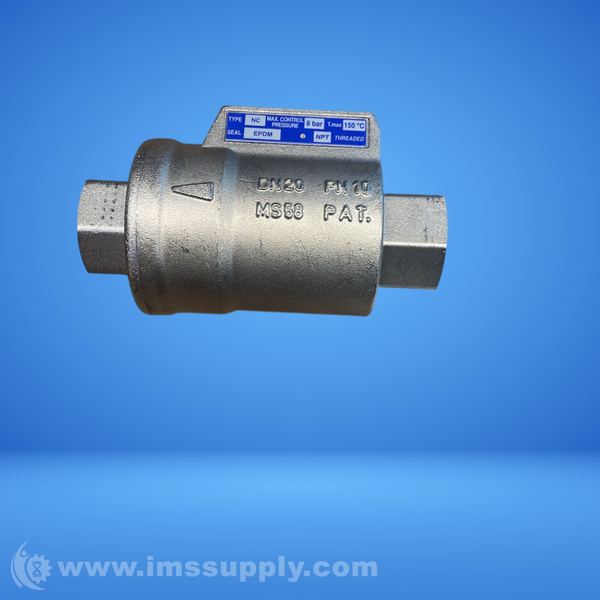

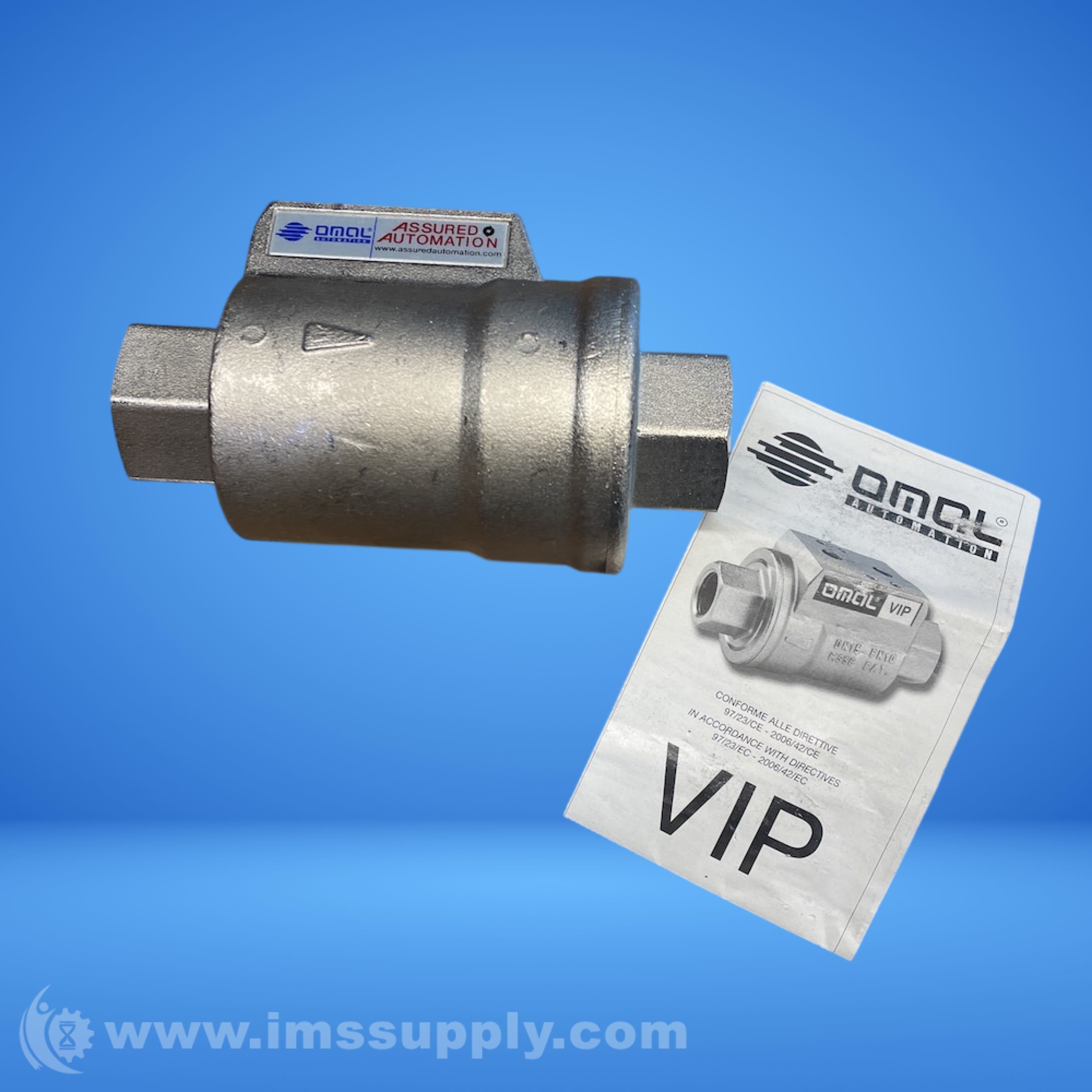

Omal NC Pneumatic Valve
Normally Closed (NC) spring return coaxial pneumatic valve with integrated pneumatic actuator.
Specifications
- type: Pneumatic Coaxial Valve
- function: Normally Closed (NC) spring return
- port connection: DN 20 3/4"
- orifice size: Internal diameter equal to pipe
- operating pressure range: 0 to 8 bar
- media: Neutral liquids, gases & oil
- media temperature range: -10 degrees C to +150 degrees C
- ambient temperature range: -20 degrees C to +80 degrees C
- body material: Stainless Steel
- seal material: NBR
- actuator type: Spring return NC
- air supply pressure: 3 to 8 bar
- response time: < 1 s
- mounting position: Any
- dimensions: 140 x 70 x 65 mm
- weight: 1.7 kg
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 14 minutes.
