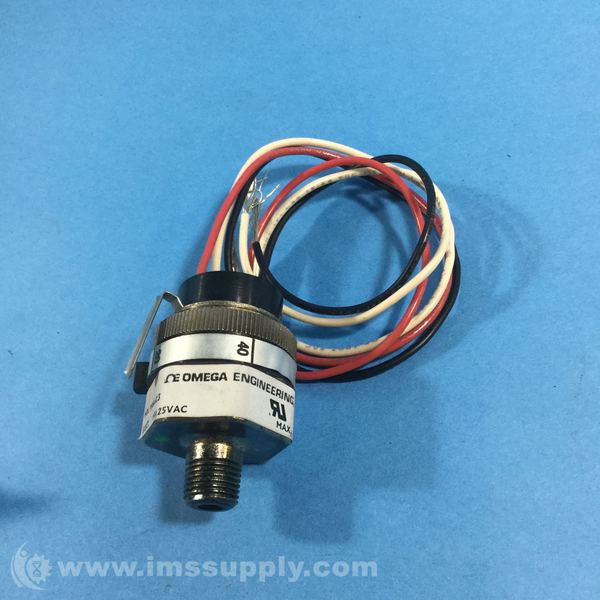

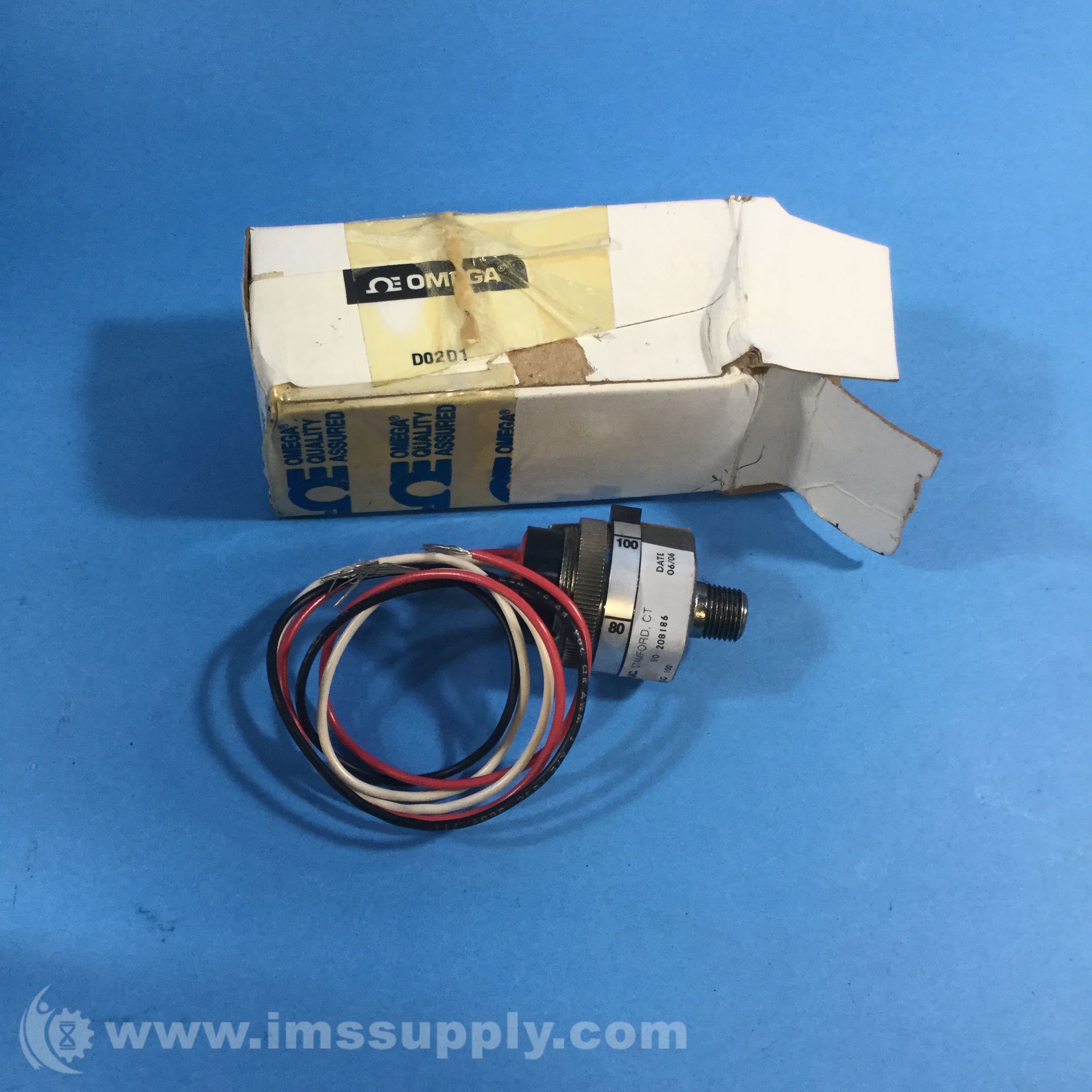

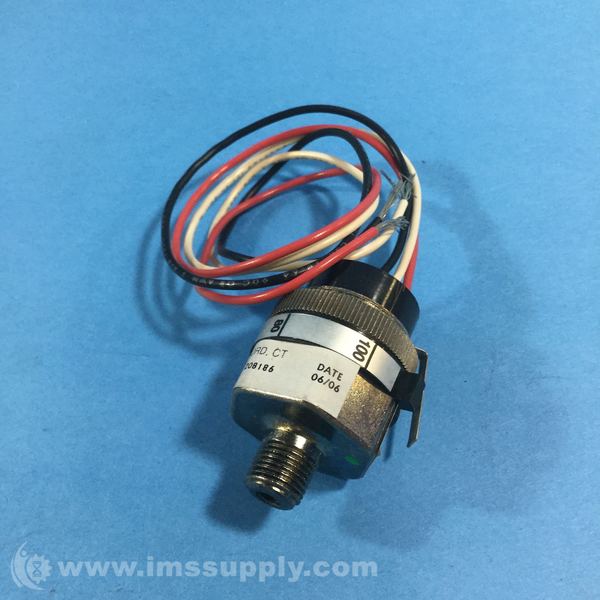

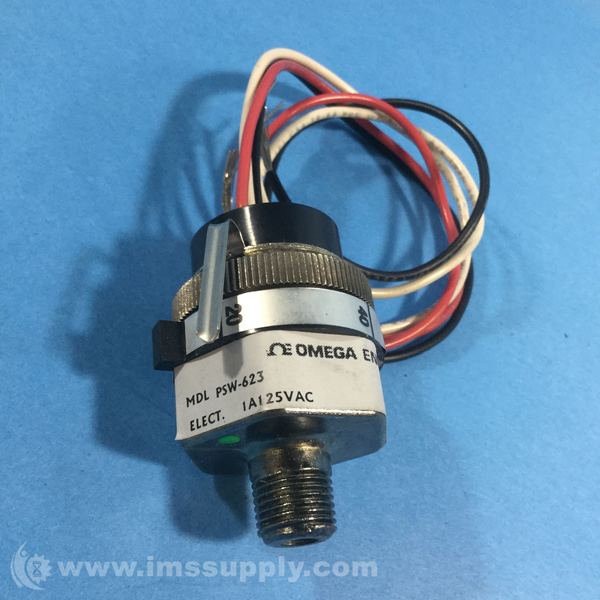

OMEGA PSW-623 MECHANICAL PRESSURE SWITCH
Quick Overview
Manufactured By: OMEGA ENGINEERING
Manufacturer Part Number: PSW-623
IMS Product Code: 1814920
Packaging: Sold Individually
Description:
Omega PSW-623 Mechanical Pressure Switch
Mechanical Pressure Switch, OEM, Gauge Type, 1 A SPST, 1/8 " NPT Male, 3 psi to 100 psi, 1.5 psi to 3.5 psi Deadband, Fixed, Gold Plated Contact, Indoor Application
Specifications
- type: Mechanical Pressure Switch
- series: PSW-621
- pressure type: Gauge
- contact configuration: SPST
- switching current max: 1A
- pressure port type: NPT Male
- pressure port size: 1/8"-27
- operating pressure min: 3psi
- operating pressure max: 100psi
- deadband min: 1.5psi
- deadband max: 3.5psi
- transducer connection / termination: Pigtail Leads
- contact material: Gold Plated
- application: Indoor
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
