OMEGA OS36-5-J-140F-GMP INFRARED THERMOCOUPLE
Quick Overview
Manufactured By: OMEGA
Manufacturer Part Number: OS36-5-J-140F-GMP
IMS Product Code: 1835062
Packaging: Sold Individually
Description:

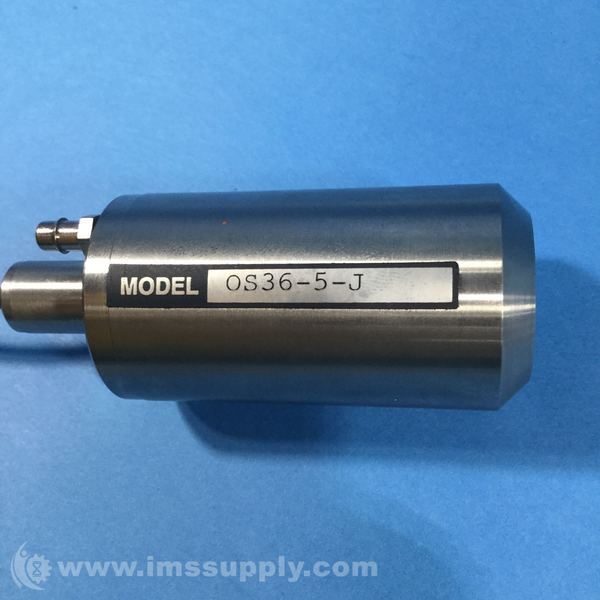

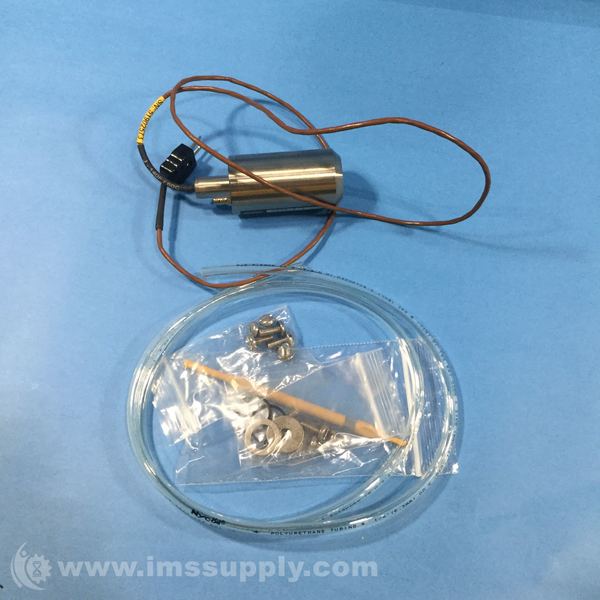

Omega OS36-5-J-140F-GMP Infrared Thermocouple
Infrared thermocouple with stainless steel housing and silicon window, hermetically encapsulated.
Specifications
- Accuracy: �2% of nominal range; blackbody source
- Repeatability: �1% rdg
- Temperature Coefficient: �0.02% nominal range per degrees F
- Temperature Compensation Range: 80 to 200 degrees F
- Operating Ambient Temperature Range: 0 to 185 degrees F
- Storage Temperature Range: -50 to 250 degrees F
- Output Impedance: 3 kO
- Response Time: 80ms
- Spectral Response: 6.5 to 14 microns
- Field of View: 60 degrees
- Dimensions: 1.75 x 0.5 inches
- Housing: Stainless steel with silicon window, hermetically encapsulated
- Weight: 0.5 oz head only
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
