OMEGA RTDM12-G1/8-3MM-13MM-A COMPACT RTD SENSOR
Quick Overview
Manufactured By: OMEGA
Manufacturer Part Number: RTDM12-G1/8-3MM-13MM-A
IMS Product Code: 2132745
Packaging: Sold Individually
Description:

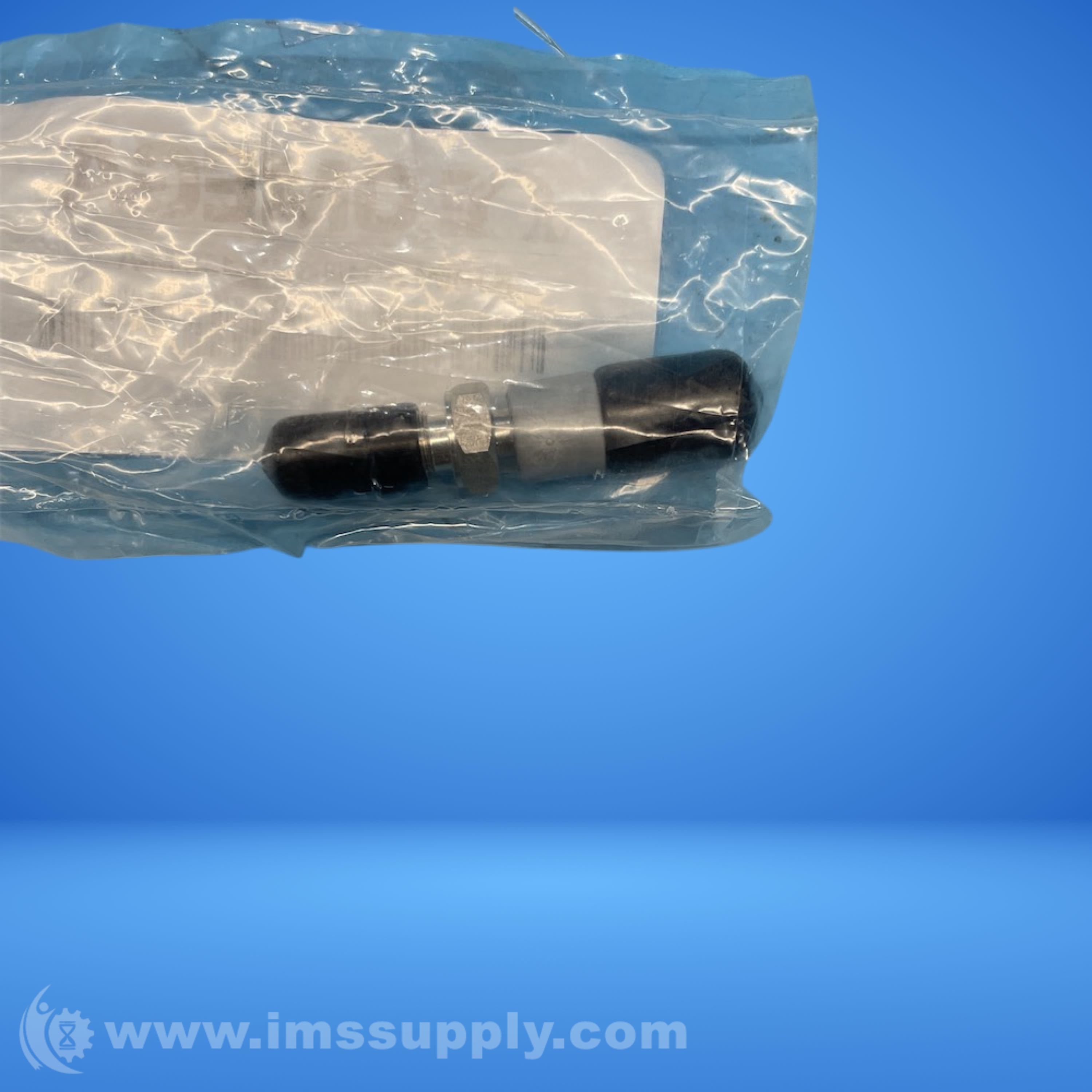

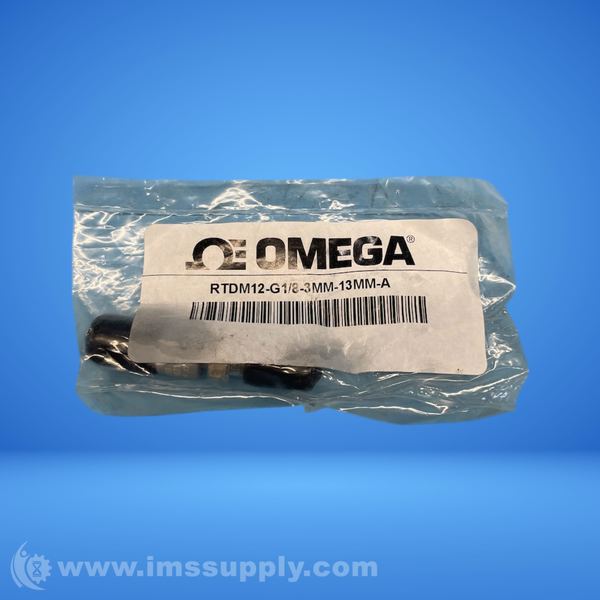

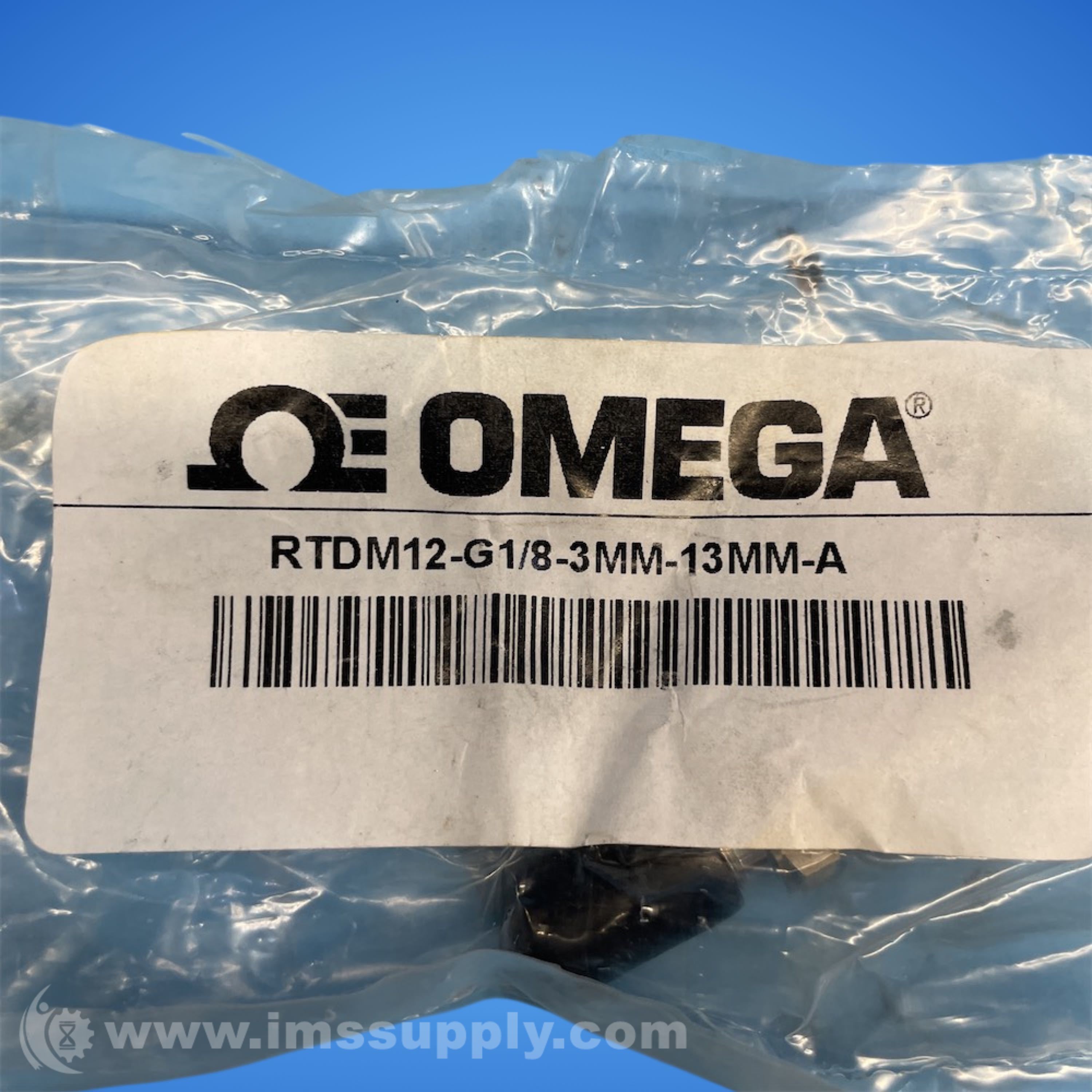

Omega RTDM12-G1/8-3MM-13MM-A Compact RTD Sensor
Compact RTD temperature sensor with 3 mm diameter and 13 mm length probe, G1/8 BSPP male process connection, and M12 4-pin male connector. Constructed from 316SS with Class A accuracy per IEC60751.
Specifications
- Accuracy: Class A
- Electrical Connection: M12 4 pin Male
- Enclosure Ratings: IP67
- Probe Diameter: 3 mm
- Probe Length: 13 mm
- Process Connection Size: 1/8 in
- Process Connection Type: BSPP Male
- Process Temperature, Max: 120 degrees C
- Process Temperature, Min: -50 degrees C
- RTD Type: 100 O Pt Sensor
- Response Time: 5 sec
- Case Material: AISI 316SS
- Number of Wires: 4
- Nominal Resistance: 100 O
- Insulation Resistance: 100 MO
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 3 In Stock
Ships today if ordered in the next 11 hours and 59 minutes.
New - Missing Box (Special):
rfr to sku 478092 for mfr & pn
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 59 minutes.
