OMEGADYNE INC LCHD-500 LOW PROFILE "PANCAKE STYLE" LOAD CELL
Quick Overview
Manufactured By: OMEGADYNE, INC
Manufacturer Part Number: LCHD-500
IMS Product Code: 1730032
Packaging: Sold Individually
Description:

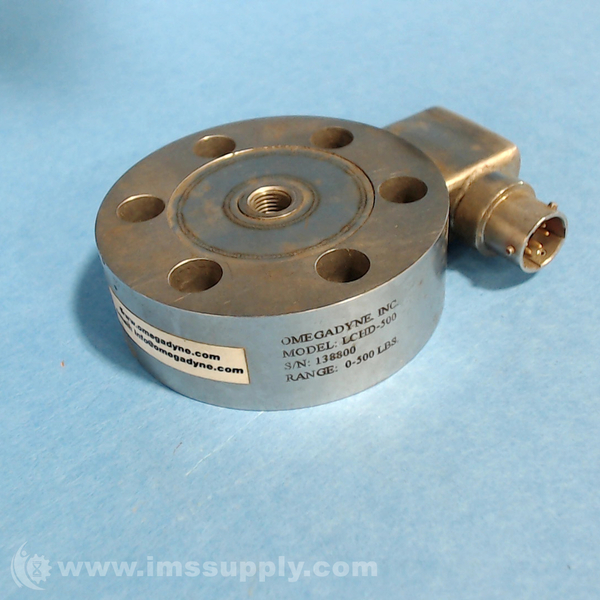

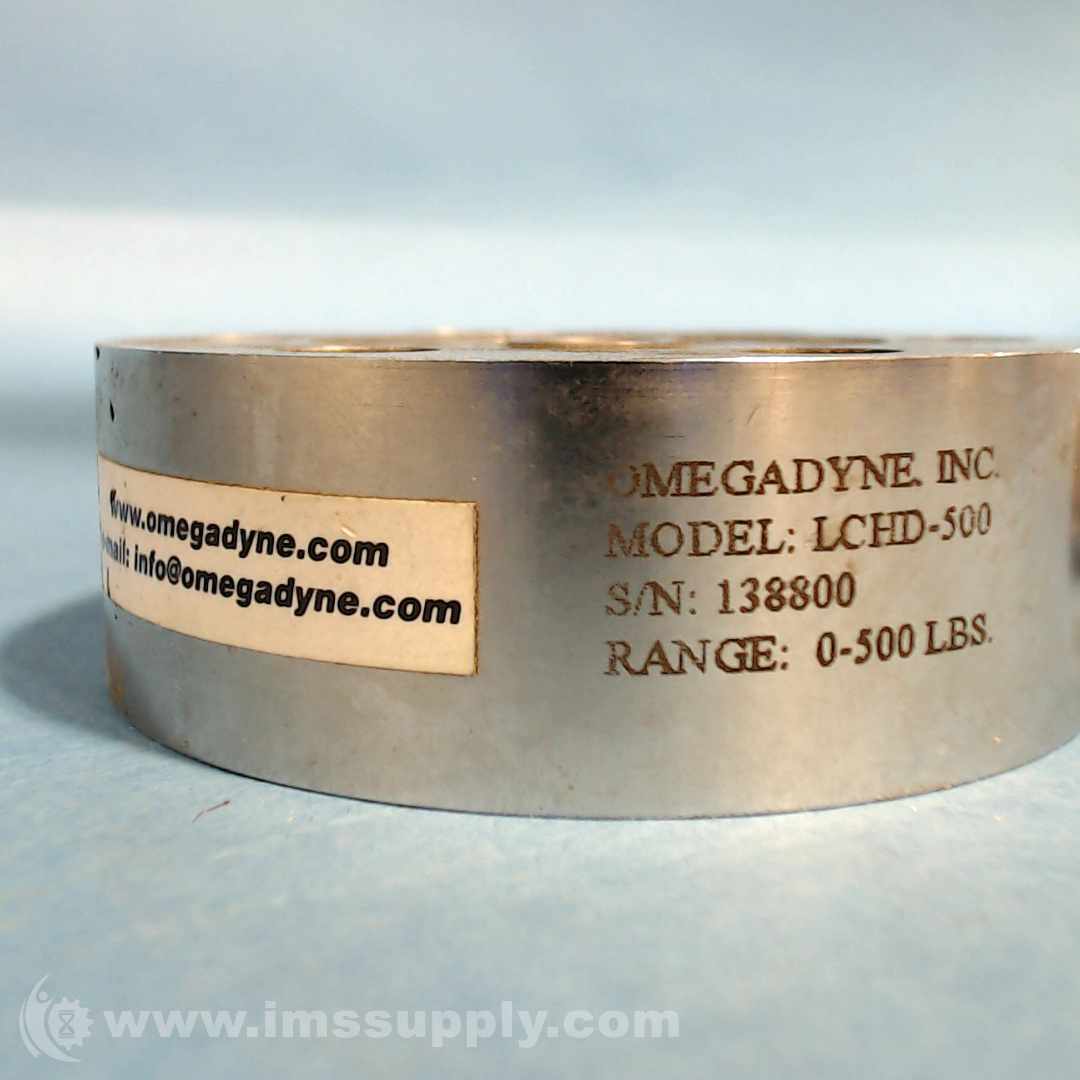

OMEGADYNE INC LCHD-500 Low Profile "Pancake Style" Load Cell
Specifications:
- Excitation: 10 Vdc (15 V max)
- Output (FSO):
- ≤25 lb/10 kgf: 2 mV/V ±0.25%
- ≥50 lb/20 kgf: 3 mV/V ±0.25%
- 5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
- Linearity:
- ≤25 lb/10 kgf: ±0.20% FSO
- ≥50 lb/20 kgf: ±0.10% FSO
- Hysteresis:
- ≤25 lb/10 kgf: ±0.10% FSO
- ≥50 lb/20 kgf: ±0.08% FSO
- Repeatability:
- ≤25 lb/10 kgf: ±0.1% FSO
- ≥50 lb/20 kgf: ±0.03% FSO
- Zero Balance: ±1% of FSO
- Operating Temp Range: -54 to 121°C (-65 to 250°F)
- Compensated Temp Range: 16 to 71°C (60 to 160°F)
- Thermal Effects:
- Zero: 0.0036% FSO/°C
- Span: 0.0036% FSO/°C
- Safe Overload: 150% of capacity
- Ultimate Overload: 300% of capacity
- Input Resistance: 350 ±10 Ω
- Output Resistance: 350 ±10 Ω
- FS Deflection: 0.025 to 0.076 mm (0.001 to 0.003") typical
- Construction: 17-4 PH stainless steel
- Electrical:
- ≤5000 lb/2000 kgf: DT02H-10-6P
- >5000 lb/2500 kgf: MS3102E-14S-6P (or equiv.)
- Mating Connector (Included):
- ≤5000 lb/2000 kgf: PT06F10-6S
- >5000 lb/2500 kgf: MS3102E-14S-6S (or equiv.)
