OMRON E2EH-X7D1-M1G PROXIMITY SENSOR
Quick Overview
Manufactured By: OMRON CORPORATION
Manufacturer Part Number: E2EH-X7D1-M1G
IMS Product Code: 2138874
Packaging: Sold Individually
Description:

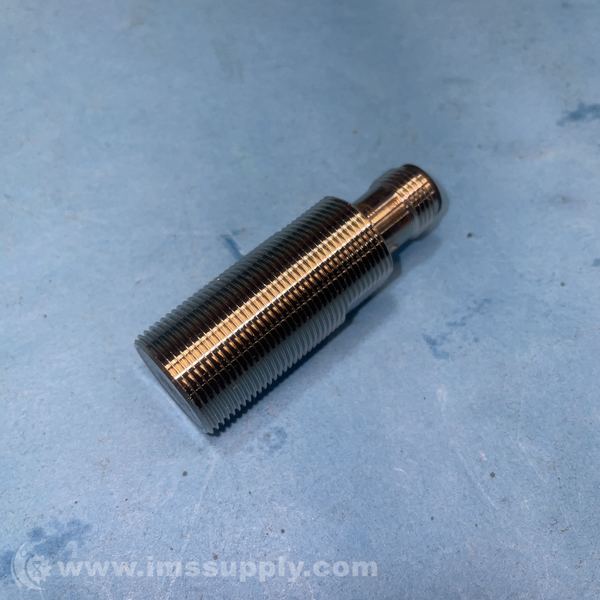

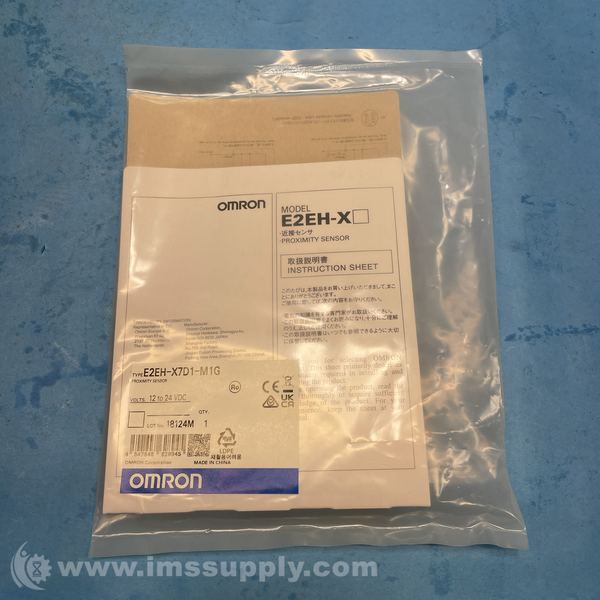

Omron E2EH-X7D1-M1G Proximity Sensor
M18 shielded proximity sensor, DC 2-wire, NO, polarity protected, 7 mm sensing distance, M12 connector
Specifications
- Sensing head size: M18
- Type: Cylinder type (with screw), Shielded
- Power source: DC 2-wire models
- Sensing distance: 7 mm ±10%
- Setting distance: 0 to 5.6 mm
- Differential distance: 15% max. of sensing distance
- Sensing object: Ferrous metal
- Standard sensing object: Iron 21 x 21 x 1 mm
- Response frequency: 300 Hz
- Power supply voltage: 12 to 24 VDC
- Operating voltage range: 10 to 32 VDC
- Leakage current: 0.8 mA max.
- Control output: 3 to 100 mA
- Residual voltage: 3 V max.
- Indicator: Operation indicator (red), Operation setting indicator (yellow)
- Operation mode: NO
- Polarity: Polarity protected
- Protective circuit: Output short-circuit protection, Surge suppressor
- Ambient temperature (Operating): 0 to 100 degrees C
- Ambient temperature (Storage): -25 to 70 degrees C
- Ambient humidity (Operating): 35 to 95 %
- Ambient humidity (Storage): 35 to 95 %
- Temperature influence: ±10% max. of sensing distance at 23 degrees C
- Voltage influence: ±10% max. of sensing distance at rated voltage
- Insulation resistance: 50 MO min. at 500 VDC
- Dielectric strength: 1000 VAC 50/60 Hz 1 min
- Vibration resistance: 10 to 55 Hz, 1.5 mm double amplitude
- Shock resistance: 1000 m/s2
- Degree of protection: IEC: IP67, DIN40050-9 IP69K

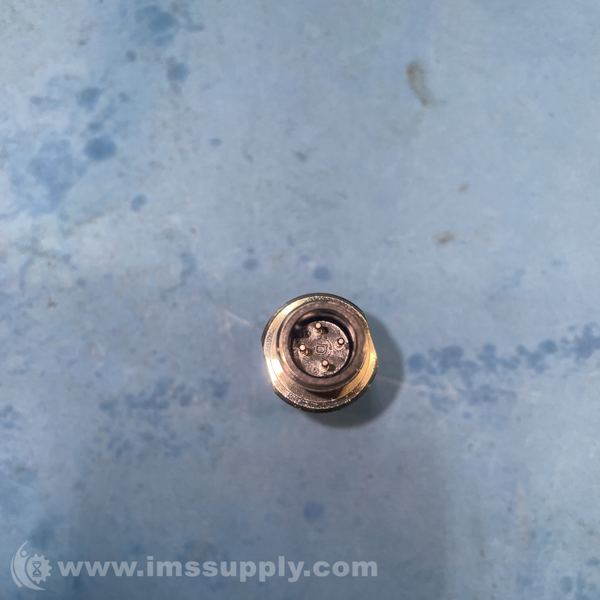

- Connection method: M12 connector
- Material: Case: Stainless steel (SUS316L), Sensing surface: PBT, Clamping nuts: Stainless steel (SUS316L)
- Overall length: 53 mm
- Threaded length: 38 mm

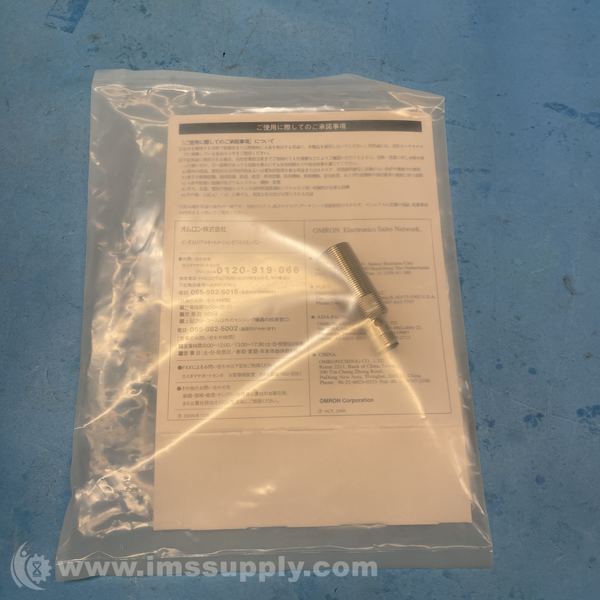

New - Open Box (Special):
Missing clamping nuts.
