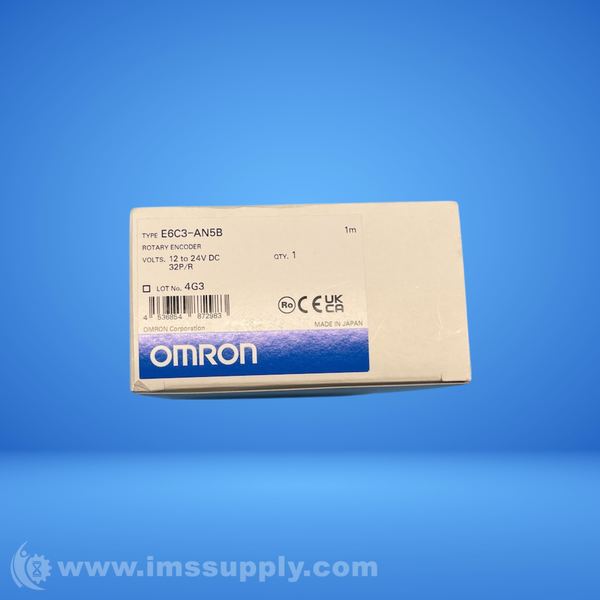

OMRON E6C3-AN5B ABSOLUTE ROTARY ENCODER
Quick Overview
Manufactured By: OMRON CORPORATION
Manufacturer Part Number: E6C3 AN5B
IMS Product Code: 1951926
Packaging: Sold Individually
Description:
Omron E6C3-AN5B Absolute Rotary Encoder
Absolute rotary encoder with 50 mm diameter, 32 P/R resolution, PNP open collector output, 12-24 VDC power supply, and IP65 protection.
Specifications
- Encoding method: Absolute
- Resolution: 32 P/R
- Output code: Binary code
- Control output: PNP open collector
- Connection method: Pre-wired models (Cable length: 1 m)
- Diameter: 50 mm dia.
- Power supply voltage: 12 to 24 VDC (-10% to +15%)
- Current consumption: 70 mA max.
- Inrush current: Approx. 6 A (0.8 ms)
- Output type: PNP open collector
- Source current: 35 mA max.
- Residual voltage: 0.4 V max. (at source current 35 mA)
- Logic: Positive logic (high = 1, low = 0)
- Direction of rotation: Output code increases for CW (as viewed from end of shaft)
- Max. response frequency: 20 kHz
- Rise and fall times of output: 1 µs max. (Cable length: 1 m, load current: 35 mA)
- Starting torque: Room temperature: 10 mN.m max. Low temperature: 30 mN.m max.
- Moment of inertia: 2.3 x 10-6 kg.m2 max.
- Shaft loading: Radial: 80 N Thrust: 50 N
- Max. permissible rotation: 5000 r/min
- Ambient temperature: Operating: -10 to 70 ? (with no icing) Storage: -25 to 85 ? (with no icing)
- Ambient humidity: Operating: 35 to 85 % (with no condensation) Storage: 35 to 85 % (with no condensation)
- Insulation resistance: Between charged parts and the case: 20 MO or higher (500 VDC megger)
- Dielectric strength: Between charged parts and the case: 500 VAC 50/60 Hz 1 min
- Vibration resistance: Destruction: 10 to 500 Hz, 2-mm or 150 m/s2 double amplitude for 11 min 3 times each in X, Y, and Z directions
- Shock resistance: Destruction: 1000 m/s2 for 3 times each in X, Y, and Z directions
- Degree of protection: IEC: IP65 Company standard: Oil resistance
- Material: Case: Aluminum Main Unit: Aluminum Shaft: SUS303
