OMRON F160-C15E-2 VISION MATE CONTROLLER
Quick Overview
Manufactured By: OMRON CORPORATION
Manufacturer Part Number: F160-C15E-2
IMS Product Code: 2154208
Packaging: Sold Individually
Description:

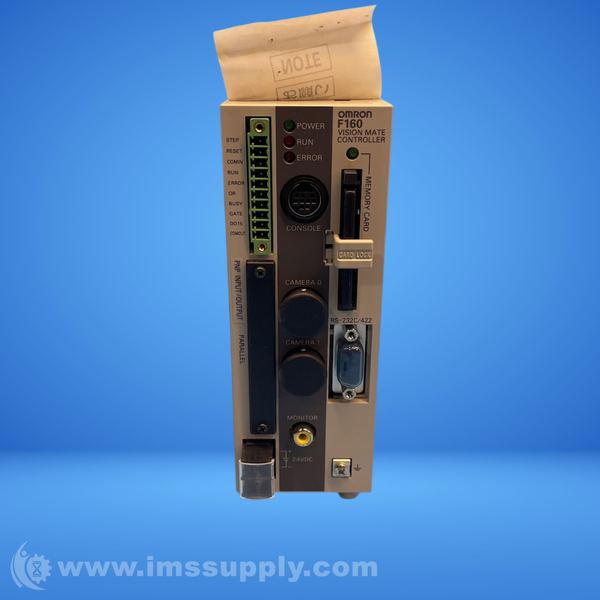

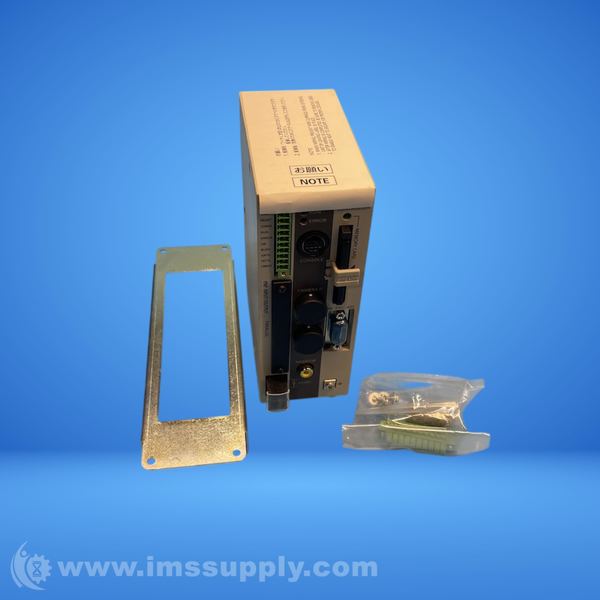

Omron F160-C15E-2 Vision Mate Controller
Machine vision controller with 22x sourcing transistor outputs 24VDC and 13x sinking 24VDC inputs
Specifications
- Dimension: 160 x 56 x 123 mm
- Weight: 576 g
- Controller's I/O: 13x sinking inputs, 22x sourcing transistor outputs
- Operating voltage: 24VDC
- Number of connectable cameras: 2
- Image resolution: 512x484px
- Number of scenes: 32 (expansion possible with memory card)
- Max image saving capacity: 35 images
- Max measurement points per scene: 32
- Usable applications: Presence, Orientation, Dimensions, Defects, Conformity, Position, Chips, Burs
- Measurement data: Gravity and area, Gravity and axis, Gray search, Precise search, Rotation search, Flexible search, Relative search, Defect, Area (variable box), Defect (variable box), Edge position, Edge pitch, Edge width, Density average, Labeling, OCR (Optical Character Recognition) for 1 character, Classification
- Monitor interface: 1 channel (color, monochrome)
- Serial communication: RS-232C/422A, 1 channel
- Current consumption (with 2x F160-SC50 cameras): ~1.6A
- Operating temperature: 0...+50°C
- Supply Voltage: 20.4 ~ 26.4Vdc

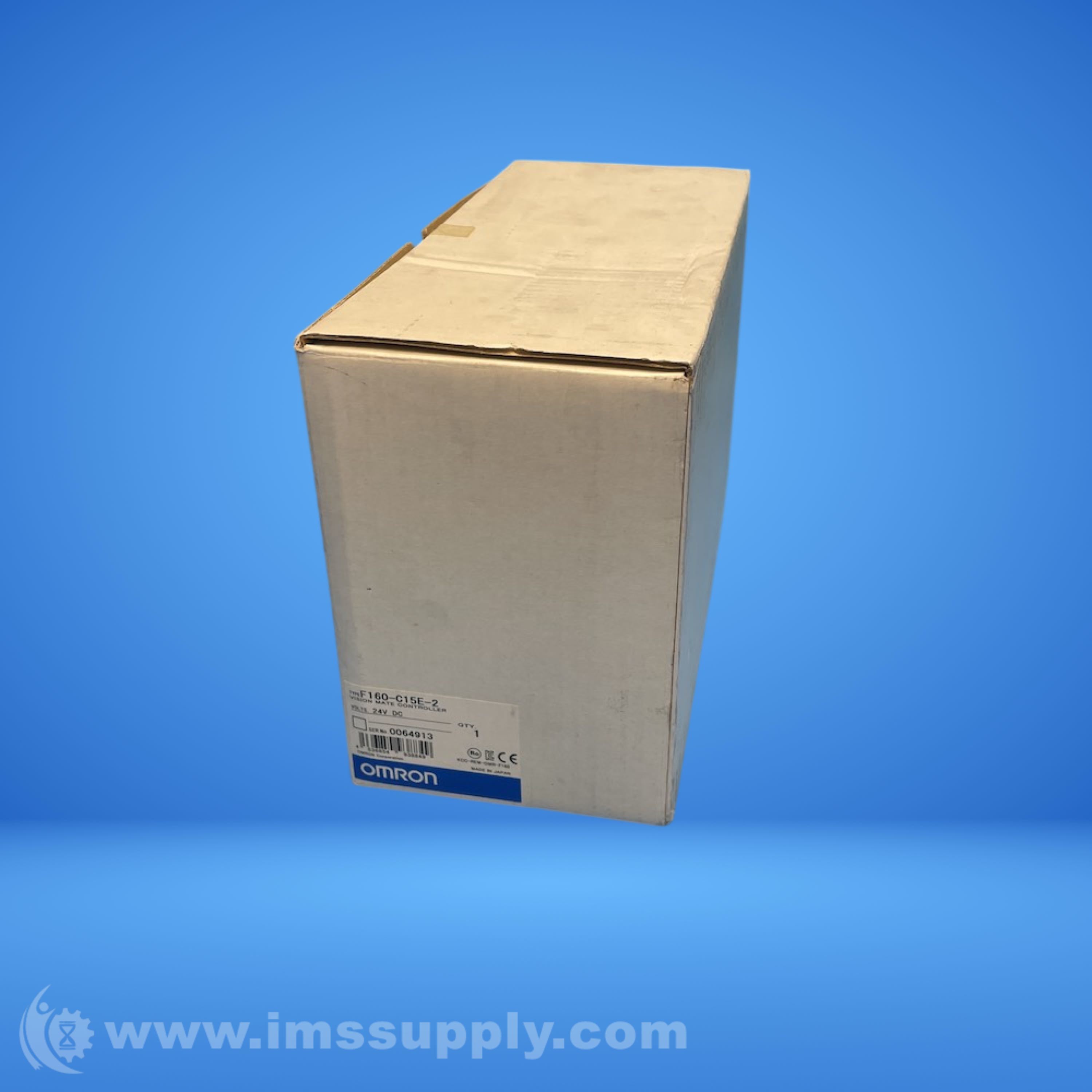

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
