OMRON H5AN-4DM QUARTZ TIMER
Quick Overview
Manufactured By: OMRON CORPORATION
Manufacturer Part Number: H5AN-4DM
IMS Product Code: 2121042
Packaging: Sold Individually
Description:

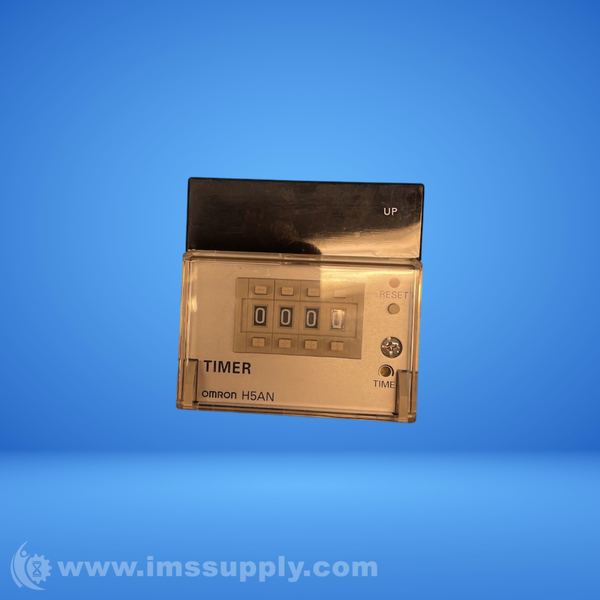

Omron H5AN-4DM Quartz Timer
DIN-sized (72 × 72 mm) Quartz Timer with Multiple Functions
Specifications
- rated supply voltage: 100 to 240 VAC (50/60 Hz), 12 to 24 VDC (permissible ripple: 20% max.)
- operating voltage range: 85% to 110% of rated supply voltage
- power consumption: Approx. 10 VA (at 240 VAC), approx. 5 W (at 24 VDC)
- resetting system and gate input: Reset by power-OFF: min. power OFF time: 0.5 s, External reset or gate (common to contact and transistor inputs): min. reset input signal width: 0.02 s
- one-shot output time: 0.1 to 1 s (adjustable)
- control outputs: Contact output: SPDT, 3 A at 250 VAC, resistive load (cosf = 1), Transistor output: Open collector, 100 mA max. at 30 VDC max.
- power supply for externally connected components: 12 VDC±10%, 80 mA (permissible ripple: 5% max.)
- case color: Light gray (Munsell 5Y7/1)
- accuracy of operating time: ±0.01% ±0.05 s max. (power OFF start), ±0.005% ±0.03 s max. (reset start)
- insulation resistance: 100 MO min. (at 500 VDC)
- dielectric strength: 2,000 VAC, 50/60 Hz for 1 min (between current-carrying and non-current-carrying metal parts), 750 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
- impulse withstand voltage: 6 kV (between power supply terminal), 6 kV (between current-carrying terminal and exposed non-current carrying metal parts)
- vibration resistance: Destruction: 10 to 55 Hz with 0.75-mm double amplitude, Malfunction: 10 to 55 Hz with 0.5-mm double amplitude
- shock resistance: Destruction: 300 m/s2 (approx. 30G), Malfunction: 100 m/s2 (approx. 10G)
- ambient temperature: Operating: -10°C to 55°C, Storage: -25°C to 65°C
- ambient humidity: Operating: 35% to 85%
- life expectancy: Mechanical: 10,000,000 operations min. (under no load at 1,800 operations/h), Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load)
- degree of protection: IP-30
- memory backup storage method: Non-volatile memory (Number of writes: 1 million times, Data retention: 10 years)
- weight: Approx. 360 g
New - Missing Box (Special):

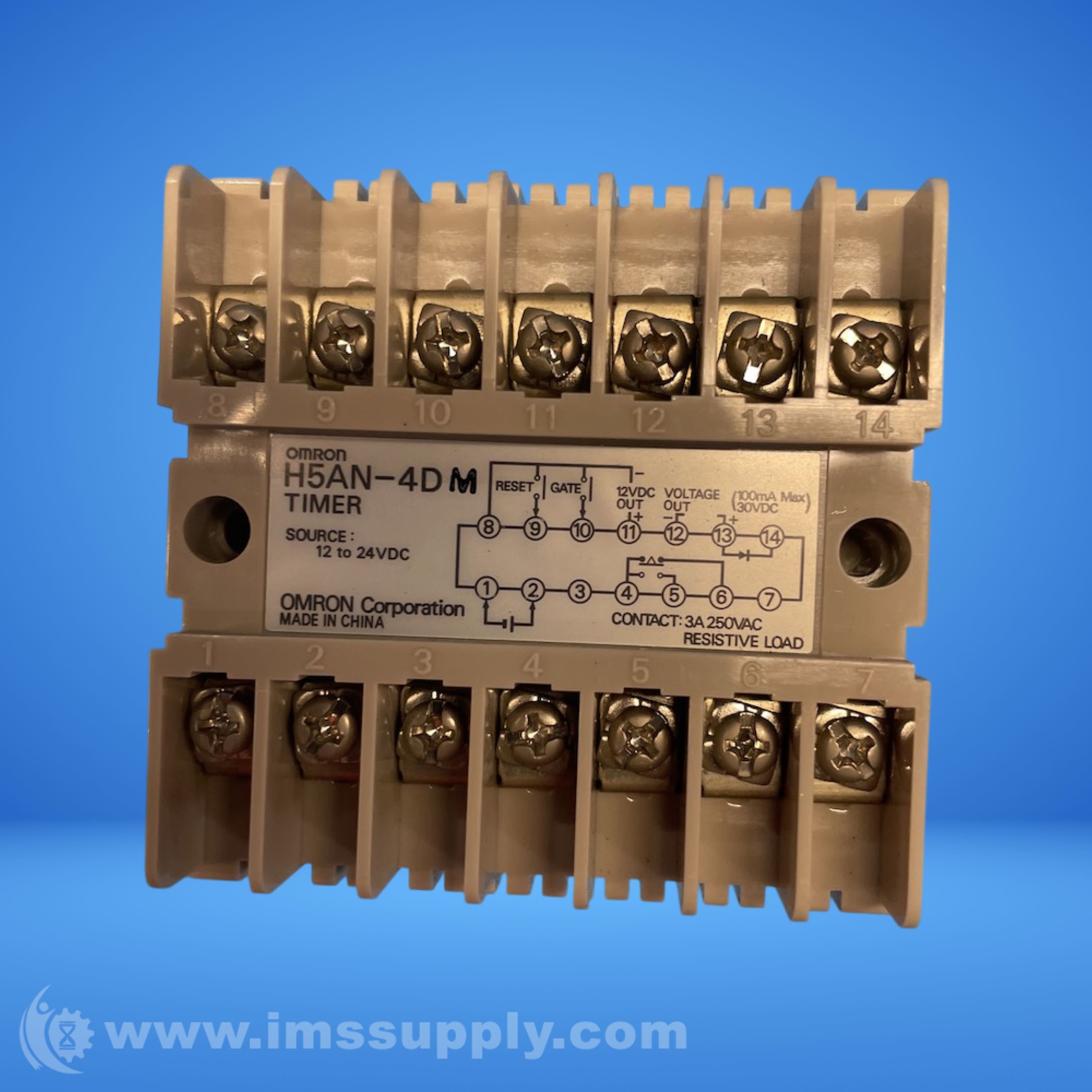

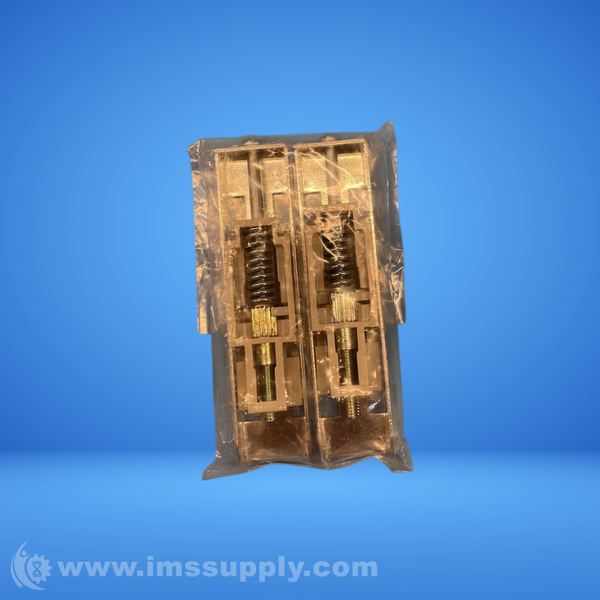

Has qty-1 pk of attachments
