OMRON ZX-LT010 LASER DISPLACEMENT SENSOR
Quick Overview
Manufactured By: OMRON CORPORATION
Manufacturer Part Number: ZX-LT010
IMS Product Code: 1903790
Packaging: Sold Individually
Description:
Omron ZX-LT010 Laser Displacement Sensor
Smart Sensor Laser Displacement Sensor
Specifications
- measuring range: 0 to 10 mm
- resolution: 0.01% F.S.
- linearity: ±0.01% F.S.
- temperature characteristic: 0.1% F.S./degrees C
- response time: 1 ms
- output: Analog
- power supply voltage: 12 to 24 VDC
- current consumption: 140 mA max. (with Slave Units), 60 mA max. (without Slave Units)
- ambient temperature: 0 to 50 degrees C
- ambient humidity: 35 to 85% RH
- insulation resistance: 20 MO min. (at 500 VDC)
- dielectric strength: 1,000 VAC, 50/60 Hz for 1 min
- vibration resistance: 10 to 150 Hz, 0.7-mm double amplitude for 80 min each in X, Y, and Z directions
- shock resistance: 300 m/s² 3 times each in 6 directions (up/down, left/right, forward/backward)
- cable length: 2 m
- weight: Approx. 350 g
- material: PBT (main unit), SUS (sensor head)
- protection rating: IP67
- connection: Pre-wired (2 m)
- output type: Analog (1 to 5 V)
Used (Special):

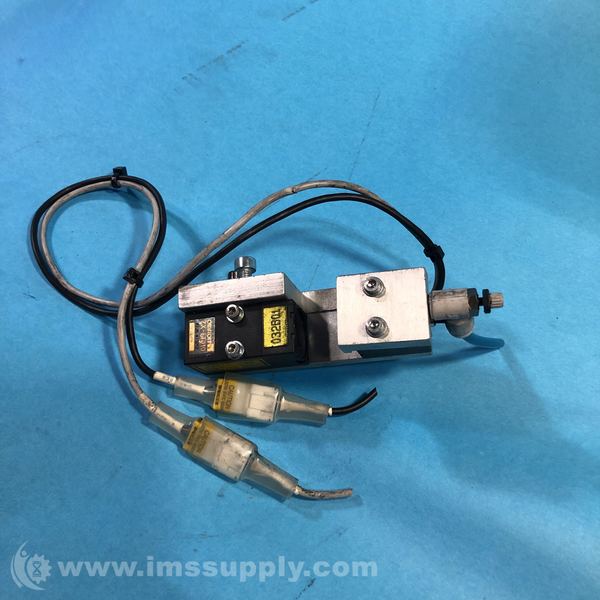

Attached to steel block fixture. Cable snipped off both ends of connectors.
Availability: 1 In Stock
