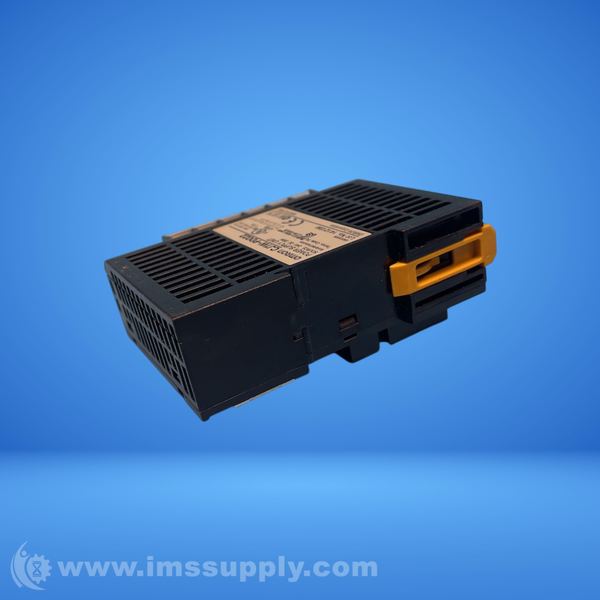

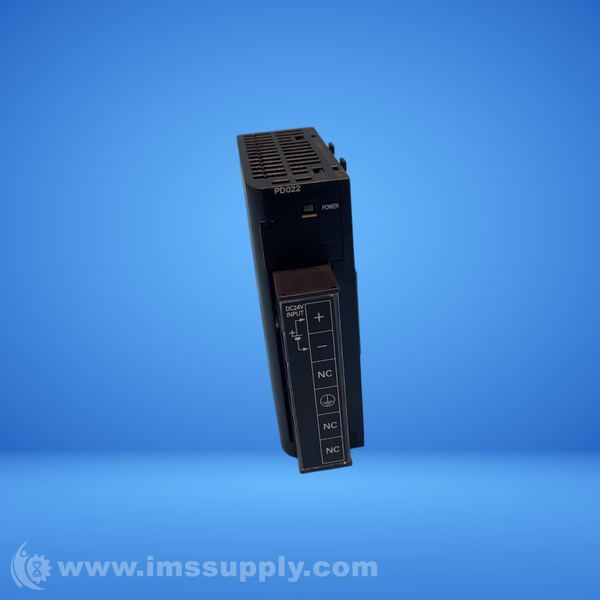

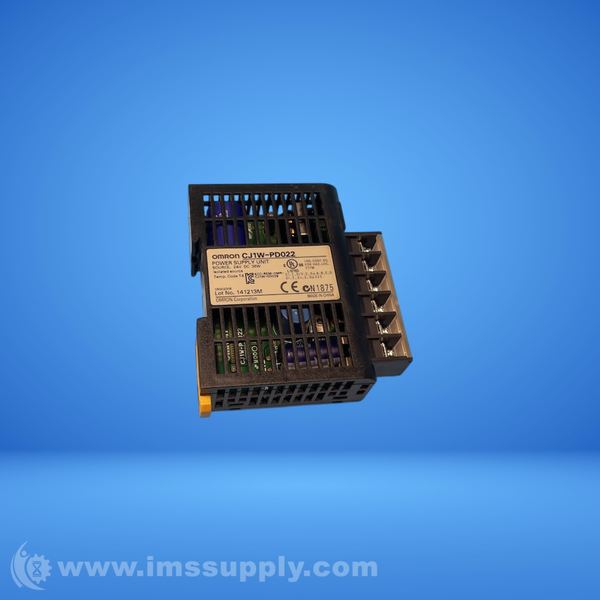

OMRON CJ1W-PD022 POWER SUPPLY UNIT
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: CJ1W-PD022
IMS Product Code: 2141652
Packaging: Sold Individually
Description:
Omron CJ1W-PD022 Power Supply Unit
DC power supply unit for Omron CJ series industrial automation systems
Specifications
- Nominal Power Rating: 1 W
- Power Supply Voltage Rating: 24V DC
- Operating Voltage Range: 21.6 to 26.4 V DC
- 5V DC Output Current Capacity: 2A
- 24V DC Output Current Capacity: 0.4A
- Total Output Power Rating: 19.6 watts
- Inrush Current Rating: 30 A/20 ms max
- Output Voltage: 24 VDC
- Output Capacity: 19.6W
- Case/Package: Module
- Mount: DIN Rail
- Depth: 27 mm
- Height - Seated (Max): 90 mm
- Length: 81.6 mm
- Width: 27 mm
- Environmental Classification: Approvals
- Approvals: CE, cULus
- RoHS: Compliant
- Input Voltage: 24 VDC (Permissible range: 20.4 to 28.8 VDC)
- Output Current: 2 A
- Termination: Screw
- Efficiency: Approximately 80-85% (Typical)
- Overcurrent Protection: Yes
- Overvoltage Protection: Yes
- Insulation Resistance: 20 MO min. (at 500 VDC)
- Dielectric Strength: 2,300 VAC for 1 minute (between primary and secondary circuits)
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature: -25 to 70°C (-13 to 158°F)
- Operating Humidity: 10 to 90% RH (non-condensing)
- Mounting Type: DIN Rail Mount
- Dimensions (W x H x D): 31 mm x 90 mm x 89 mm (1.22 in x 3.54 in x 3.50 in)
- Weight: 0.18 kg (Approximately 0.40 lbs)
- Certifications: CE, UL, cUL

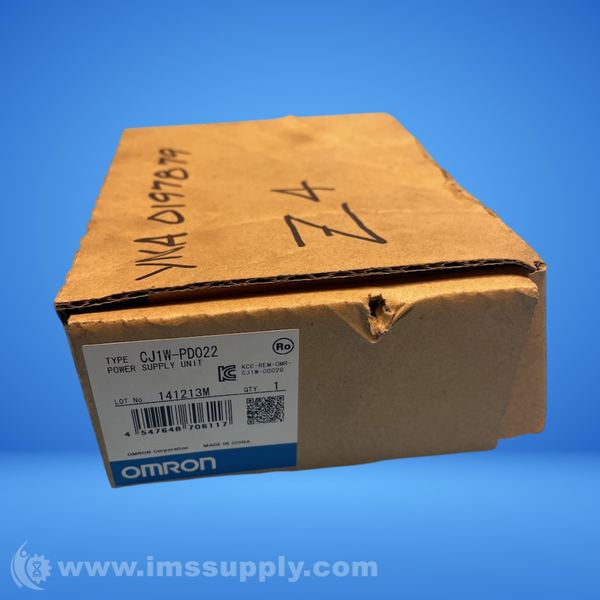

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
