OMRON D2D-2100 SNAP ACTING SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D2D-2100
IMS Product Code: 986932
Packaging: Sold Individually
Description:

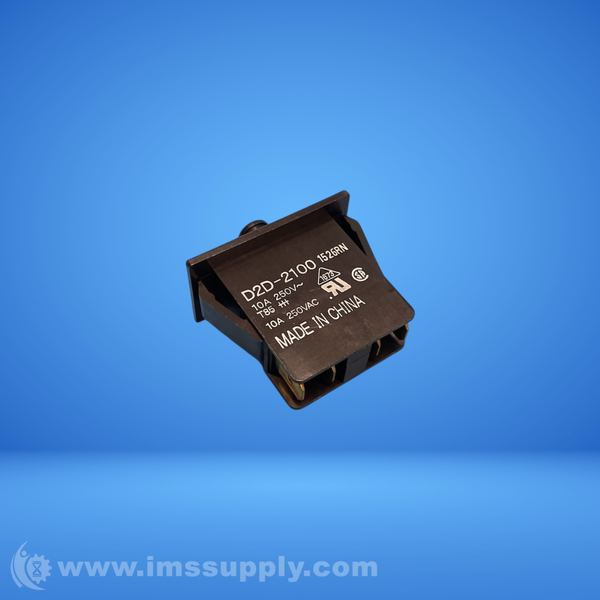

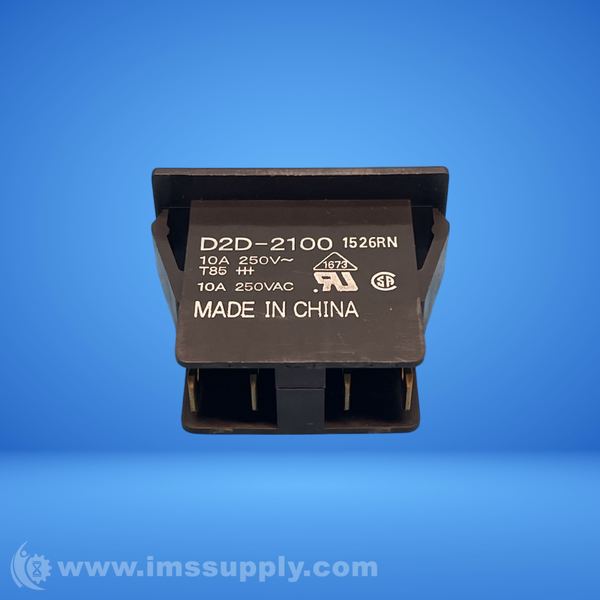

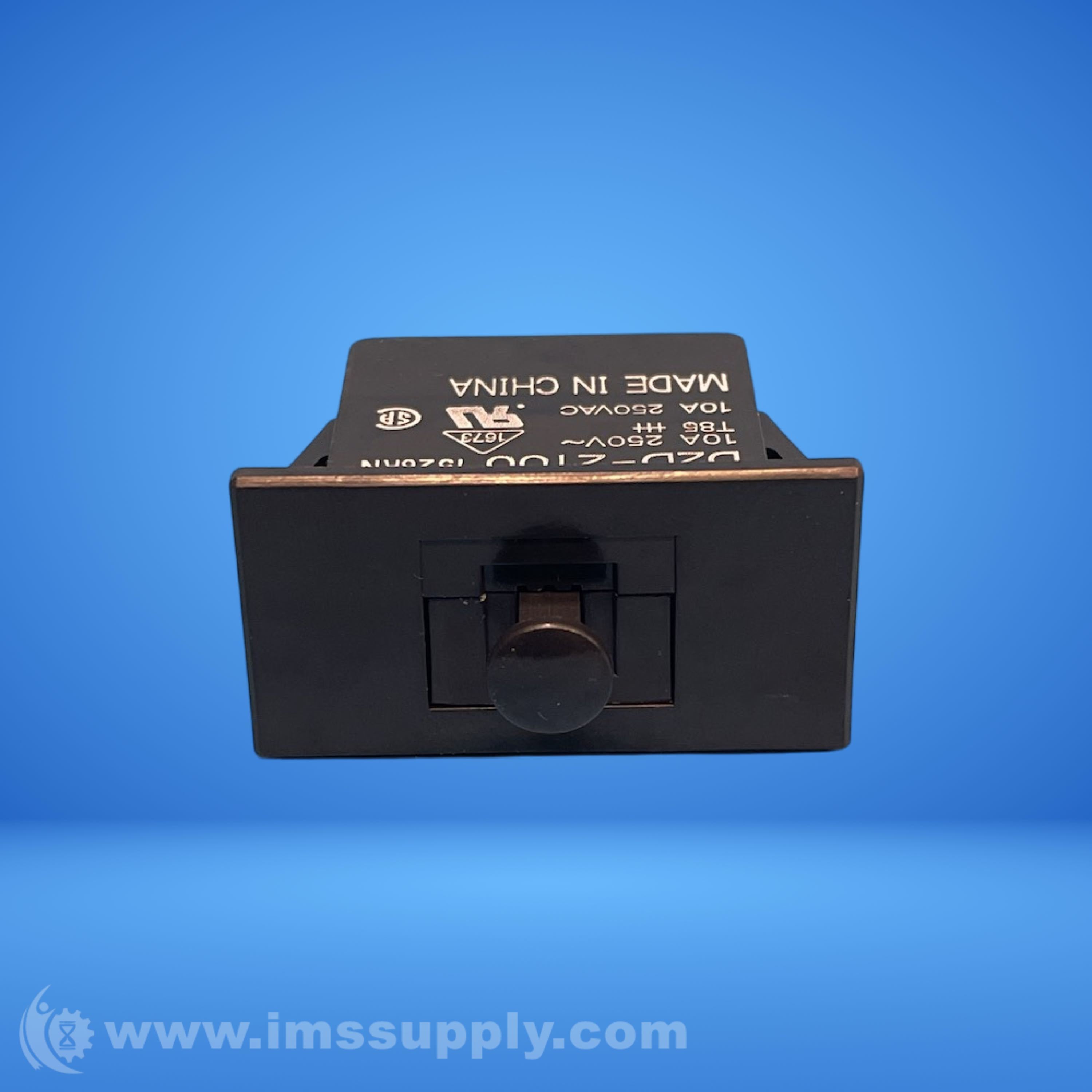

Omron D2D-2100 Snap Acting Switch
Snap Acting/Limit Switch, SPDT, On-off, Latched, Panel Mount
Specifications
- Contact Form: SPDT
- Contact Rating: 10A 250VAC
- Operating Voltage: 250VAC
- Operating Force: 1.96N
- Release Force: 0.49N
- Contact Resistance: 100mO max.
- Insulation Resistance: 100MO min.
- Dielectric Strength: 1000VAC for 1 minute
- Operating Temperature: -25°C to 85°C
- Mechanical Life: 1000000 operations
- Type of switch: door
- Number of positions: 2
- Contacts configuration: SPST-NO + SPST-NC
- AC contacts rating: 16A / 250V AC
- Actuator colour: black
- Switching method: ON-ON
- Mounting: on panel
- Mounting hole diameter: 36.7x13.5mm
- Panel thickness: 1...2.5mm
- Body material: polyamide
- Switches features: with pin
- Button shape: prominent, round
- Manufacturer series: D2D
- Leads dimensions: 6.35x0.8mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
