OMRON D3V-162-1C5 SNAP ACTION SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D3V-162-1C5
IMS Product Code: 2132702
Packaging: Sold Individually
Description:

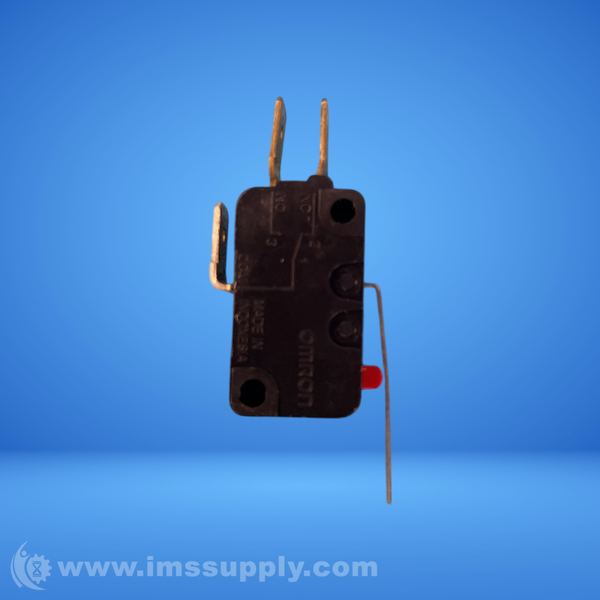

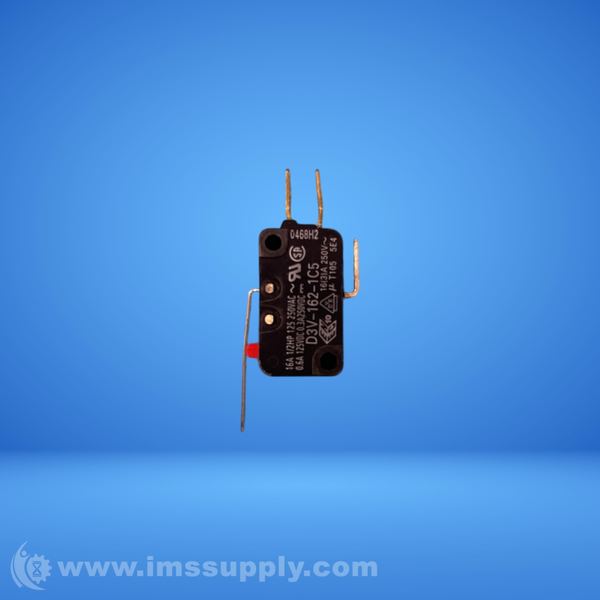

Omron D3V-162-1C5 Snap Action Switch
Snap action switch with hinge lever actuator, SPDT configuration, 16A current rating, and 250V AC/DC voltage rating.
Specifications
- Microswitch Type: Miniature
- Microswitch Actuator: Hinge Lever
- Contact Configuration: SPDT
- Switch Terminals: Quick Connect
- Contact Current Max: 16A
- Contact Voltage AC Nom: 250V
- Contact Voltage DC Nom: 30V
- Operating Force Max: 1.96N
- Operating Temperature: -25...105°C
- Mechanical Durability: 10000000 cycles
- Electrical Life: 100000 cycles
- Body Dimensions: 27.8x10.3x15.9mm
- Lever Length: 27.1mm
- Contact Plating: Silver Plated
- Insulation Resistance: 100MO min.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
