OMRON D3V-166-1C5 SPDT MICROSWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D3V-166-1C5
IMS Product Code: 2132701
Packaging: Sold Individually
Description:

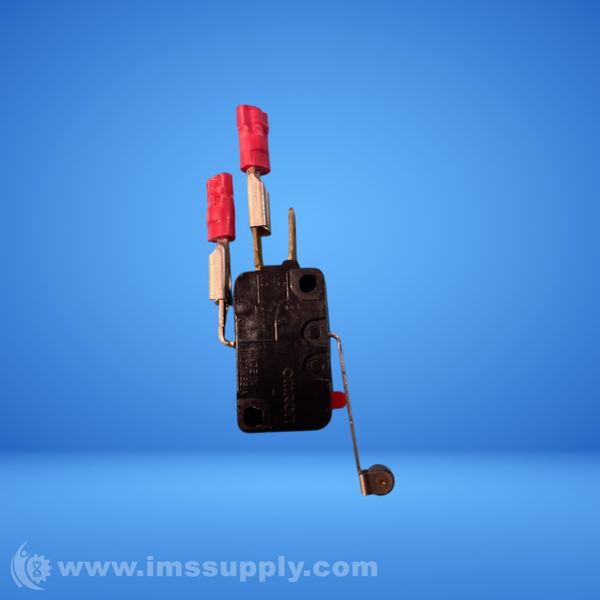

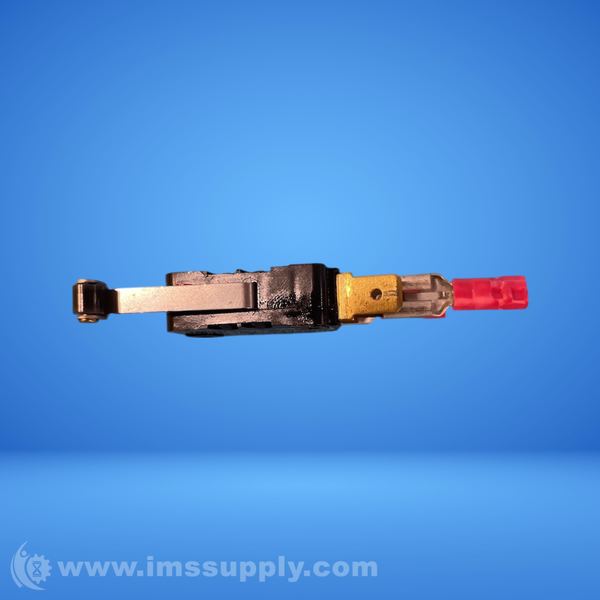

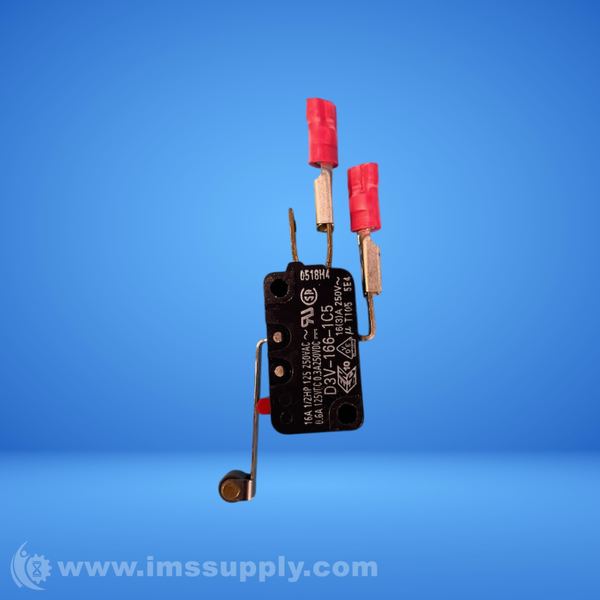

Omron D3V-166-1C5 SPDT Microswitch
Snap acting switch with SPDT configuration, 16A rating, and hinge roller lever actuator.
Specifications
- Microswitch Type: Miniature
- Contact Configuration: SPDT
- Contact Current Max: 16A
- Product Range: D3V Series
- Operating Force Max: 1.23N
- Microswitch Actuator: Hinge Roller Lever
- Switch Terminals: Quick Connect
- Contact Voltage DC Nom: 30V
- Contact Voltage AC Nom: 250V
- Actuator Material: Polyacetal, Resin, Stainless Steel
- Contact Material: Silver
- Mechanical Life: 10 Mcycles
- Mount: Chassis Mount, Screw
- Differential Travel: 1.524 mm
- Electrical Life: 100 kcycles
- Insulation Resistance: 100 MO
- Max Operating Temperature: 105 degrees C
- Min Operating Temperature: -25 degrees C
- Number of Positions: 2
- Overtravel: 1.5748 mm
- Pretravel: 4 mm
- Sealable: IP00
- Depth: 10.3 mm
- Height: 15.9 mm
- Length: 27.8 mm
- Width: 10.3 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
