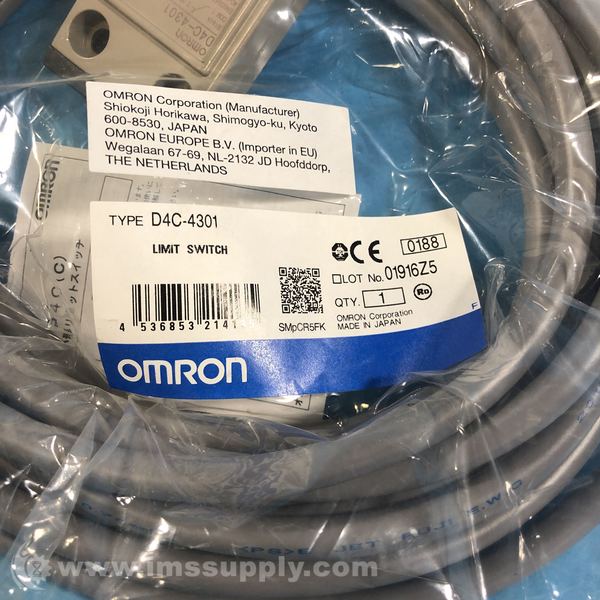

OMRON D4C-4301 ENCLOSED SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D4C-4301
IMS Product Code: 1919529

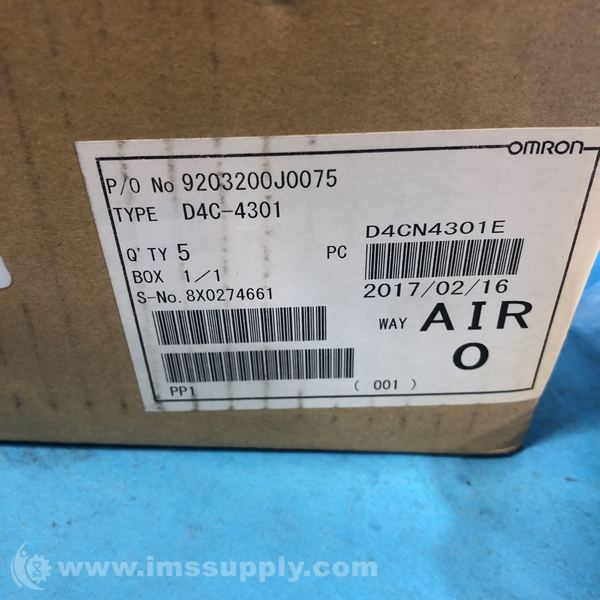

Packaging: Box of 5
Description:
Omron D4C-4301 Enclosed Switch
Enclosed Switch
Specifications
- Shape/Structure: General-purpose Limit switches
- Actuator: Pin plunger 10 dia.
- Electrical ratings: 0.1 A at 125 VAC/ 0.1 A at 30 VDC
- Contact form: SPDT
- Cable specifications: VCTF oil-resistant cable, 4 cores, 5 m
- Degree of protection: IP67
- Frequency: 50/60 Hz
- Load: Micro load
- Ratings (AC): Resistive load: 0.1 A at 125 VAC
- Ratings (DC): Resistive load: 0.1 A at 8 VDC/0.1 A at 14 VDC/0.1 A at 30 VDC
- Earth terminal: With earth wire
- Nominal sectional area: 0.75 mm2
- Diameter: 7.6 dia.
- Ambient temperature: Operating: -10 to 70 ? (with no icing)
- Ambient humidity: 35 to 95 %
- Permissible operating speed: 0.1 mm/s to 0.5 m/s
- Permissible operating frequency: Electrical: 30 operations / 1 minute max., Mechanical: 120 operations / 1 minute max.
- Contact resistance (Initial value): 400 mO max.
- Insulation resistance: 100 MO min. (at 500 VDC)
- Dielectric strength: Between each terminal of the same polarities: 1,000 VAC 50/60 Hz 1 min, Between live-metallic part and ground: 1,500 VAC 50/60 Hz 1 min, Between each terminal and non-live-metallic part: 1,500 VAC 50/60 Hz 1 min
- Impulse withstand voltage: Between live-metallic part and ground: 2.5 kV, Between each terminal and non-live-metallic part: 2.5 kV
- Durability: Electrical: 200,000 operations min. (5 A at 125 VAC), Mechanical: 10 million operations min.
- Vibration resistance: Malfunction: 10 to 55 Hz, 1.5 mm double amplitude
- Shock resistance: Destruction: 1,000 m/s2 max., Malfunction: 500 m/s2 max.
- Classification of protection against electric shock: Class I (with earth wire)
- Operating Force (OF): Standard value 11.77 N max.
- Release Force (RF): Standard value 4.41 N min.
- Pre-Travel (PT): Standard value 1.8 mm max.
- Movement Differential (MD): Standard value 0.2 mm max.
- Over-Travel (OT): Standard value 3 mm min.
- Operating Position (OP): Standard value 15.7±1 mm
- Country of Origin: Japan
- ROHS Status: RoHS Compliant

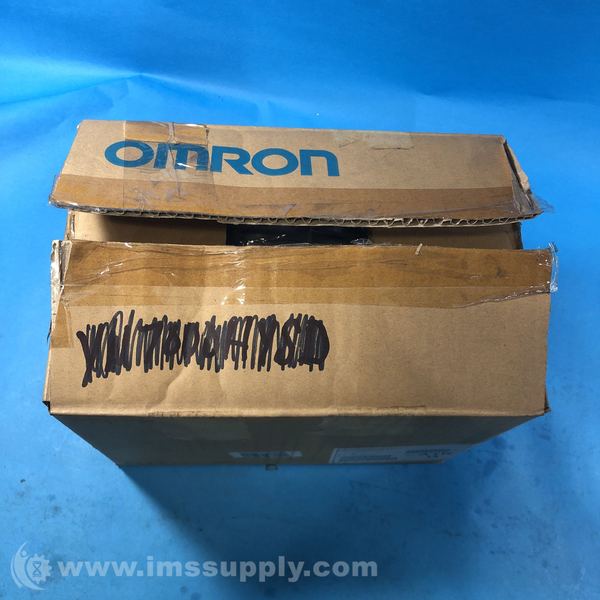

New - Open Box (Special):
Part originally sold as box of 5. Only has 4 pieces available.
Availability: 1 In Stock
