OMRON D4DS-K3 ADJUSTABLE STRAIGHT ACTUATING KEY
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D4DS-K3
IMS Product Code: 2122589
Packaging: Sold Individually
Description:

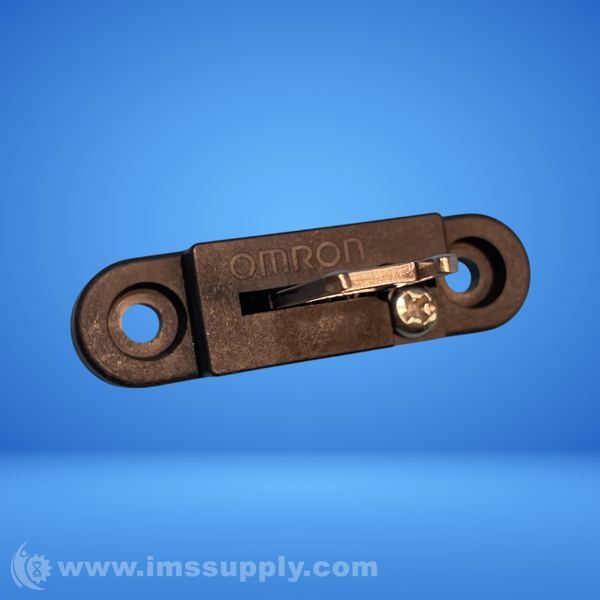

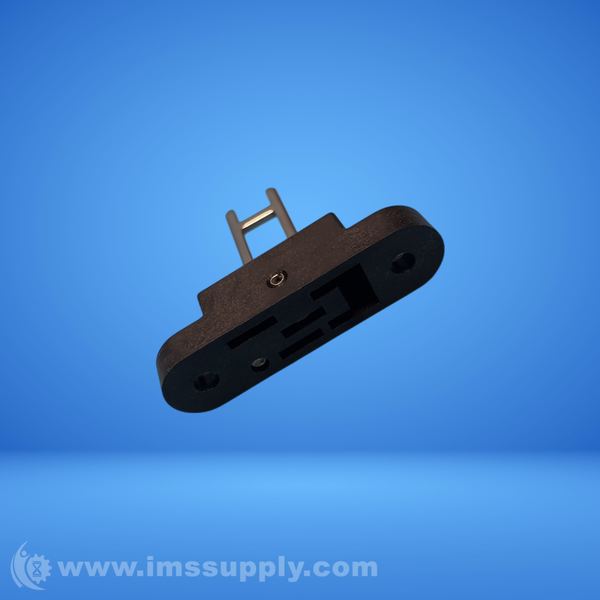

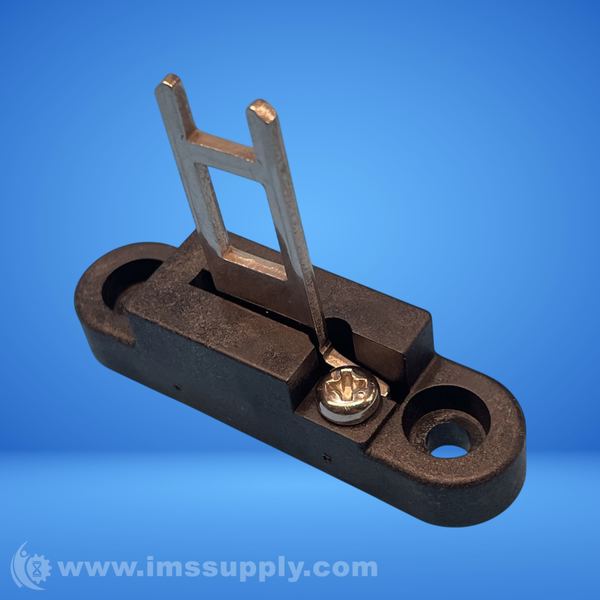

Omron D4DS-K3 Adjustable Straight Actuating Key
Adjustable straight actuating key for safety door switches
Specifications
- Terminal Type: Screw Terminal
- Rated Insulation Voltage (Ui): 250V
- Pollution Degree: 3
- Rated Operating Voltage: 24VAC/DC
- Rated Operating Current: 0.1A
- Switching Capacity: 0.1A 24VDC
- Contact Configuration: 1NC/1NO
- Operating Force: Min. 15N
- Operating Speed: 0.05mm/s to 0.5m/s
- Direct Opening Force: Min. 40N
- Direct Opening Stroke: Min. 10mm
- Contact Resistance: 100mO max.
- Insulation Resistance: 100MO min. at 500VDC
- Dielectric Strength: 1000VAC 50/60Hz 1min between terminals of same polarity,2500VAC 50/60Hz 1min between current-carrying metal parts and ground
- Vibration Resistance: 10 to 55 Hz, 0.75mm single amplitude
- Shock Resistance: 300 m/s² min.
- Durability: Mechanical: 1,000,000 operations min.,Electrical: 100,000 operations min. (24VDC 0.1A)
- Ambient Temperature: -10°C to 80°C (with no icing)
- Ambient Humidity: 95% max.
- Weight: 275g
- Type of safety switch accessories: flexible key
- Mounting: horizontal
- Length: 42 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
