OMRON D5SN-A01 LINEAR DISPLACEMENT SENSOR AMPLIFIER
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: D5SN-A01
IMS Product Code: 2157104
Packaging: Sold Individually
Description:

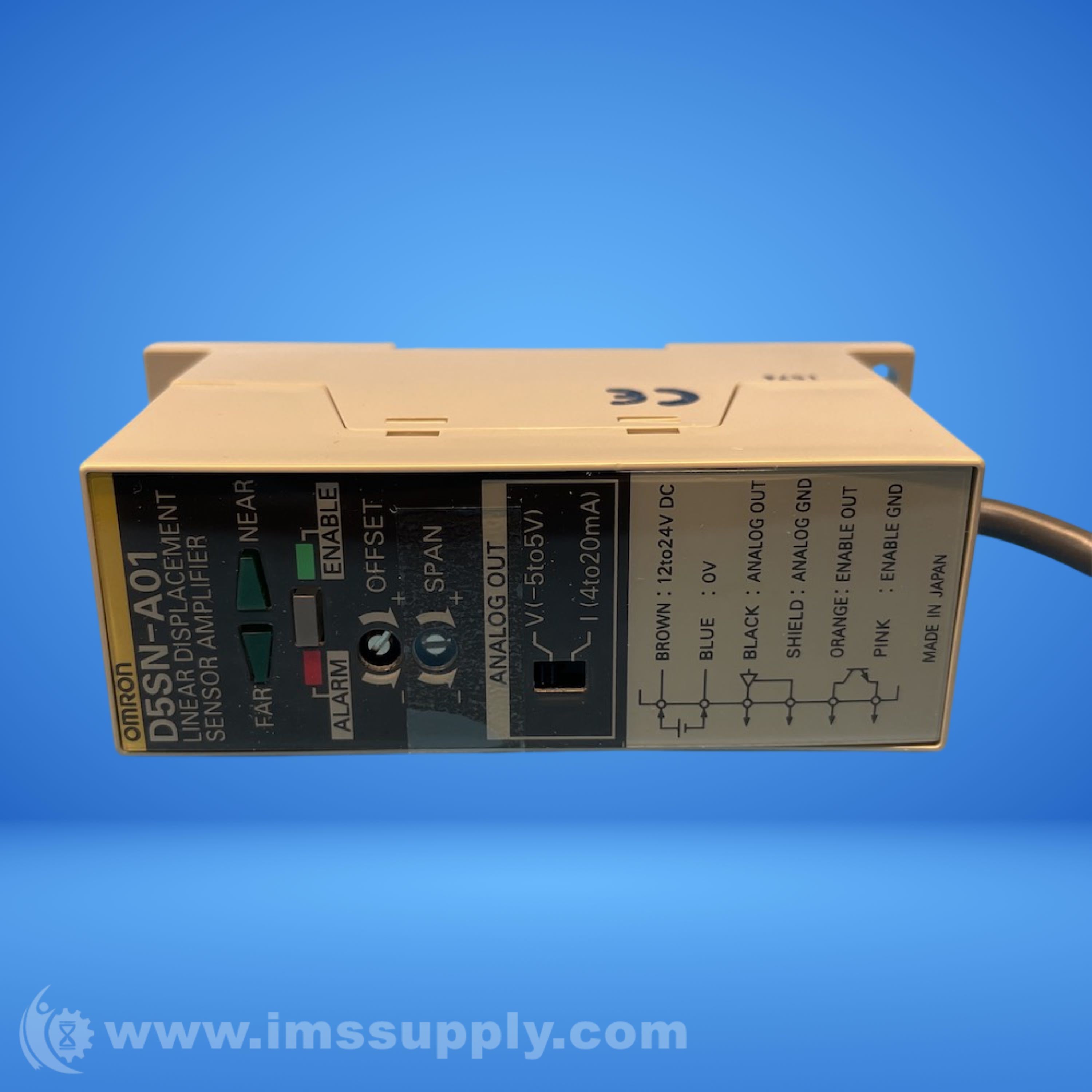

Omron D5SN-A01 Linear Displacement Sensor Amplifier
Amplifier for linear displacement sensor
Specifications
- Supply voltage (allowable range): 12 to 24 VDC (10.8 to 26.4 VDC)
- Current consumption: 80 mA max.
- Analog output: Voltage: -5 to 5 V (load impedance: 10 kO min.), Current: 4 to 20 mA (load impedance: 300 O max.)
- Enable output: NPN open collector
- Output switching current: 100 mA max.
- ON output residual voltage: 1.5 V max.
- OFF collector dielectric strength: 26.4 VDC
- OFF leakage current: 0.1 mA max.
- Degree of protection: IP30
- Ambient operating temperature: -10 to 55 degrees C (with no icing or condensation)
- Ambient operating humidity: 25% to 85% (with no condensation)
- Temperature influence: 0.010% FS/degrees C
- Weight: Approx. 200 g (including the cable)

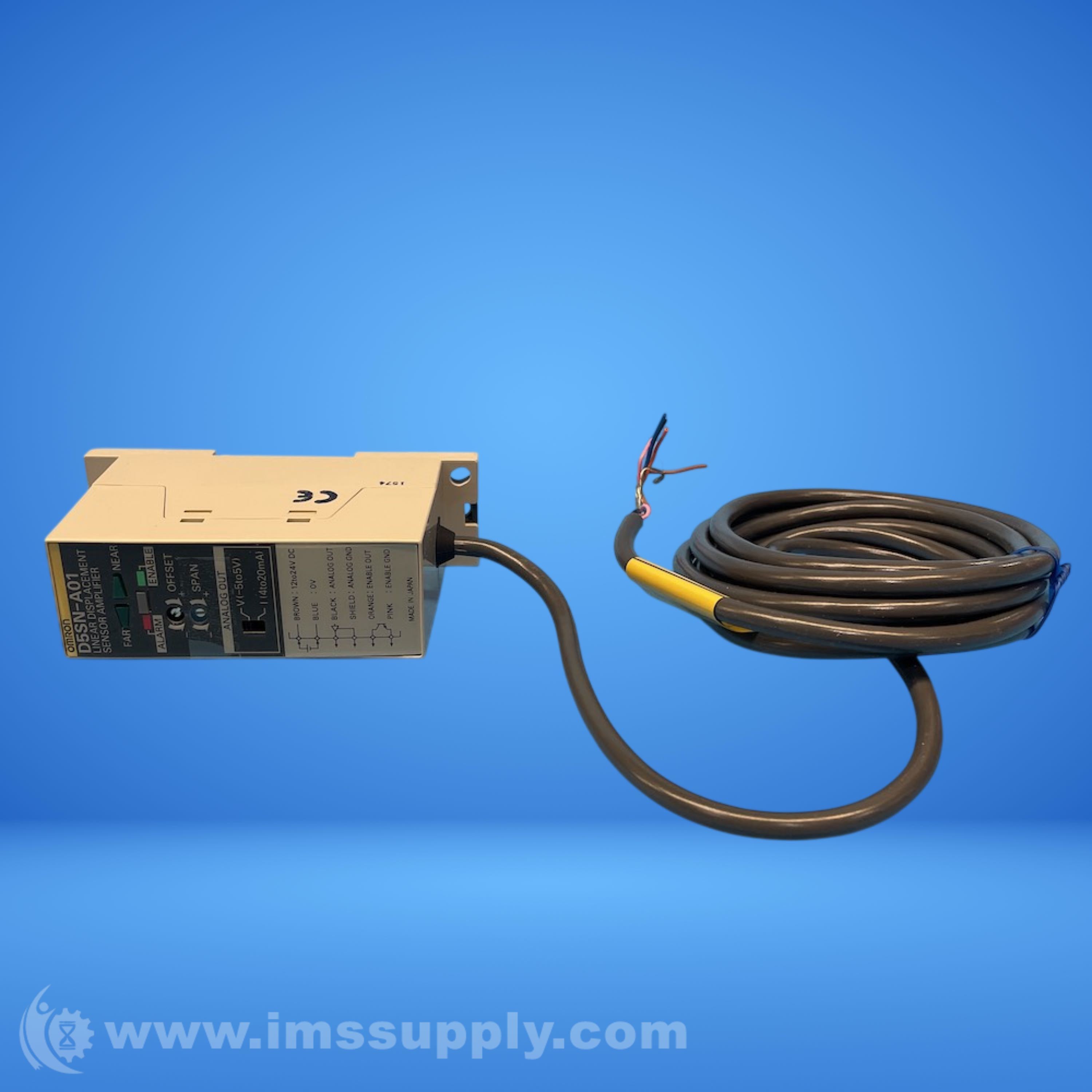

- Connection cable length: 2-m-long, 5-conductor shielded cable
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
