OMRON DRT2-MD32BV-1 DEVICENET REMOTE I/O TERMINAL
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: DRT2-MD32BV-1
IMS Product Code: 2171189
Packaging: Sold Individually
Description:

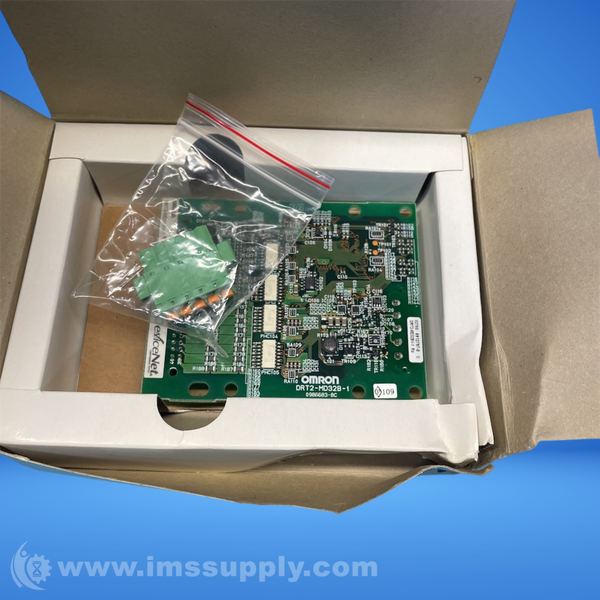

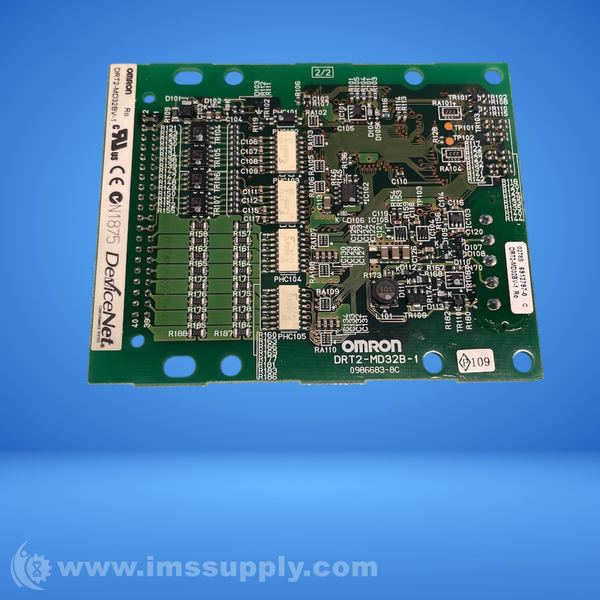

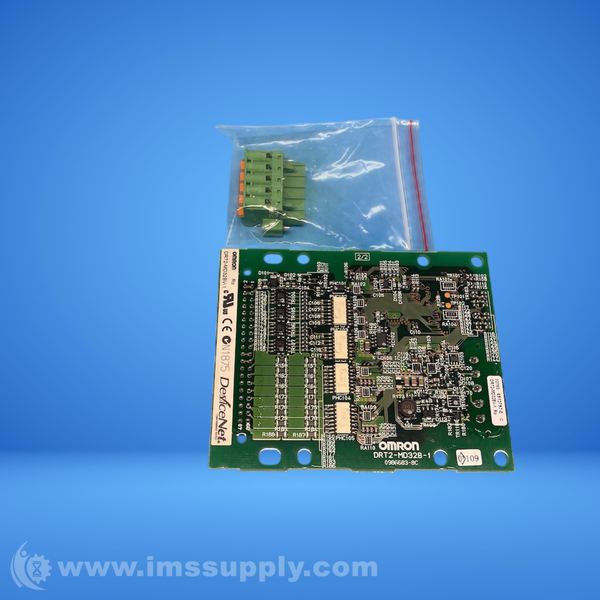

Omron DRT2-MD32BV-1 DeviceNet Remote I/O Terminal
The Omron DRT2- MD32BV-1 Remote Terminal is a DeviceNet I/O module designed to interface 32 DC input and output points for distributed control systems.
Specifications
- Series: DRT2 Series
- Type: DeviceNet Remote Terminal Unit
- Communication Protocol: DeviceNet
- I/O Type: 32-Point (Digital Input/Output)
- Logic Type: DC Positive-Negative-Positive (PNP)
- Rated Input Voltage: 24 VDC
- Input ON Time: 1.5 ms (typical)
- Input OFF Time: 0.5 ms (typical)
- Output ON Time: 1.5 ms (typical)
- Output Current per Point: 0.3 A max
- Total Output Current: 2 A max
- Power Consumption: 1.5 W (typical)
- Connection Type: MIL Connector
- Mounting Type: Circuit Board / DIN Rail (dependent on configuration)
- Network Speed: Standard DeviceNet (up to 500 kbps)
- Diagnostics: I/O status and network error reporting
- Compatible PLCs: Omron DeviceNet-compatible controllers
- Operating Temperature Range: 0 degrees C to +55 degrees C
- Storage Temperature Range: -20 degrees C to +70 degrees C
- Enclosure Protection: Requires mounting in protective panel (not standalone IP rated)
- Compliance: CE, UL, cUL
- Weight: Approx. 0.20 kg (0.44 lb)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 4 In Stock
Ships today if ordered in the next 3 hours and 53 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 3 hours and 53 minutes.
