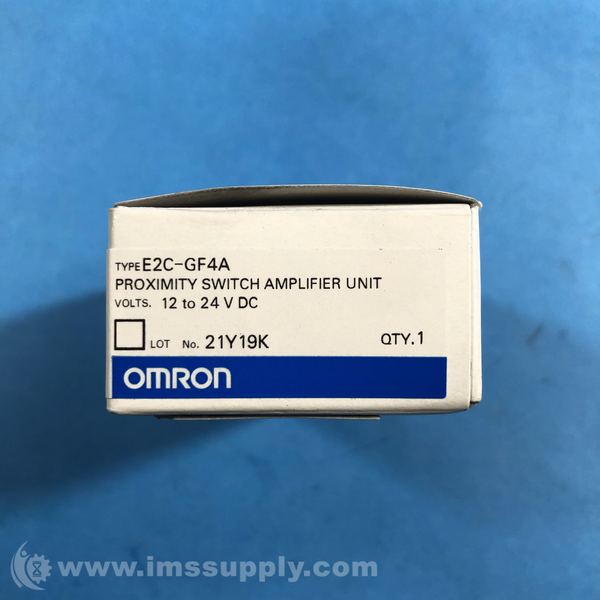

OMRON E2C-GF4A PROXIMITY SWITCH AMPLIFIER UNIT
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: E2C-GF4A
IMS Product Code: 1989362
Packaging: Sold Individually
Description:

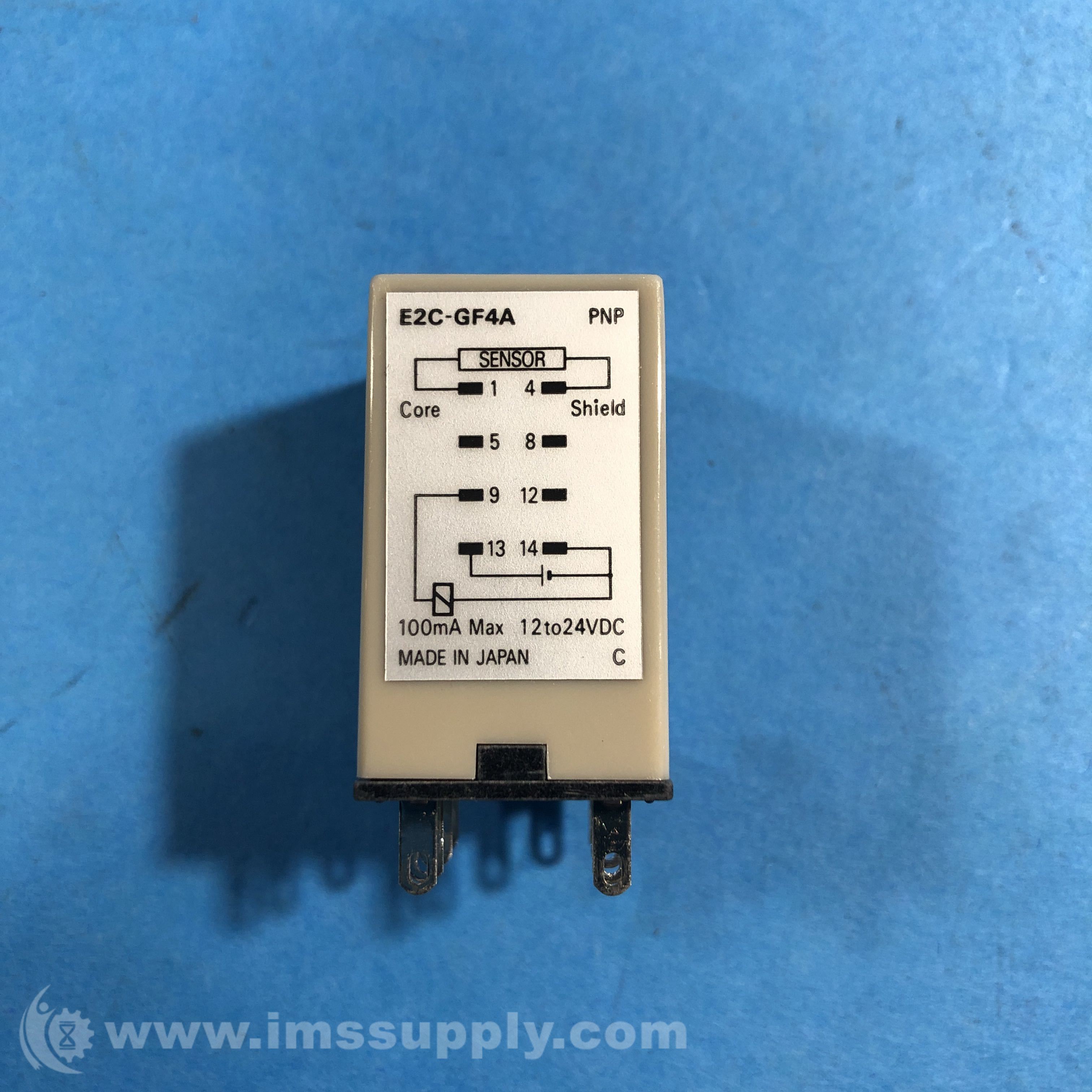

Omron E2C-GF4A Proximity Switch Amplifier Unit
Proximity Switch Amplifier Unit with built-in separator, PNP type
Specifications
- Power Supply Voltage: 12 to 24 V DC
- Current Consumption: 45mA or less
- Detection Distance Adjustment Range: 20 to 100% of rated sensing distance, 4-turn potentiometer
- Hysteresis Variable Range: Fixed hysteresis (10% or less of detection distance)
- Response Time: Refer to the response frequency of the proximity sensor used
- Control Output: PNP output, 100mA or less (DC30V or less), residual voltage 1.5V or less
- Indicator Light: Detection display (red) (OPERATION), Stability display (green) (STABILITY)
- Operational Mode: NO/NC switch
- Ambient Temperature Range: During operation and storage: -10 to +55 degrees C
- Ambient Humidity Range: During operation and storage: 35 to 85% RH
- Temperature Effects: At +23 degrees C within the temperature range of -10 to +55 degrees C, 10% or less of the detection distance
- Insulation Resistance: 50MOhm or more (at DC500V megger)
- Withstand Voltage: AC1500V 50/60Hz 1min between live parts and case
- Vibration (Durability): 10 to 25Hz, double amplitude 2mm, 2h each in X, Y, and Z directions
- Impact (Durability): 100m/s2 3 times each in X, Y, and Z directions
- Connection Method: Not specified
- Weight (Packaged): Approx. 20g

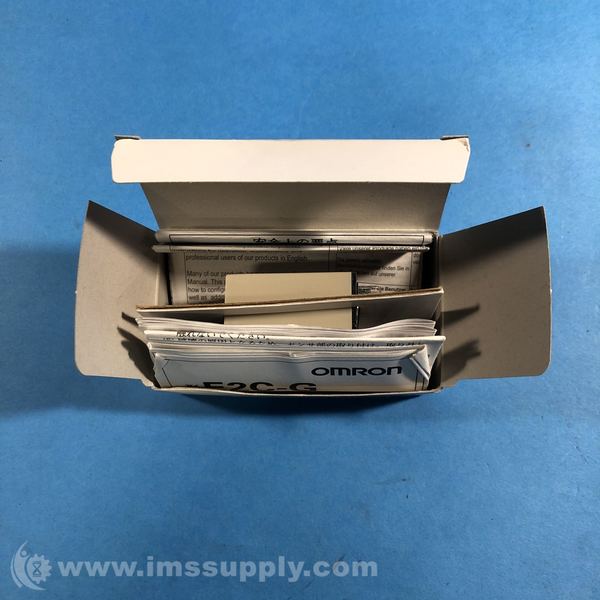

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 39 minutes.
