OMRON E2C-X5AH PROXIMITY SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: E2C-X5AH
IMS Product Code: 2137354
Packaging: Sold Individually
Description:

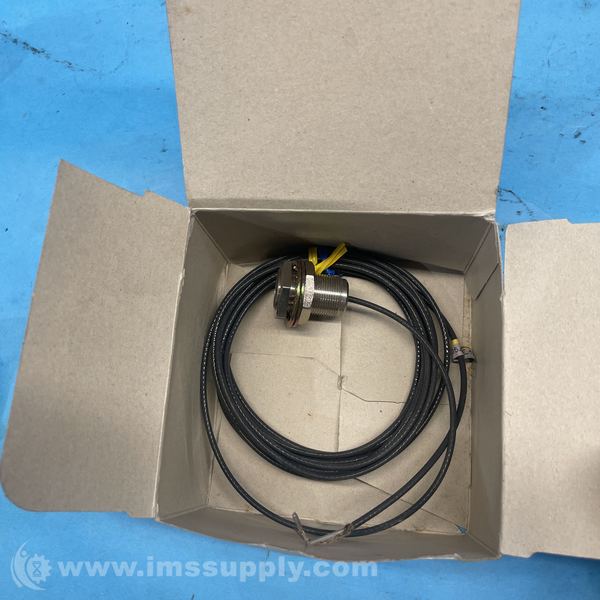

Omron E2C-X5AH Proximity Sensor
Separate Amplifier Proximity Sensor with Adjustment Potentiometer
Specifications
- type: Heat-resistance model, Cylinder type (with screw) Sensor Head, Shielded
- sensing distance: 5 mm
- differential distance: 0.1 mm max.
- sensing object: Ferrous metal (Sensitivity lowers with non-ferrous metals.)
- standard sensing object: Iron 18 x 18 x 1 mm
- response frequency: 300 Hz
- ambient temperature (operating): -10 to 200 degrees C
- ambient humidity (operating): 35 to 95 %
- temperature influence: ±0.2%/degrees C
- vibration resistance: Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
- shock resistance: Destruction: 500 m/s2 3 times each in X, Y and Z directions
- degree of protection: IEC: IP60
- connection method: Pre-wired models (3 m)
- material: Case: Brass Sensing surface: PEEK Cable: Fluoride resin Clamping nuts: Brass nickel plating Toothed washers: Iron zinc plating
- amplifier unit/sensor head of combination: E2C-JC4EH
- output type: NPN
- connection: 3-Wire
- shielded: Yes
- cable length: 3 m
- operating voltage: 12-24VDC
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
