OMRON E2CY-C2A NON-FERROUS PROXIMITY SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: E2CY-C2A
IMS Product Code: 1789497
Packaging: Sold Individually
Description:

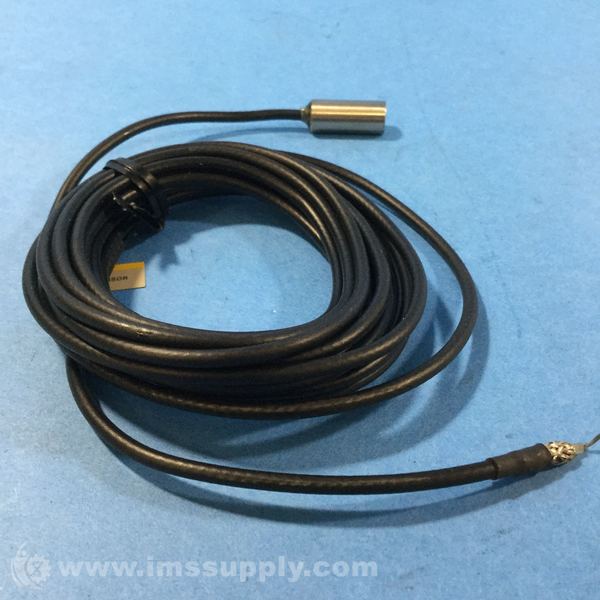

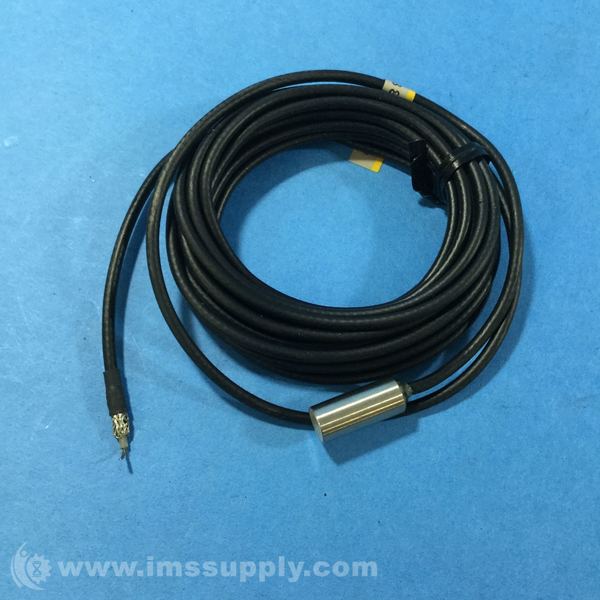

Omron E2CY-C2A Non-Ferrous Proximity Sensor
Non-ferrous-metal-detecting proximity sensor with separate amplifier type, shielded design, 8 dia. sensing head size, and 2 mm sensing distance. Connection is via 3 m pre-wired cable. The sensing surface is made of heat-resistant ABS resin, and the case is constructed from stainless steel.
Specifications
- type: Cylinder type Sensor Head, Shielded
- sensing distance: 2 mm
- sensing object: Non-ferrous metal
- standard sensing object: Aluminum 8 x 8 x 1 mm
- response frequency: Amplifier Unit in FINE mode: 40 Hz, Amplifier Unit in NORM mode: 100 Hz
- ambient temperature (operating): -10 to 55 degrees Celsius
- ambient temperature (storage): -25 to 70 degrees Celsius
- ambient humidity (operating): 35 to 95 %
- ambient humidity (storage): 35 to 95 %
- temperature influence: ±10% max. of sensing distance at 23 degrees Celsius
- vibration resistance: Destruction: 10 to 500 Hz, 2 mm double amplitude or 150 m/s2 each in X, Y, and Z directions for 2 h
- shock resistance: Destruction: 500 m/s2 3 times each in X, Y and Z directions
- degree of protection: IEC: IP67
- connection method: Pre-wired models (3 m)
- material: Case: Stainless steel, Sensing surface: Heat-resistant ABS resin, Cable: PVC
- amplifier unit/sensor head of combination: E2CY-SD11
- series: E2C
- sensor type: Inductive
- output type: Requires Amplifier
- shielding: Shielded
- termination style: Cable Leads
- operating temperature: -10 to 55 degrees Celsius
- ingress protection: IP67
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
