OMRON E2E-X3D2-M1G PROXIMITY SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: E2E-X3D2-M1G
IMS Product Code: 1938259
Packaging: Sold Individually
Description:

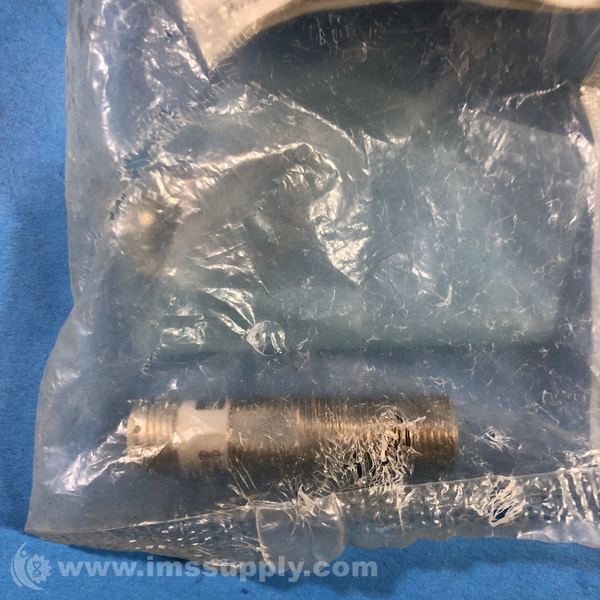

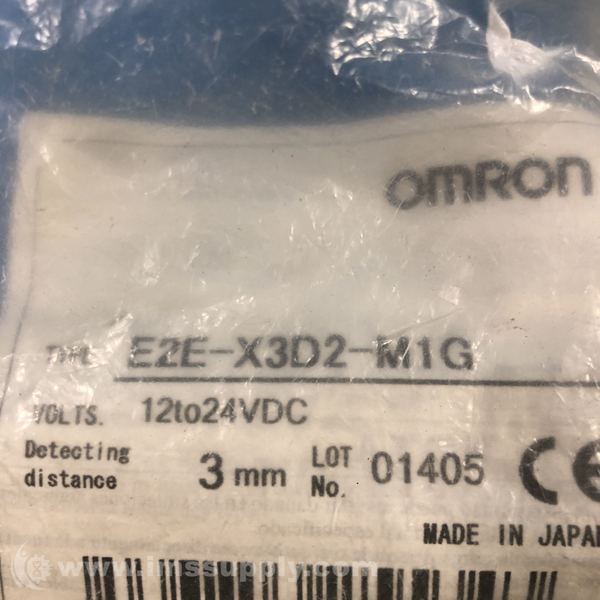

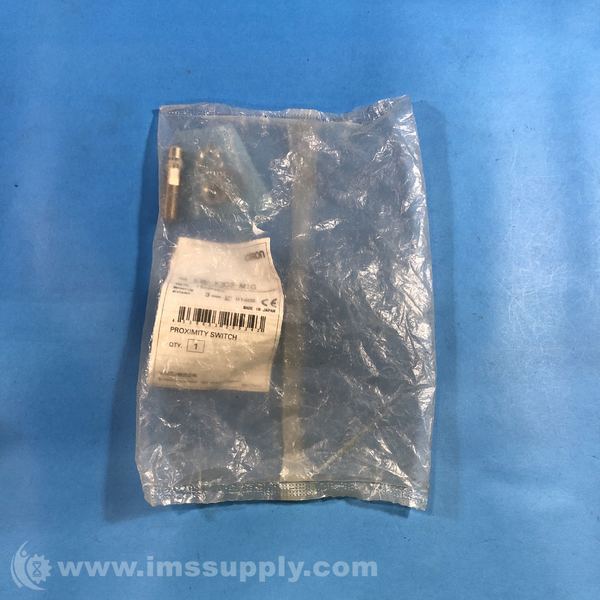

Omron E2E-X3D2-M1G Proximity Sensor
Cylindrical proximity sensor for detecting ferrous material.
Specifications
- Series: E2E DC 2-wire
- Mounting Style: Cylindrical Threaded
- Diameter/Size: M12
- Material: Metal
- Housing Material Details: Nickel-plated brass, PBT face
- Sensing Direction: End Sensing
- Max Operation Distance: 3.0mm
- Hysteresis: <10%
- Response Frequency: 1 kHz
- Output Type: DC 2-wire
- Output Details: NC
- Connection Type: Quick Disconnect
- Connection Details: M12 4P QD
- Protection: IP67
- Temperature Range: -25 to 70 degrees C
- Sensing Distance: 3mm
- Sensing Method: Shielded
- Output Configuration: NPN
- Connection: M12 Connector
- Body Material: Metal
- Operating Voltage: 12-24VDC
- Current Consumption: <10mA
- Dimensions: M12 x 64mm
- Weight: approx. 45g
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 3 In Stock
