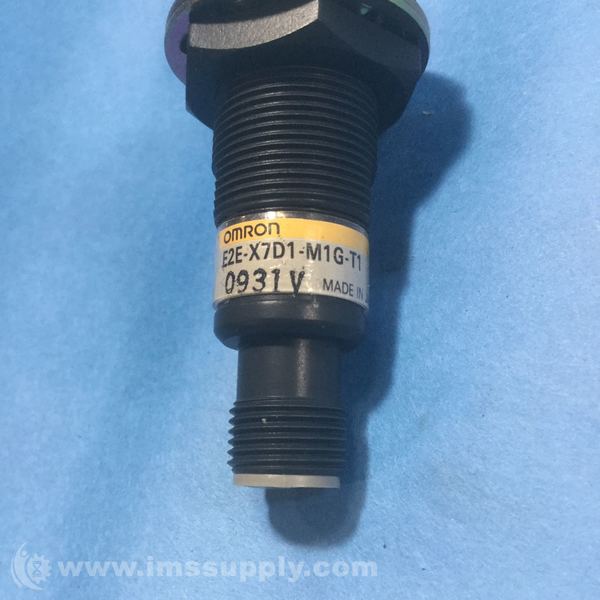

OMRON E2E-X7D1-M1G-T1 PROXIMITY SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: E2E-X7D1-M1G-T1
IMS Product Code: 1809856
Packaging: Sold Individually
Description:
Omron E2E-X7D1-M1G-T1 Proximity Sensor
Specifications:
- Sensing distance: 7 mm ±10%
- Setting distance: 0 to 5.6 mm
- Differential distance: 10% max. of sensing distance
- Sensing object: Ferrous metal (Sensitivity lowers with non-ferrous metals.)
- Standard sensing object: Iron 18 x 18 x 1 mm
- Response frequency: 0.5 kHz
- Power source: DC 2-wire models
- Power supply voltage: 12 to 24 VDC (ripple (p-p) 10% max.)
- Operating voltage range: 10 to 30 VDC
- Used as UL-certified Models: 12 to 24 VDC
- Leakage current: 0.8 mA max.
- Control output (Switching capacity): 3 to 100 mA
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 11 hours and 47 minutes.
