OMRON E2FQ-X10D1 PROXIMITY SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: E2FQ-X10D1
IMS Product Code: 1787526
Packaging: Sold Individually
Description:

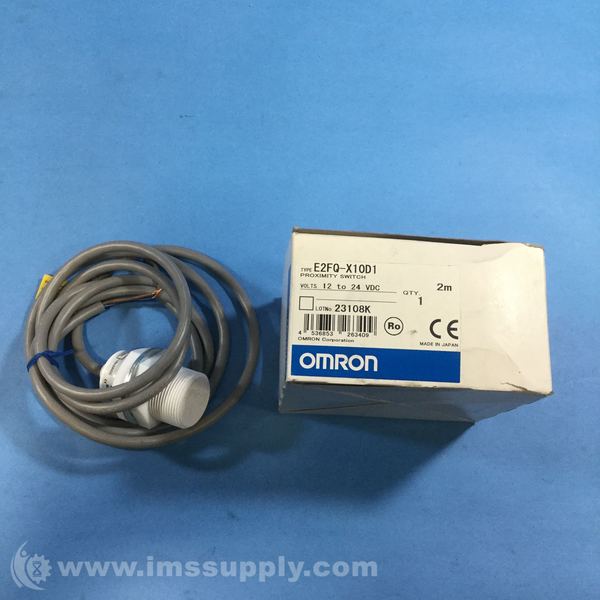

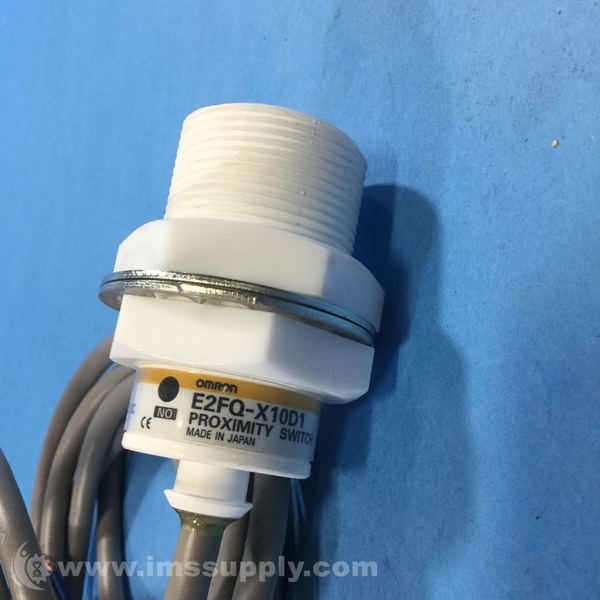

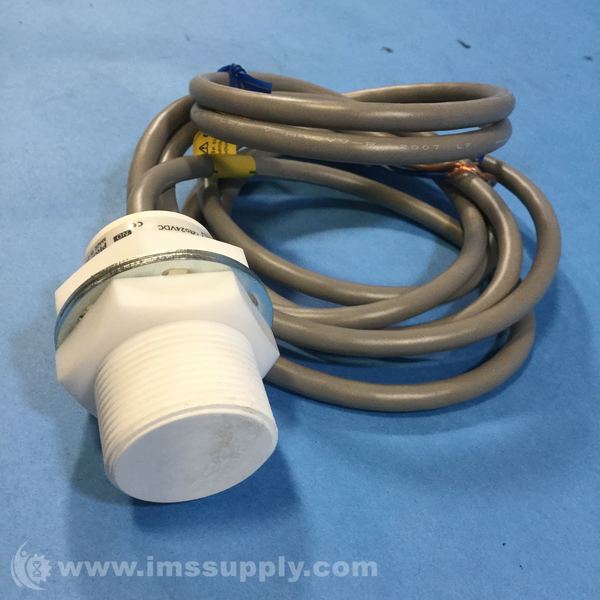

Omron E2FQ-X10D1 Proximity Sensor
Chemical-resistant inductive proximity sensor with Fluoro plastic housing
Specifications
- Detection distance: 10mm�10%
- Set distance: 0 to 8 mm
- Hysteresis: 20% or less of the detection distance
- Detectable Objects: Magnetic metals (non-magnetic metals will reduce the detection distance)
- Standard detection object: Iron 30�30�1mm
- Response Frequency*: 300Hz
- Power supply voltage (operating voltage range): 12 to 24 V DC, ripple (pp) 20% or less (10 to 36 V DC)
- Leakage current: 0.8mA or less
- Control Output: 5 to 100mA
- Residual voltage: 3V or less (load current 100mA, cord length 2m)
- Indicator Light: Operation display (red), setting display (green)
- Operation mode: NO
- Protection Circuit: Surge absorption
- Ambient Temperature Range: -25 to +70 degrees C
- Ambient Humidity Range: 35 to 95% RH
- Temperature effects: Within �10%
- Voltage effect: Within �2.5% or less at the rated power supply voltage
- Insulation resistance: 50MO or more (DC500V megger)
- Withstand voltage: AC1,000V 50/60Hz 1min
- Vibration (durability): 10 to 55Hz, double amplitude 1.5mm
- Impact (durability): 500m/s^2 10 times each in X, Y, and Z directions
- Protective structure: IEC standard IP67
- Connection method: Cord pull-out type (standard cord length 2m)
- Material: Fluorine resin
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):
Missing Nut
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
