OMRON E2FQ-X2D1 CHEMICAL-RESISTANT PROXIMITY SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: E2FQ-X2D1
IMS Product Code: 1825460
Packaging: Sold Individually
Description:

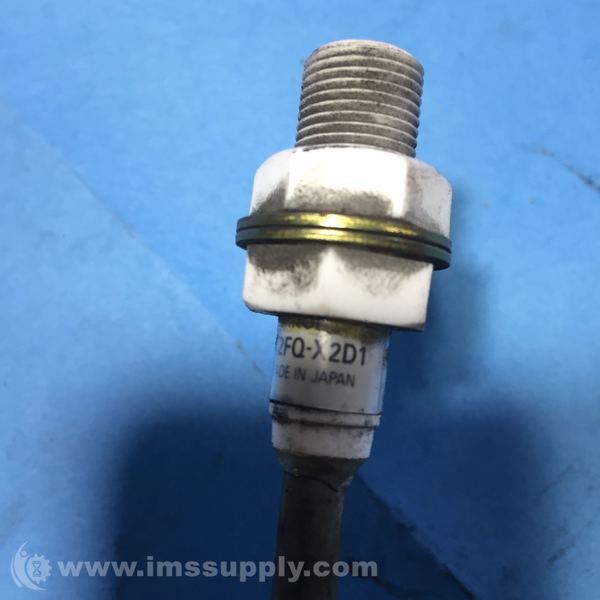

Omron E2FQ-X2D1 Chemical-Resistant Proximity Sensor

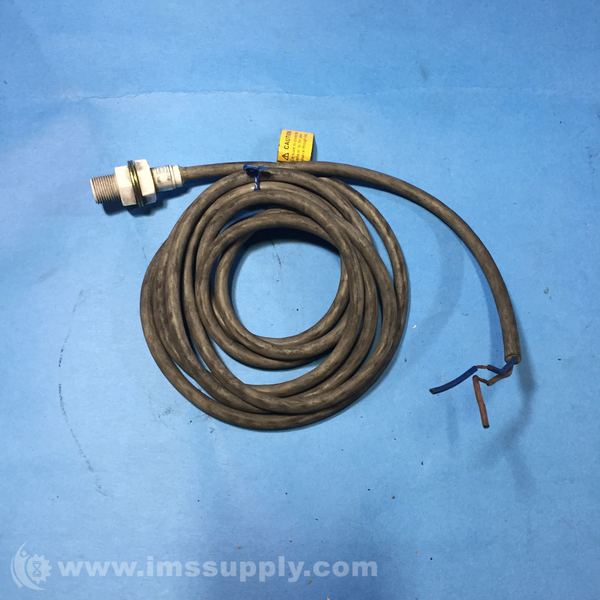

Chemical-resistant proximity sensor with shielded M12 design, 2 mm sensing distance, DC 2-wire NO output, pre-wired with 2 m cable.
Specifications
- Sensing head size: M12
- Type: Cylinder type (with screw), Shielded
- Power source: DC 2-wire models
- Sensing distance: 2 mm ±10%
- Setting distance: 0 to 1.6 mm
- Differential distance: 20% max. of sensing distance
- Sensing object: Ferrous metal (Sensitivity lowers with non-ferrous metals.)
- Standard sensing object: Iron 12 x 12 x 1 mm
- Response frequency: 800 Hz (Average value)
- Power supply voltage: 12 to 24 VDC ripple (p-p) 20% max.
- Operating voltage range: 10 to 36 VDC
- Leakage current: 0.8 mA max.
- Control output (Switching capacity): 5 to 100 mA
- Control output (Residual voltage): 3 V max. (Load current 100 mA max. with cable length of 2 m)
- Indicator: Operation indicator (red), Operation setting indicator (green)
- Operation mode: NO
- Polarity: Polarity
- Protective circuit: Surge suppressor
- Ambient temperature (Operating): -25 to 70 degrees C
- Ambient temperature (Storage): -25 to 70 degrees C
- Ambient humidity (Operating): 35 to 95 %
- Ambient humidity (Storage): 35 to 95 %
- Temperature influence: ±10% max. of sensing distance at 23 degrees C in the temperature range of -25 to 70 degrees C
- Voltage influence: ±2.5% max. of sensing distance at rated voltage in the rated voltage ±20% range
- Insulation resistance: Between charged parts and the case: 50 MO min. at 500 VDC
- Dielectric strength: Between charged parts and the case: 1,000 VAC 50/60 Hz 1 min
- Vibration resistance: Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
- Shock resistance: Destruction: 500 m/s2 10 times each in X, Y, and Z directions
- Degree of protection: IEC: IP67, Company standard: Oil-proof
- Connection method: Pre-wired models (2 m)
- Material: Case: Fluoride resin, Sensing surface: Fluoride resin, Clamping nuts: Fluoride resin, Toothed washers: Iron zinc plating
- Cable Specs.: Vinyl (PVC)-insulated round cord, f6, 2-core
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
Ships today if ordered in the next 5 hours and 53 minutes.
