OMRON E2FQ-X5D1 PROXIMITY SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: E2FQ-X5D1
IMS Product Code: 2103144
Packaging: Sold Individually
Description:

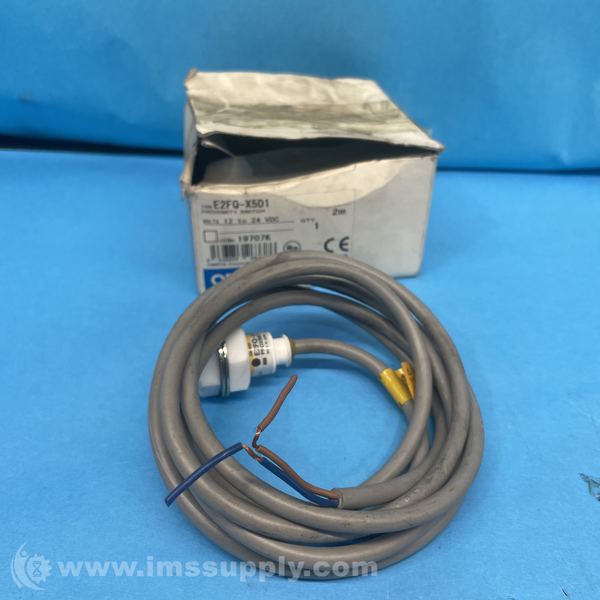

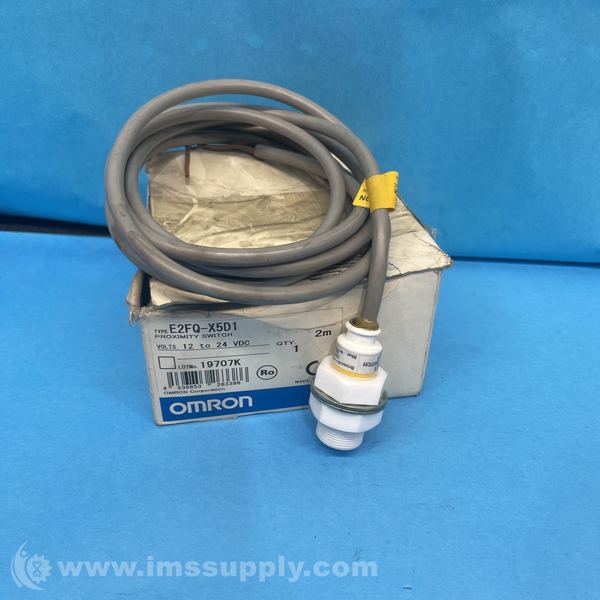

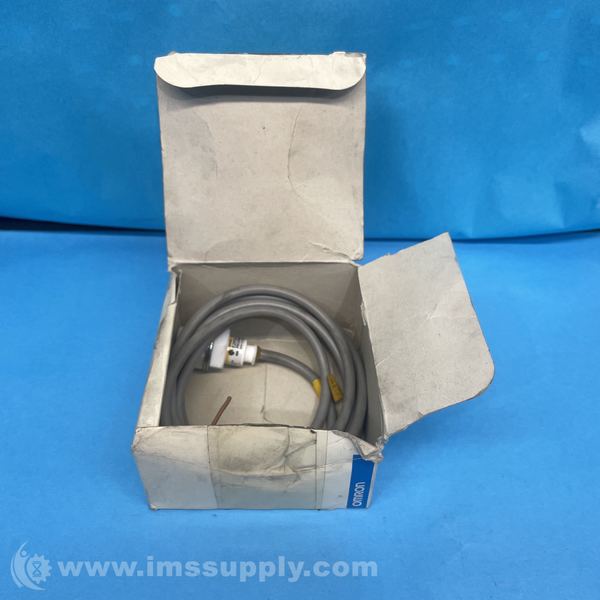

Omron E2FQ-X5D1 Proximity Sensor
Chemical-resistant Proximity Sensor, Shielded, M18, Sensing distance: 5 mm, DC 2-wire, NO, Pre-wired model, 2 m
Specifications
- Type: Cylinder type (with screw), Shielded
- Sensing Distance: 5 mm ±10%
- Power Supply Voltage: 12 to 24 VDC ripple (p-p) 20% max.
- Operating Voltage Range: 10 to 36 VDC
- Leakage Current: 0.8 mA max.
- Control Output (Switching Capacity): 5 to 100 mA
- Control Output (Residual Voltage): 3 V max. (Load current 100 mA max. with cable length of 2 m)
- Indicator: Operation indicator (red), Operation setting indicator (green)
- Operation Mode: NO
- Ambient Temperature (Operating): -25 to 70 degrees C
- Ambient Humidity (Operating): 35 to 95 %
- Degree of Protection: IEC: IP67, Company standard: Oil-proof
- Connection Method: Pre-wired models (2 m)
- Material: Case: Fluoride resin, Sensing surface: Fluoride resin, Clamping nuts: Fluoride resin, Toothed washers: Iron zinc plating
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 9 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
