OMRON E2K-C25ME1 CAPACITIVE PROXIMITY SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: E2K-C25ME1
IMS Product Code: 1779785
Variation: Unspecified
Unspecified
Length: 5 m
Packaging: Sold Individually
Description:

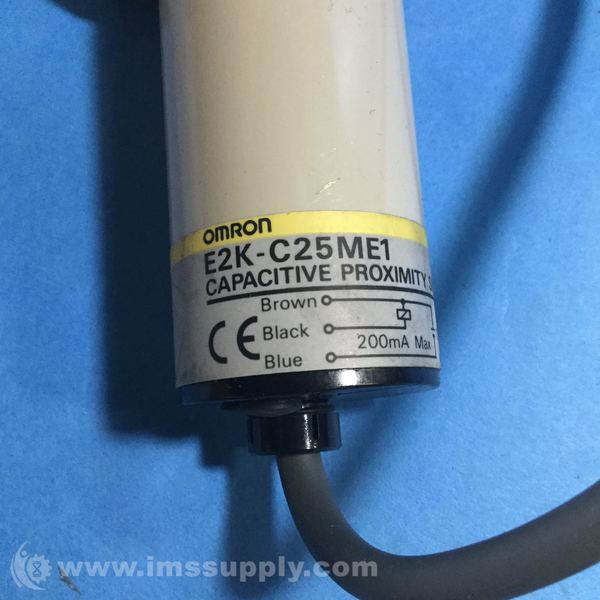

Omron E2K-C25ME1 Capacitive Proximity Switch
DC 3-wire capacitive proximity sensor with NPN output, 25 mm sensing distance, unshielded, pre-wired model.
Specifications
- Sensor Type: Capacitive Proximity Sensor
- Sensing Distance: 25 mm
- Setting Distance: 3 to 25 mm
- Output Type: NPN-NO
- Supply Voltage: 12 to 24 VDC
- Operating Voltage Range: 10 to 30 VDC
- Switching Capacity: 200 mA max.
- Response Frequency: 70 Hz
- Ambient Temperature: -25 to 70 degrees C
- Degree of Protection: IP66
- Material: ABS resin

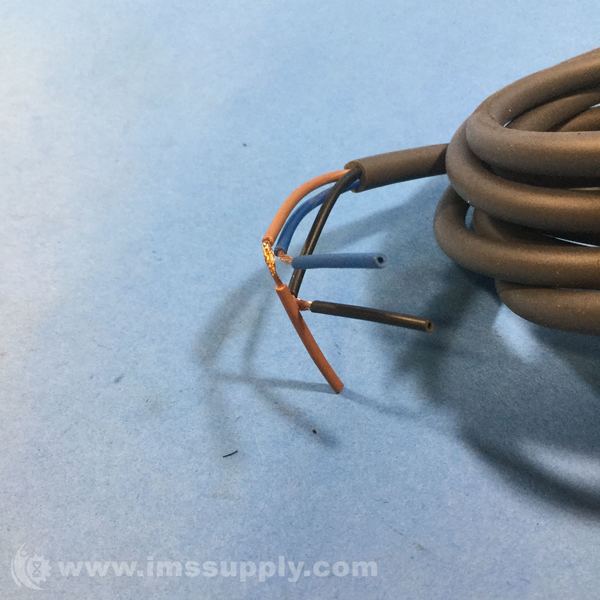

- Connection Method: Pre-wired (2 m)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 1 hours and 27 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
Ships today if ordered in the next 27 minutes.
