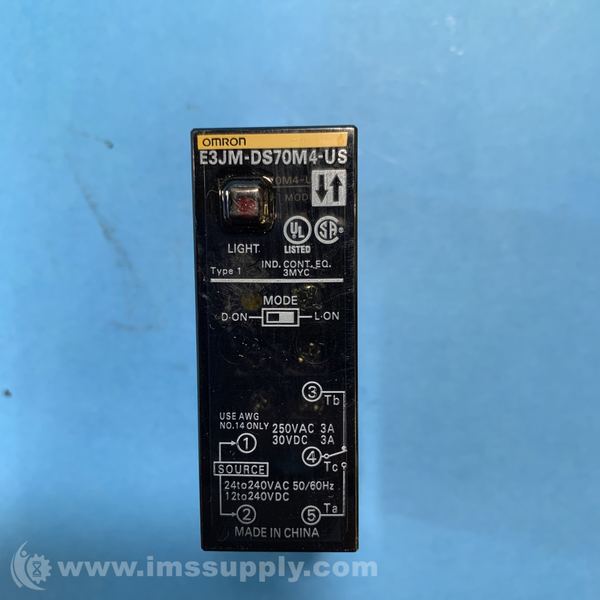

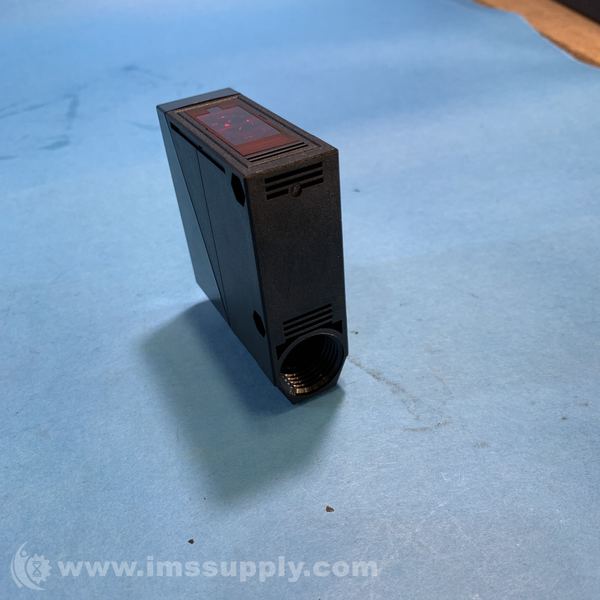

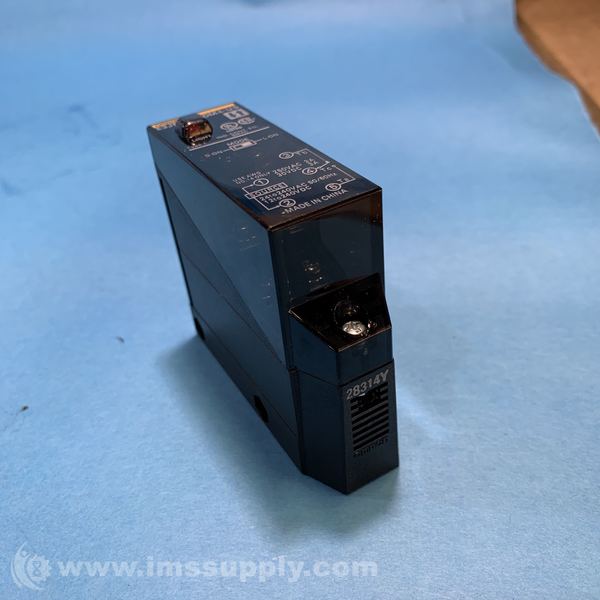

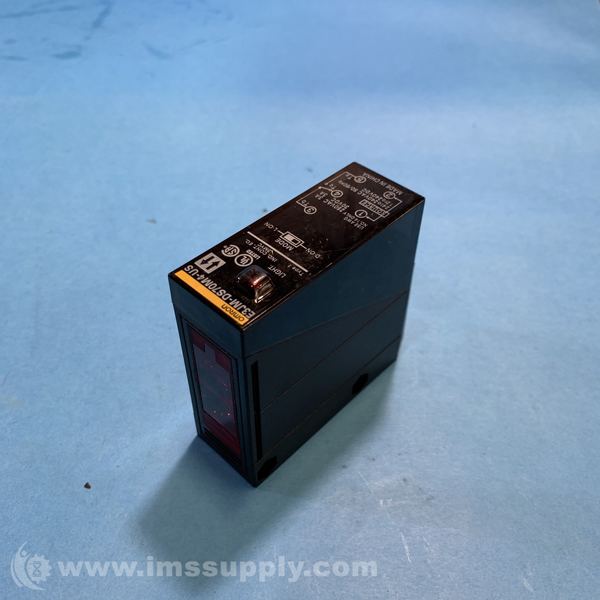

OMRON E3JM-DS70M4-US DIFFUSE PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: E3JM-DS70M4-US
IMS Product Code: 1856292
Packaging: Sold Individually
Description:
Omron E3JM-DS70M4-US Diffuse Photoelectric Sensor
Built-in Power Supply Photoelectric Sensor
Specifications
- Sensing method: Diffuse-reflective
- Sensing distance: White paper 200 x 200 mm: 700 mm
- Light source: Infrared LED (940 nm)
- Connection method: Terminal block models
- Shape: Square type
- Differential distance: 20% max. of sensing distance
- Power supply voltage: 100 to 240 VAC±10% 50/60 Hz, 24 to 240 VDC±10% ripple (p-p) 10% max.
- Power consumption: 2 W max.
- Control output: Relay output (SPDT), 250 VAC 3 A (cosf= 1) max., 5 VDC 10 mA min.
- Life expectancy (relay output): Electrical: 100 thousand times or more (switching frequency 1800 times/hour), Mechanical: 50 million times or more (switching frequency 18000 times/hour)
- Operation mode: Light-ON/Dark-ON selectable
- Response time: Operate or reset: 30 ms max.
- Sensitivity setting: Single-turn adjustment
- Ambient illuminance: Incandescent lamp: 3,000 lx max.
- Ambient temperature range (Operating): -25 to 55 ? (with no freezing or condensation)
- Ambient temperature range (Storage): -30 to 70 ? (with no freezing or condensation)
- Ambient humidity range (Operating): 45 to 85 % (with no condensation)
- Ambient humidity range (Storage): 35 to 95 % (with no condensation)
- Insulation resistance: 20 MO min. (500 VDC megger)
- Dielectric strength: 2000 VAC 50/60 Hz 1 min
- Vibration resistance: Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h, Malfunction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
- Shock resistance: Destruction: 500 m/s2 3 times each in X, Y and Z directions, Malfunction: 100 m/s2 3 times each in X, Y and Z directions
- Degree of protection: IEC: IP66
- Indicator: Light indicator (red)
- Material: Case: ABS, Lens: Methacrylate resin, Cover: Polycarbonate, Mounting Bracket: Iron
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
