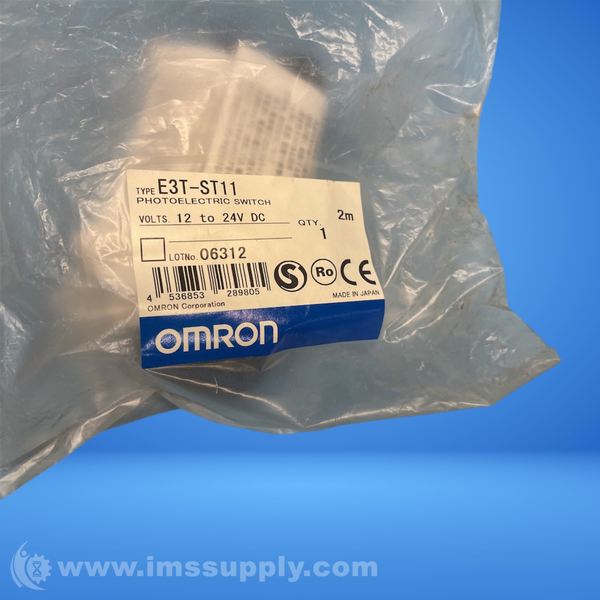

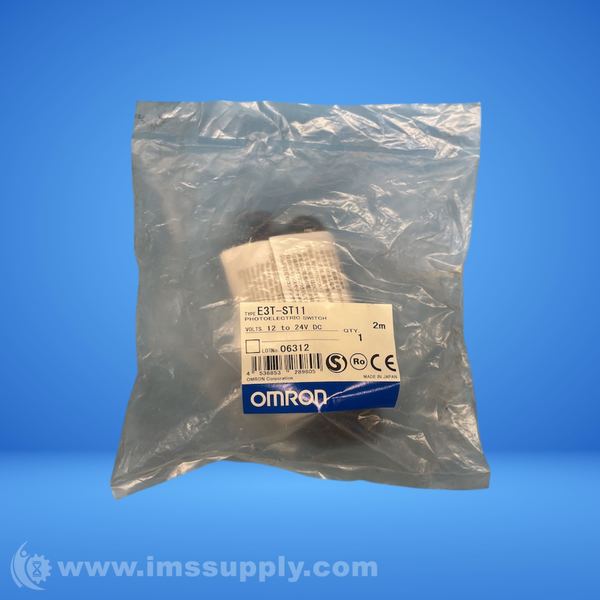

OMRON E3T-ST11 PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: E3T-ST11
IMS Product Code: 2120868
Variation: Unspecified
Unspecified
Length: 2 m
Packaging: Sold Individually
Description:
Omron E3T-ST11 Photoelectric Sensor
Through-beam type photoelectric sensor with built-in amplifier, 1m sensing distance, NPN output, and 12-24VDC power supply.
Specifications
- Shape: Square type
- Sensing method: Through-beam type
- Sensing distance: 1 m max.
- Standard sensing object: Opaque: 2 mm dia. min.
- Minimum sensing object: 2 mm min. dia. (Opaque)
- Directional angle: 2 to 20 degrees
- Light source: Red LED (650 nm)
- Power supply voltage: 12 to 24 VDC ±10% ripple (p-p) 10% max.
- Current consumption: Emitter: 10 mA max., Receiver: 20 mA max.
- Control output: NPN open collector, 26.4 VDC max., Load current: 50 mA max., Residual voltage: 1 V max. (Load current Less than 10 mA), 2 V max. (Load current 10 to 50 mA)
- Operation mode: Light-ON
- Response time: 1 ms max.(Operate or reset)
- Ambient illuminance: Incandescent lamp: 5000 lux max., Sunlight: 10000 lux max.
- Ambient temperature: Operating: -25 to 55?, Storage: -40 to 70?
- Ambient humidity: Operating: 35 to 85%, Storage: 35 to 95%
- Insulation resistance: 20 MO min. (at 500 VDC)
- Dielectric strength: 1000 VAC 50/60 Hz 1 min
- Vibration resistance: Destruction: 10 to 2000 Hz, 1.5-mm or 300 m/s**2 double amplitude for 0.5 hours each in X, Y, and Z directions
- Shock resistance: Destruction: 1000 m/s**2 3 times each in X, Y and Z directions
- Degree of protection: IEC: IP67
- Connection method: Pre-wired models (Cable length: 2 m)
- Indicator: Operation indicator (orange), Stability indicator (green)
- Material: Case: Polybutylene terephthalate (PBT), Lens: Denatured Polyarylate, Display: Denatured Polyarylate
