OMRON E3T-ST14 PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: E3T-ST14
IMS Product Code: 1873542
Packaging: Sold Individually
Description:

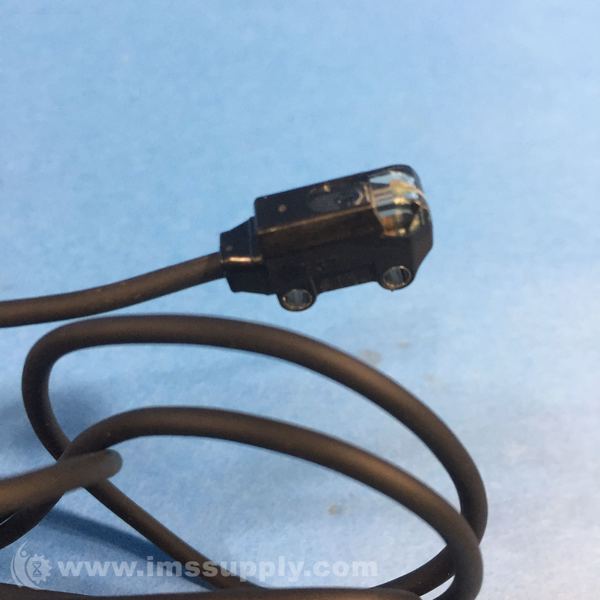

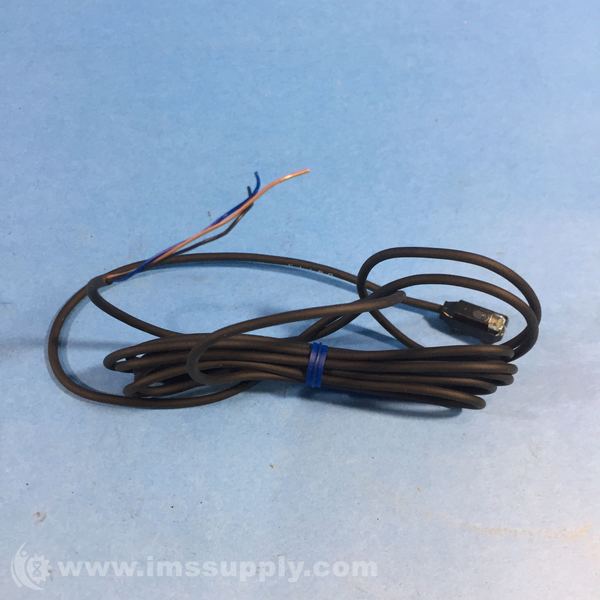

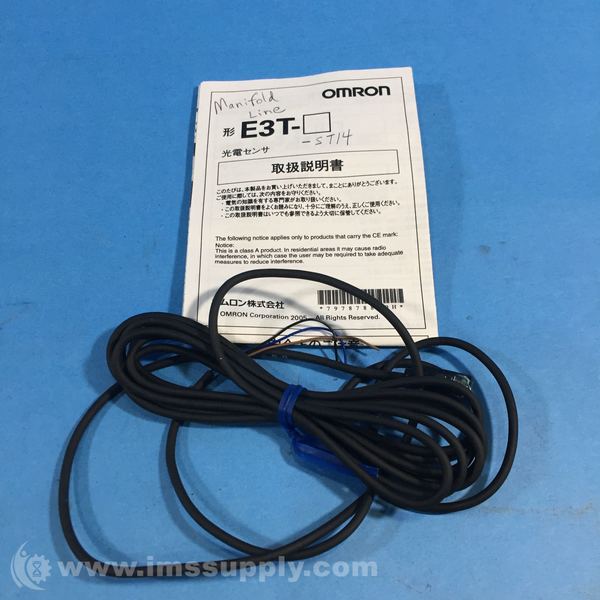

Omron E3T-ST14 Photoelectric Sensor
Ultracompact, Ultrathin Photoelectric Sensor with Built-in Amplifier
Specifications
- Sensing method: Through-beam type
- Sensing distance: 1 m
- Light source: Red LED (650 nm)
- Connection method: Pre-wired models
- Shape: Square type
- Standard sensing object: Opaque, 2 mm dia. min.
- Minimum sensing object: 2 mm min. dia. (Opaque)
- Directional angle: Emitter: 2 to 20 degrees Receiver: 2 to 70 degrees
- Power supply voltage: 12 to 24 VDC±10% ripple (p-p) 10% max.
- Current consumption: Emitter: 10 mA max. Receiver: 20 mA max.
- Control output: PNP open collector 26.4 VDC max. 50 mA max. Residual voltage: 1 V max. (Load current Less than 10 mA) Residual voltage: 2 V max. (Load current 10 to 50 mA)
- Operation mode: Dark-ON
- Protective circuit: Output short-cut protection, Output reverse polarity protection, Power supply reverse polarity protection
- Response time: Operate or reset: 1 ms max.
- Ambient illuminance: Incandescent lamp: 5,000 lx max. Sunlight: 10,000 lx max.
- Ambient temperature range (Operating): -25 to 55 degrees Celsius (with no freezing or condensation)
- Ambient temperature range (Storage): -40 to 70 degrees Celsius (with no freezing or condensation)
- Ambient humidity range (Operating): 35 to 85 % (with no condensation)
- Ambient humidity range (Storage): 35 to 95 % (with no condensation)
- Insulation resistance: 20 MO min. (500 VDC megger)
- Dielectric strength: 1000 VAC 50/60 Hz 1 min
- Vibration resistance: Destruction: 10 to 2000 Hz, 1.5 mm or 300 m/s2 double amplitude for 0.5 hours each in X, Y, and Z directions
- Shock resistance: Destruction: 1000 m/s2 3 times each in X, Y and Z directions
- Indicator: Operation indicator (orange), Stability indicator (green)
- Material: Case: Polybutylene terephthalate (PBT) Lens: Denatured Polyarylate Display: Denatured Polyarylate
- Cable Length: 2m
- IP rating: IP67
- Body dimensions: 9.5x7x18.5mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
