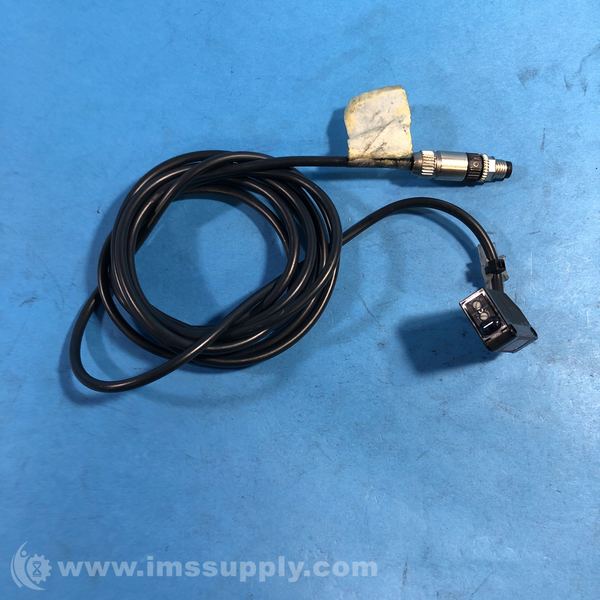

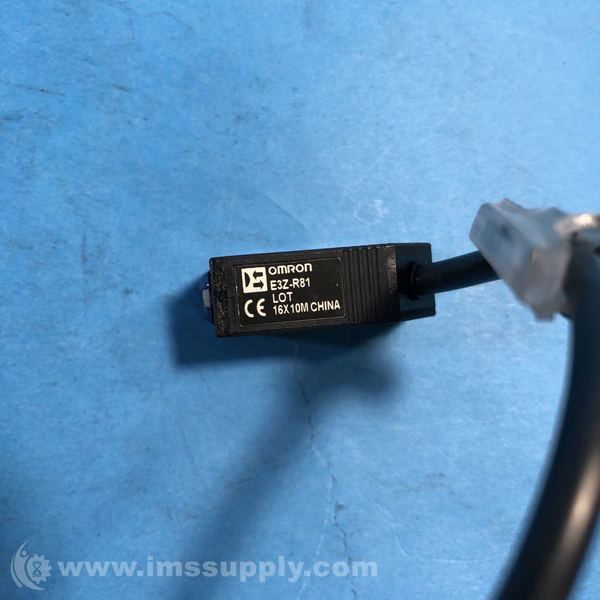

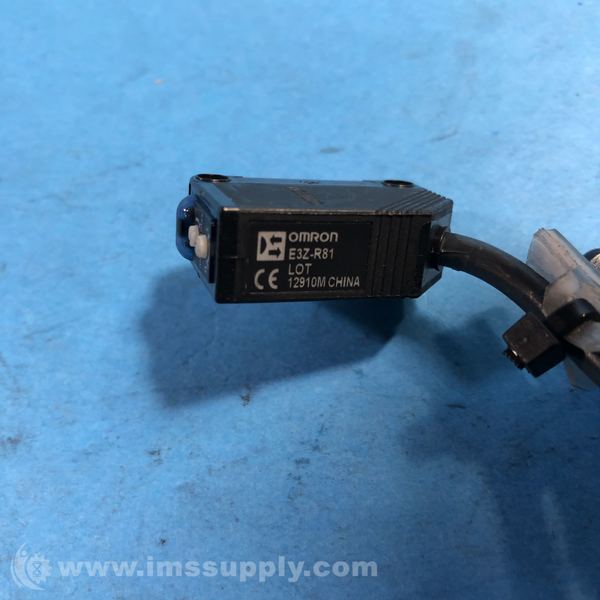

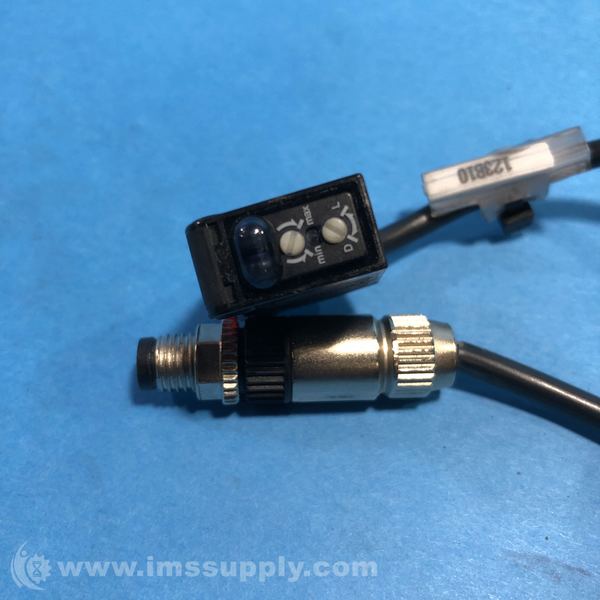

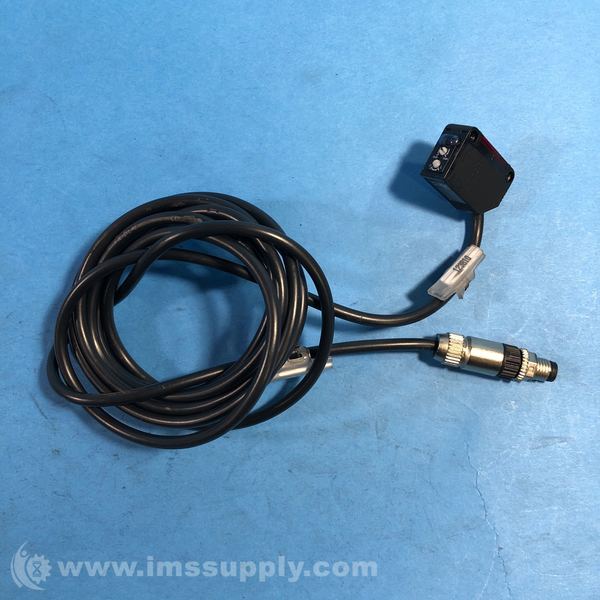

OMRON E3Z-R81 PHOTOELECTRIC SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: E3Z-R81
IMS Product Code: 1904135
Packaging: Sold Individually
Description:
Omron E3Z-R81 Photoelectric Sensor
Compact Photoelectric Sensor with Built-in Amplifier, Square type, Sensing distance: 100 mm to 4 m (when using the E39-R1S), PNP open collector, Pre-wired model, 2 m
Specifications
- Sensing method: Retro-reflective with M.S.R. function
- Sensing distance: When using the E39-R1S: 100 mm to 4 m, When using the E39-R1: 100 mm to 3 m
- Light source: Red LED (660 nm)
- Connection method: Pre-wired models
- Shape: Square type
- Standard sensing object: Opaque: 75 mm dia. min.
- Directional angle: 2 to 10 degrees
- Power supply voltage: 12 to 24 VDC±10% ripple (p-p) 10% max.
- Current consumption: 30 mA max.
- Control output: PNP open collector, 26.4 VDC max., 100 mA max., Residual voltage: 1 V max. (Load current Less than 10 mA), Residual voltage: 2 V max. (Load current 10 to 100 mA)
- Operation mode: Light-ON/Dark-ON selectable
- Protective circuit: Output short-circuit protection, Output reverse polarity protection, Power supply reverse polarity protection
- Response time: Operate or reset: 1 ms max.
- Sensitivity setting: Single-turn adjustment
- Ambient illuminance: Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max.
- Ambient temperature range (Operating): -25 to 55 degrees C (with no icing)
- Ambient temperature range (Storage): -40 to 70 degrees C (with no freezing or condensation)
- Ambient humidity range (Operating): 35 to 85 % (with no condensation)
- Ambient humidity range (Storage): 35 to 95 % (with no condensation)
- Insulation resistance: 20 MO min. (500 VDC megger)
- Dielectric strength: 1000 VAC 50/60 Hz 1 min
- Vibration resistance: Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 h
- Shock resistance: Destruction: 500 m/s2 3 times each in X, Y and Z directions
- Degree of protection: IEC: IP67
- Indicator: Operation indicator (orange), Stability indicator (green)
- Material: Case: Polybutylene terephthalate (PBT), Lens: Methacrylate resin

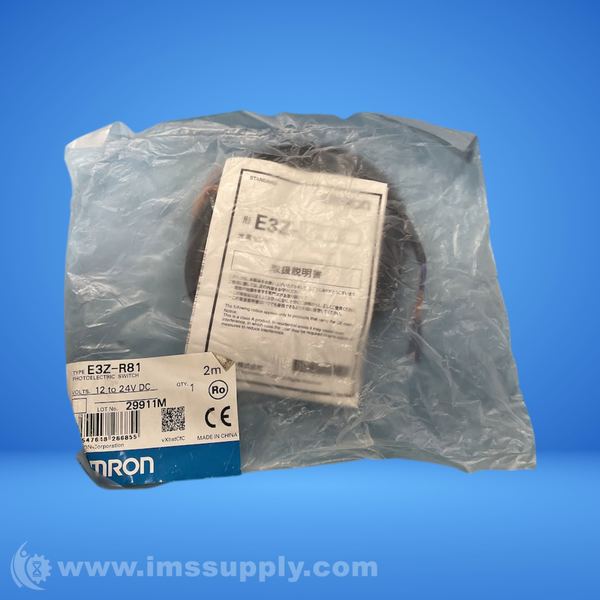

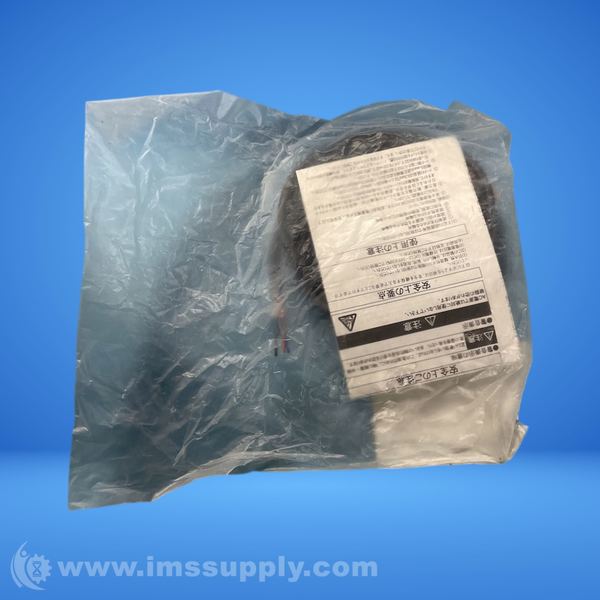

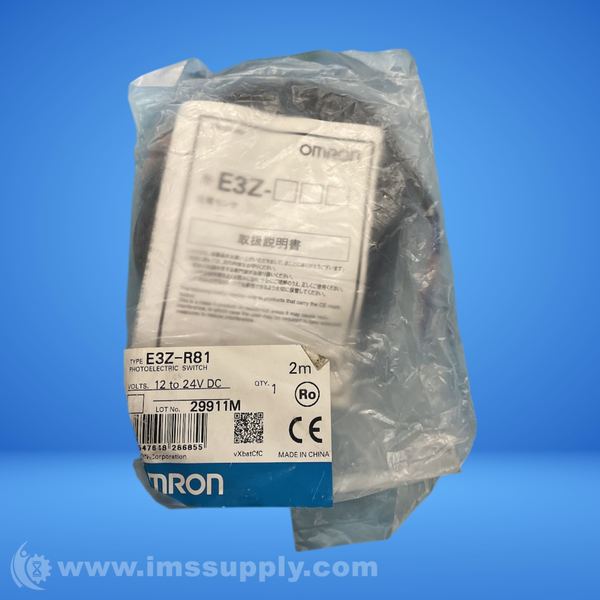

New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 36 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 8 In Stock
Ships today if ordered in the next 3 hours and 36 minutes.
