OMRON E6C2-CWZ6C ROTARY ENCODER
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: E6C2-CWZ6C
IMS Product Code: 1788919
Packaging: Sold Individually
Description:

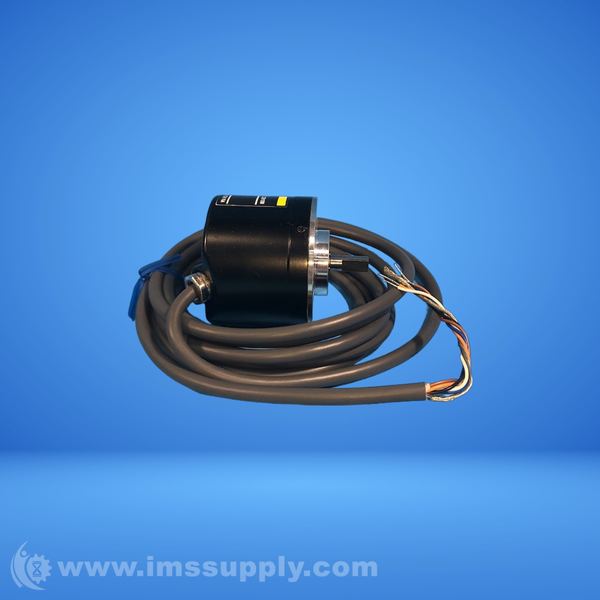

Omron E6C2-CWZ6C Rotary Encoder
Slim Incremental 50-mm-dia. Rotary Encoder
Specifications
- Encoding method: Incremental
- Resolution: 1000 P/R
- Output phases: A, B and Z
- Control output: NPN open collector
- Connection method: Pre-wired models (Cable length: 2 m)
- Diameter: 50 mm dia.
- Power supply voltage: 5 to 24 VDC (-5% to +15%)
- Current consumption: 80 mA max.
- Inrush current: Approx. 9 A (0.3 ms)
- Load power supply voltage: 30 V max.DC
- Sink current: 35 mA max.
- Residual voltage: 0.4 V max. (at sink current 35 mA)
- Starting positional point: Equipped
- Max. response frequency: 100 kHz
- Phase difference on output: 90±45 ° between A and B (1/4 T ± 1/8 T)
- Rise and fall times of output: 1 µs max. (Cable length: 2 m, output voltage: 5 V, load resistance: 1 kO)
- Starting torque: 10 mN.m max.
- Moment of inertia: 1 x 10-6 kg.m2 max.
- Shaft loading: Radial: 50 N, Thrust: 30 N
- Max. permissible rotation: 6000 r/min
- Protective circuit: Output short-cut protection, Power supply reverse polarity protection
- Ambient temperature: Operating: -10 to 70 ? (with no icing), Storage: -25 to 85 ? (with no icing)
- Ambient humidity: Operating: 35 to 85 % (with no condensation), Storage: 35 to 85 % (with no condensation)
- Insulation resistance: Between charged parts and the case: 100 MO min. (at 500 VDC)
- Dielectric strength: Between charged parts and the case: 500 VAC 50/60 Hz 1 min
- Vibration resistance: Destruction: 10 to 500 Hz, 2-mm or 150 m/s2 double amplitude for 11 min 3 times each in X, Y, and Z directions
- Shock resistance: Destruction: 1000 m/s2 for 3 times each in X, Y, and Z directions
- Degree of protection: IEC: IP64, Company standard: Oil resistance
- Material: Case: Zinc alloy, Main Unit: Aluminum, Shaft: SUS420J2
- Weight: Package: Approx. 400 g
