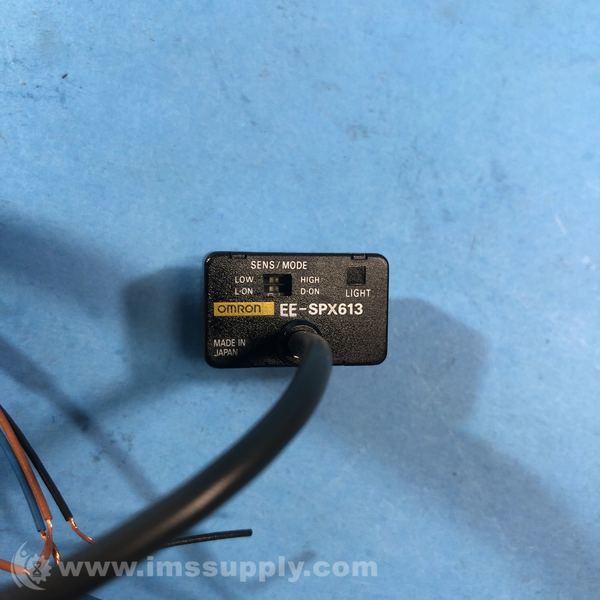

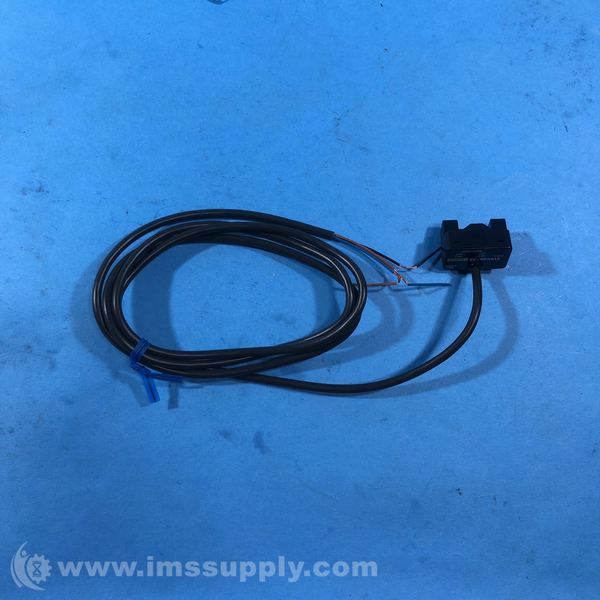

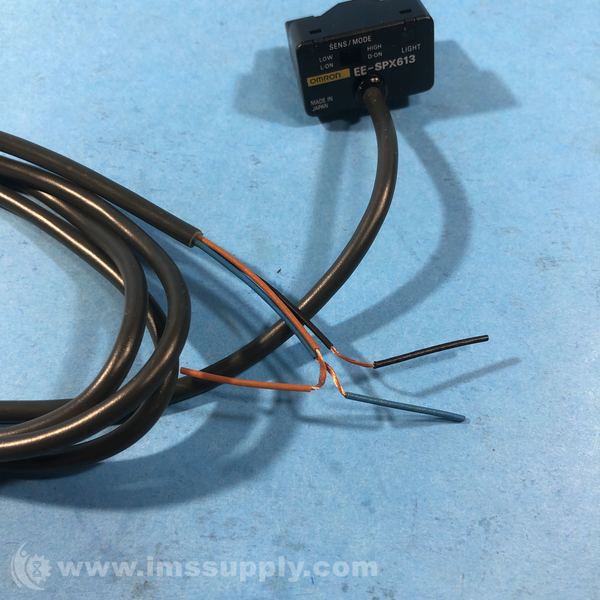

OMRON EE-SPX613 LIQUID LEVEL PHOTOELECTRIC MICRO SENSOR
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: EE-SPX613
IMS Product Code: 1984268
Packaging: Sold Individually
Description:
Omron EE-SPX613 Liquid Level Photoelectric Micro Sensor
Liquid Level Photomicrosensor for detecting liquids in pipes with operation mode and sensitivity selectors.
Specifications
- Operation Voltage Range: 12 to 24 VDC
- Type: Photomicro Sensor
- Material: PBT
- Weight: 55 g
- Temperature Range: -10 to 55 degrees C
- Sensing Object: Liquids in pipes
- Light Source: GaAs infrared LED with a peak wavelength of 940 nm
- Indicator: Light indicator GaP (Red LED)
- Supply Voltage: 12 to 24 VDC �10%
- Current Consumption: Average: 30 mA max., Peak: 80 mA max.
- Control Output: NPN open collector
- Sensing Distance: 13 mm
- Output Configuration: Dark-ON
- Output Current: 100 mA
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
Ships today if ordered in the next 11 hours and 49 minutes.
